Product presentation


Waterproof Degree: IP68
Metal structure design, anti-vandal

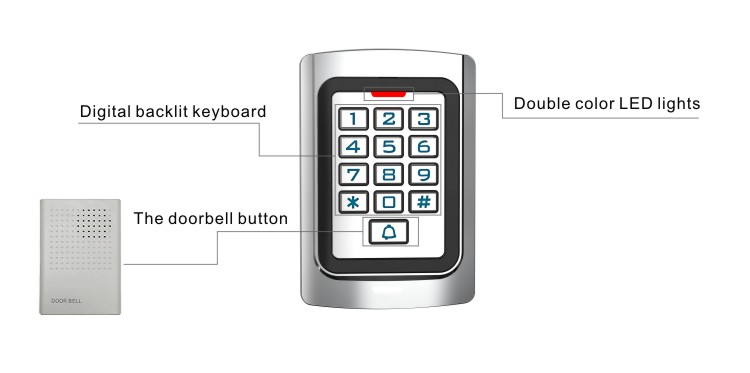

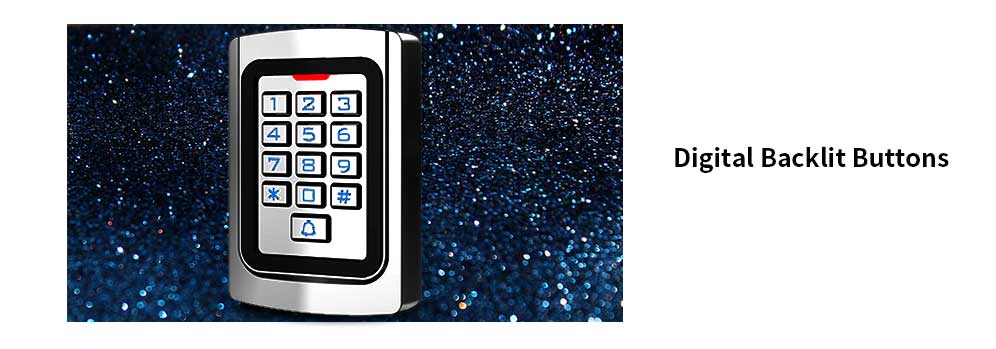

Digital backlit keyboard

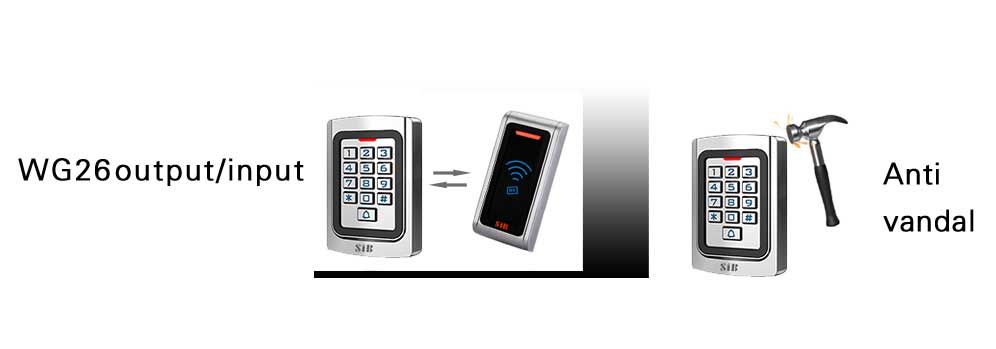

All-in-one, WG26 output/input
User capacity: 2000 card user card, 2000 user password
Three way to open the door, card, password, card + password
The doorbell button and interface: buttons and isolation circuit,

connect to any external bell


Product presentation

















Technical parameters:

Card type:EM/MF                               Waterproof degree:IP68                         Environment Humidity:10%~90%           Lock output:≤1A
Working voltage:DC12V±24V           Static electricity:≤30mA                          Alarm output:≤20A                                  Output short circuit protection time:≤100μS
Card read distance:2-5cm                 Ambient temperature:-40℃~60℃         Door Opening Time: 099s                          Dimension:120 *75*25mm

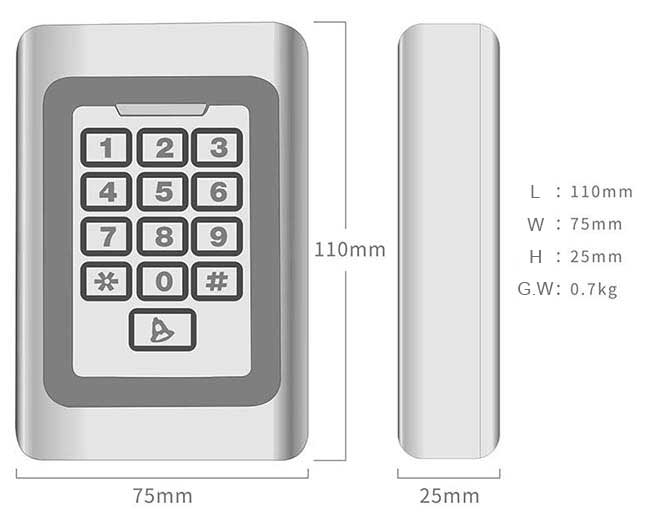

Size & Weight :









Package size:

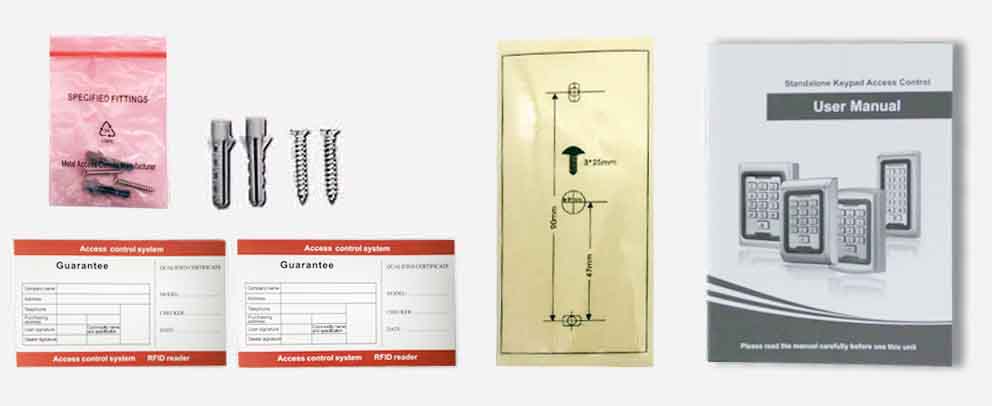

Packing list:





Common power supply diagram






Special power supply diagram
