Product presentation


Metal case, anti-vandal

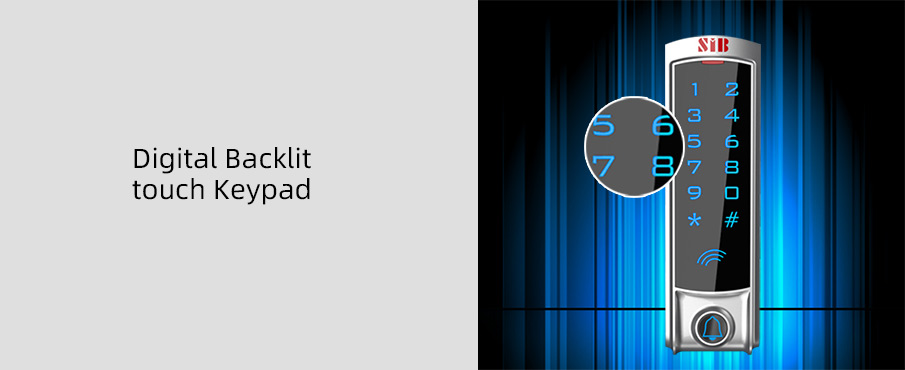

Digital backlit touch keypad
Wigend 26/34 output

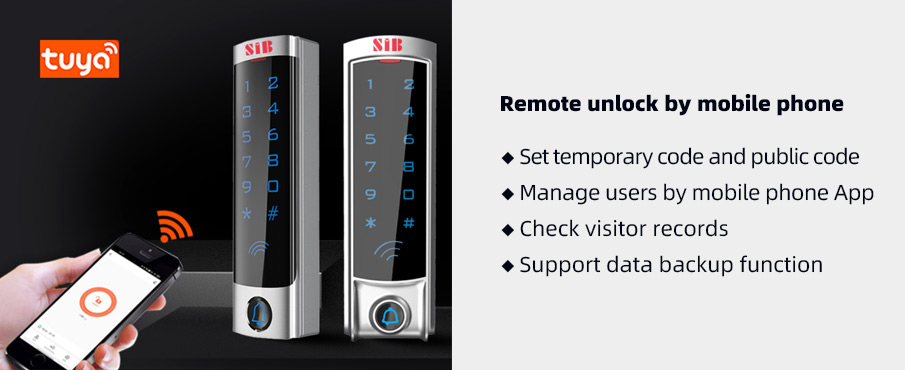

Remote unlock by mobile phone
Set temporary code and public code
Manage users by mobile phone App
Check visitor records
Support outdoor used, waterproof  IP68
Support three modes: standalone/reader/toggle relay
Support data backup function
Support admin add/delete card
Capacity: 2000users
Access ways: Card/Pin/Mobile app(Tuya)

Product Version


Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
T2EM(Wifi)
EM Card 125Khz
Indoor
Metal Touch Keypad Door Entry with Tuya App
SIB
T2MF(Wifi)
MF Card 13.56Mhz
Indoor
Metal Touch Keypad Gate Entry by Tuya App Access
SIB T2EM-W(Wifi)
EM Card 125Khz
Indoor
Metal Touch Panel Tuya Smart Wifi Access Control
SIB T2MF-W(Wifi)
MF Card 13.56Mhz
Indoor
Metal Touch Screen Tuya Smart Wifi Door Lock



Technical parameters


Card type:EM/MF
Static electricity: ≤30mA
Working voltage: DC12V
Ambient temperature: -45 ℃ ~ 60 ℃
Reading Range:3-6cm
Electric lock output: ≤1A
Humidity: 10% to 90% RH
Short-circuit Protect: ≤100μS
Door Opening Time:0-99s(Adjustable)

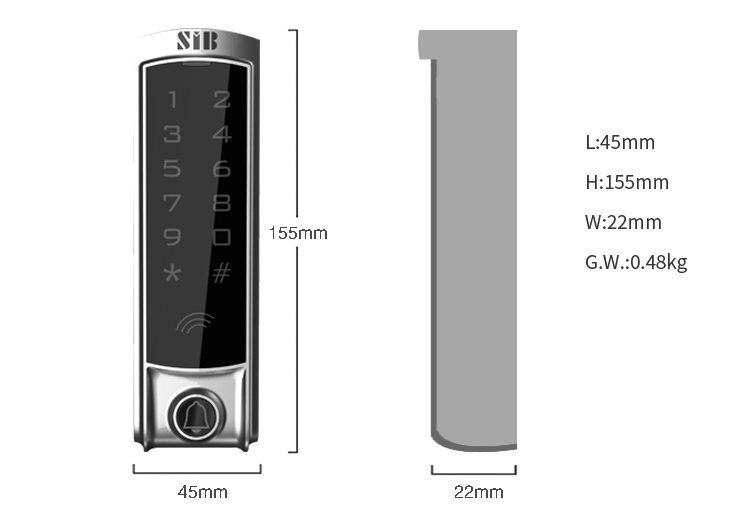

Size & Weight








Package size

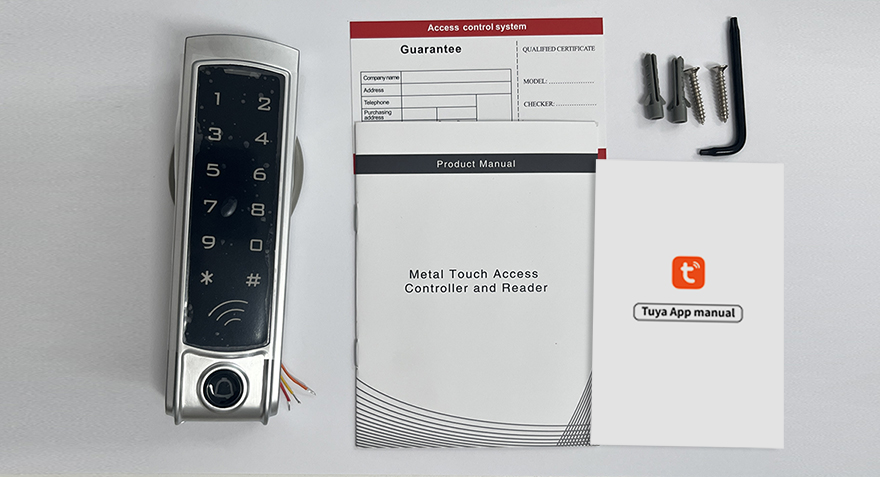

Packing list


Common power supply diagram





Special power supply diagram






Reader mode diagram


Click to download
