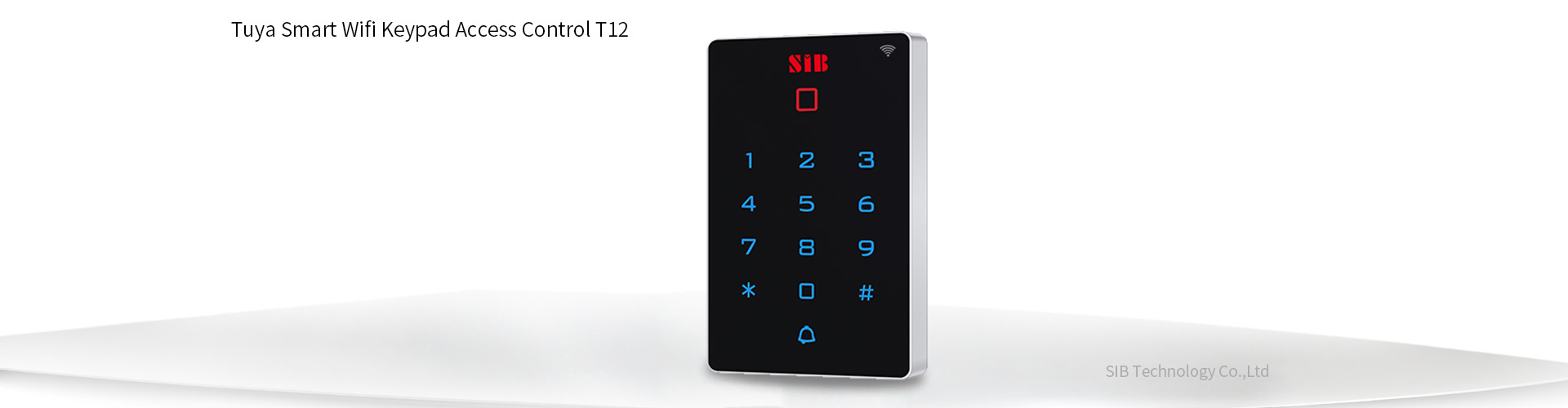

Tuya Smart Wifi Keypad Access Control T12 - WIFI Keypad Access Control

English: 中文

Product introduction
Technical parameters
System wiring diagram
Manual Down

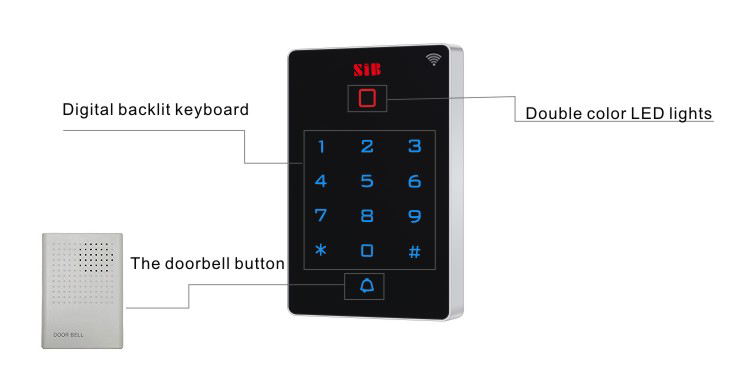

Product presentation

Remote unlock by mobile phone
Set temporary code and public code
Manage users by mobile phone App
Check visitor records

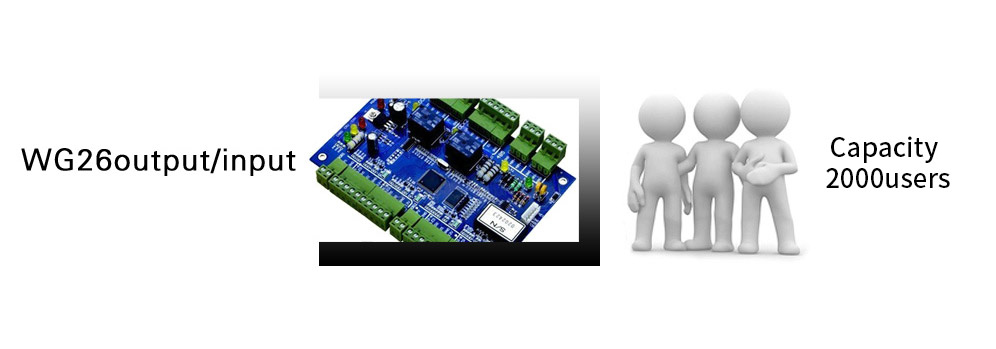

Wigend 26/34 output

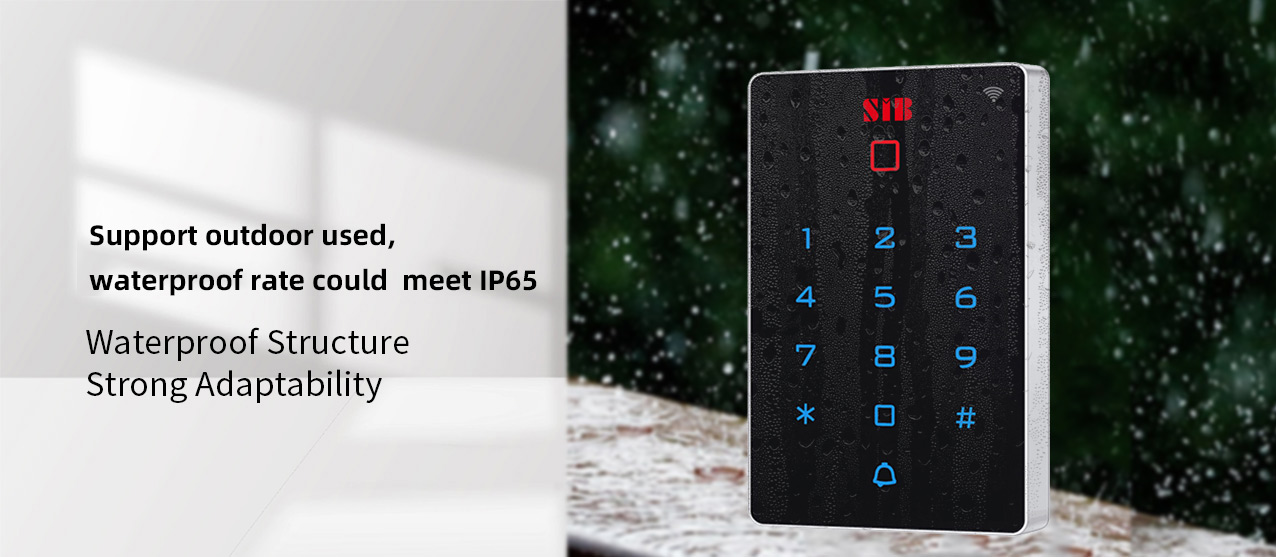

Support outdoor used, waterproof rate could meet IP65
Support three modes: standalone/reader/toggle relay
Support data backup function
Support admin add/delete card
Capacity: 2000users
Access ways: Card/Pin/Mobile app(Tuya)

Product Version

Brand	Model	Card Type	Waterproof Degree	Product Name
SIB	T12EM（WIFI）	EM Card 125Khz	Indoor	Tuya Smart Proximity Card Reader and Controller
SIB	T12MF（WIFI）	EM Card 125Khz	Indoor	Tuya Smart NFC Card Reader
SIB	T12EM（WIFI）-W	EM Card 125Khz	IP65	Wifi Waterproof Access Control
SIB	T12MF（WIFI）-W	EM Card 125Khz	IP65	Wifi Waterproof NFC Access Control

Technical parameters

Working Voltage: DC12V
Standby Current: ≤30mA
Card Reading Distance: 2～5cm
Capacity: 2000 users
Working Temperature: -40℃～60℃
Working Humidity: 10%～90%
Lock output load: ≤3A
Door Relay time: 0～99S (Adjustable)

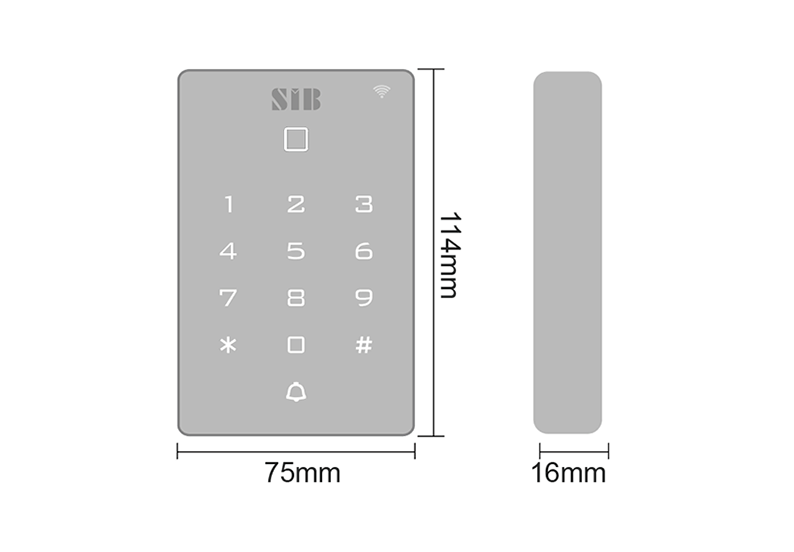

Size & Weight

Package size

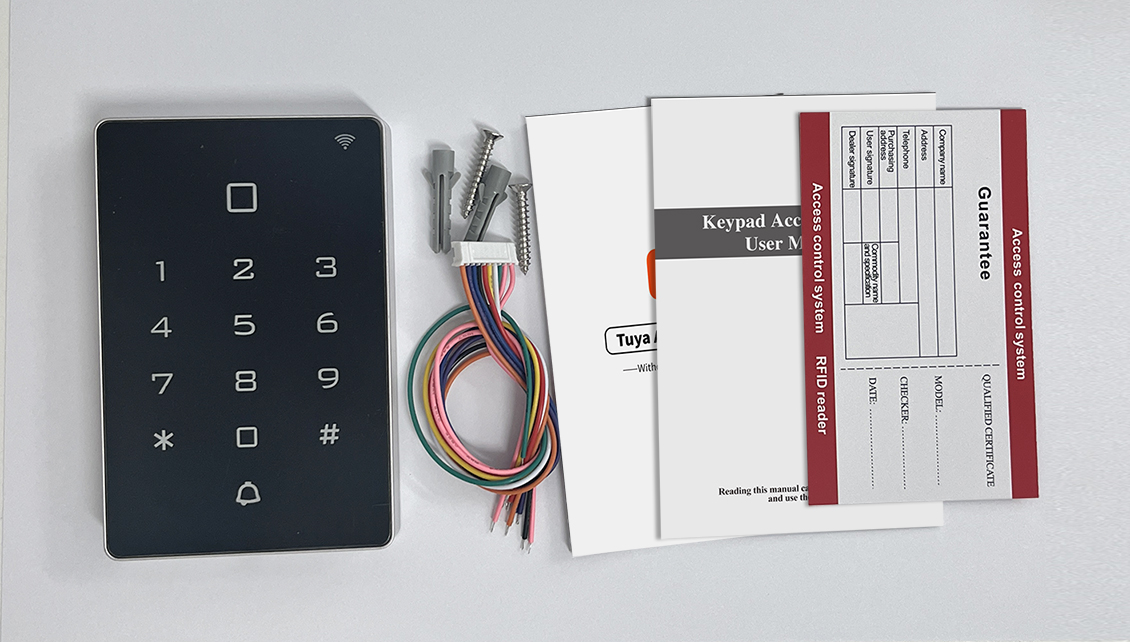

Packing list

Common power supply diagram

Special power supply diagram

Reader mode diagram
