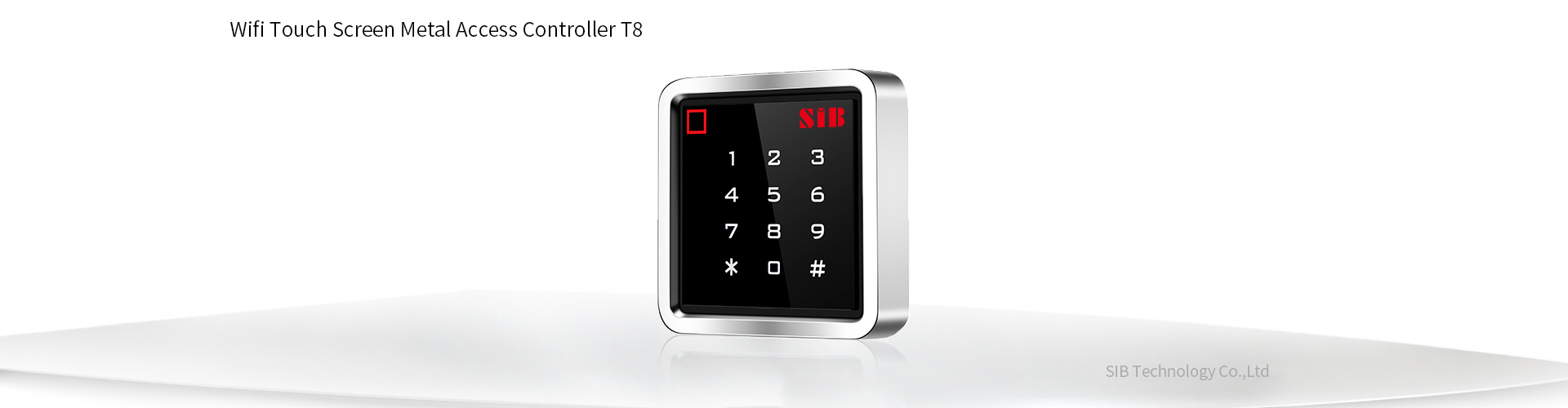

Product presentation
Metal case, anti-vandal

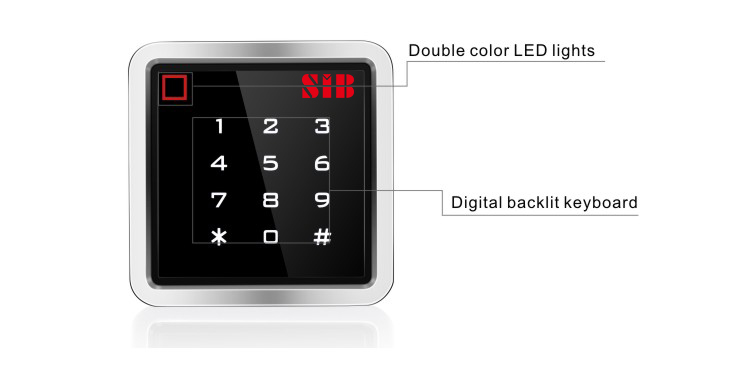

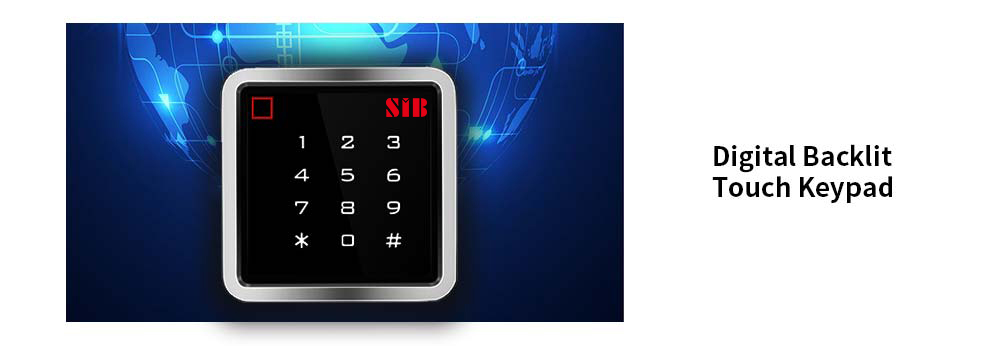

Digital backlit touch keypad

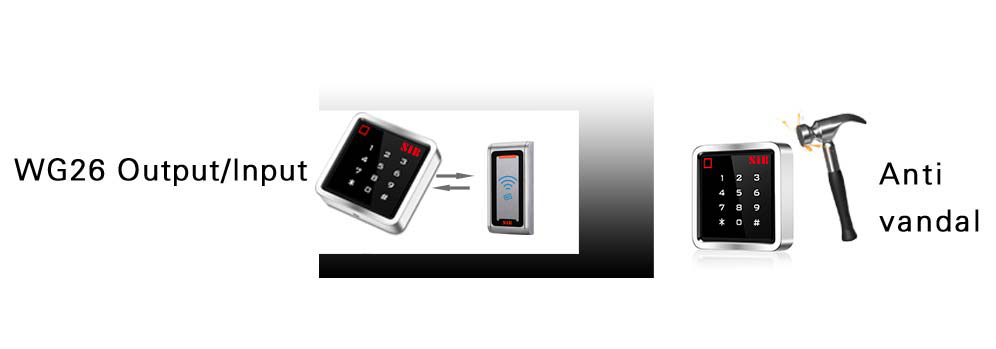

Wigend 26/34 output
Remote unlock by mobile phone
Set temporary code and public code
Manage users by mobile phone App
Check visitor records
Support outdoor used, waterproof IP68
Support three modes: standalone/reader/toggle relay
Support data backup function
Support admin add/delete card
Capacity: 2000users
Access ways: Card/Pin/Mobile app(Tuya)
Product Version
|
Brand |
Model |
Card Type |
Waterproof Degree |
Product Name |
|
SIB |
T8EM（Wifi） |
EM Card 125Khz |
Indoor |
Metal Touch Keyboard Rfid Card Access Control with Tuya App |
|
SIB |
T8MF（Wifi） |
MF Card 13.56Mhz |
Indoor |
Metal Touch Panel RFID Card Wifi Door Entry Systems |
|
SIB |
T8EM-W（Wifi） |
EM Card 125Khz |
IP68 |
Metal Waterproof Touch Keypad RFID Tuya Smart Door Lock |
|
SIB |
T8MF-W（Wifi） |
MF Card 13.56Mhz |
IP68 |
Metal Touch Screen RFID Tuya Smart Wifi Access Control |
Technical parameters
Card type：EM/MF
Capacity: 2,000
Environment Humidity：10%～90%
Lock output：≤1A
Working voltage：DC12V
Static electricity：≤30mA
Alarm output：≤20A
Output short circuit protection time：≤100μS
Card read distance：2～5cm
Ambient temperature：-40℃～60℃
Door Opening Time: 0～99s
Dimension：86 *86*20mm

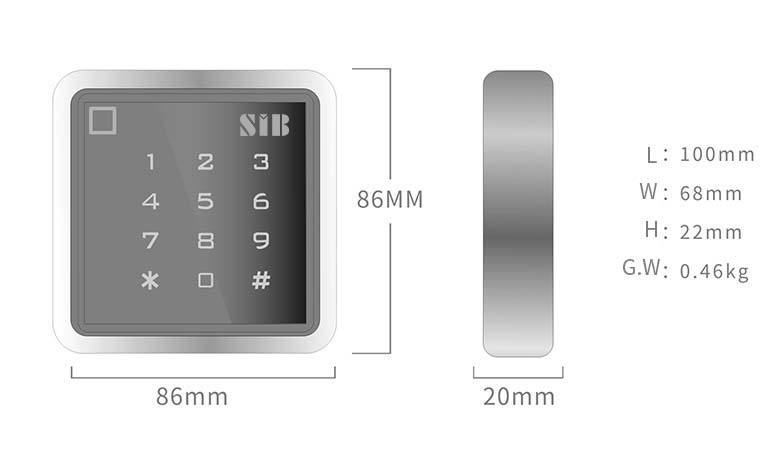

Size & Weight
Package size
Packing list

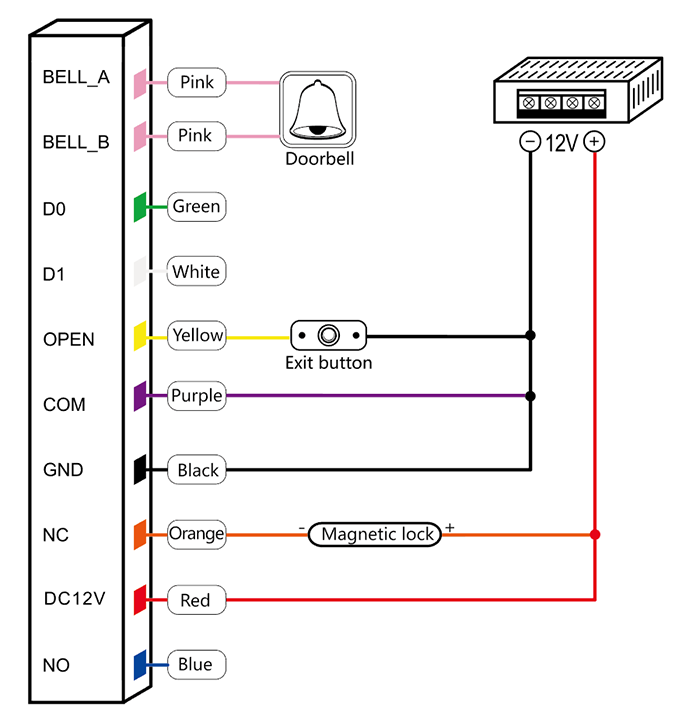

Common power supply diagram

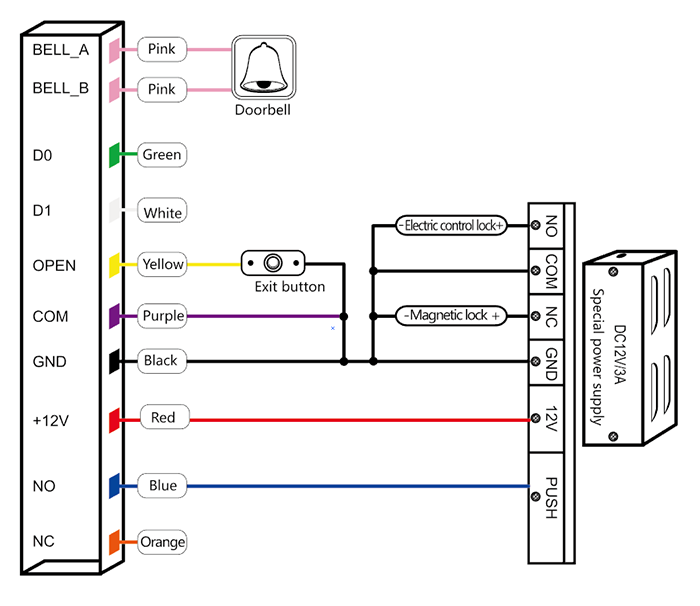

Special power supply diagram

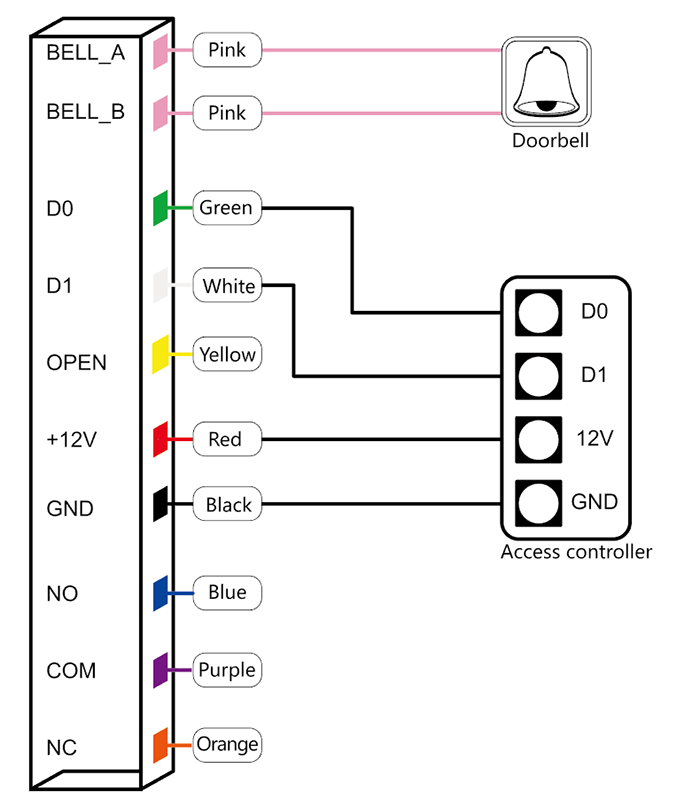

Reader mode diagram
