Product name: 180KG 350lbs Hoding Force EM Lock Fail Safe Type for Access Control Door with Time delay & Signal
Feedback optional
Product Specification
|
Model |
L180B, L180B-5 (With signal feedback), L180B-ST (With Signal feedback and Time Delay) |
|
Lock size |
170Lx40Wx21H(mm) |
|
Armature plate |
130Lx33Wx9.3H(mm) |
|
Holding force |
180KG(300LBS) |
|
Voltage |
DC 12V or 24V (Ajustable) |
|
Current draw |
12V/300mA 24V/150mA |
|
Suitable for |
Wooden door , Glass door ,Metal door , Fireproof gate |
|
Operating temp |
≤20°C |
|
Surface temp |
-10℃ ~ 55℃ (14°F~131°F) |
|
Suitable humidity |
0~90% (non-condensing) |
|
Finishes for shell |
Anodized aluminum surface texture processing |
|
Finishes for magnetic |
Zinc |
|
Finishes for armature |
Zinc |
|
Product Weight |
1.08kg |
|
Standard packing |
24pcs/CTN, 27kgs/CTN, carton dimension:44*19*26cm |

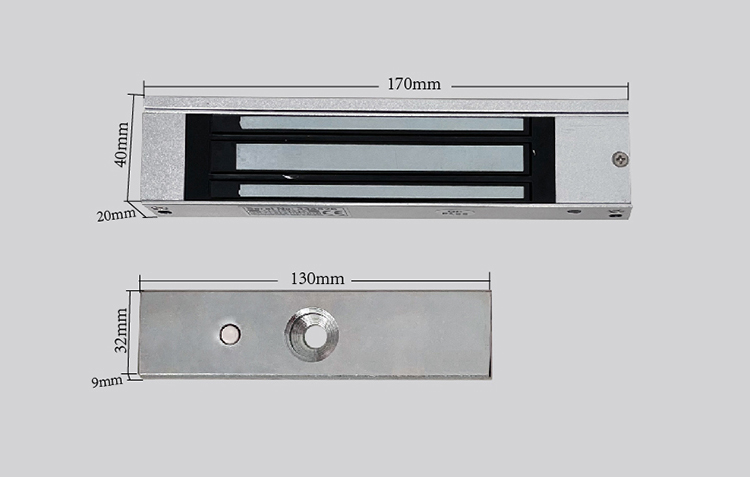

Product Dimension

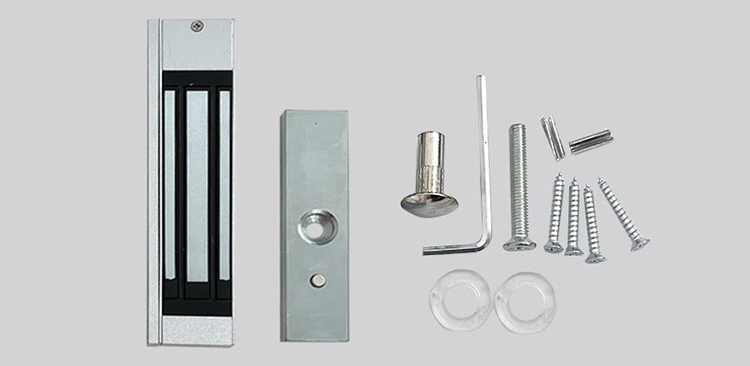

Complete Package

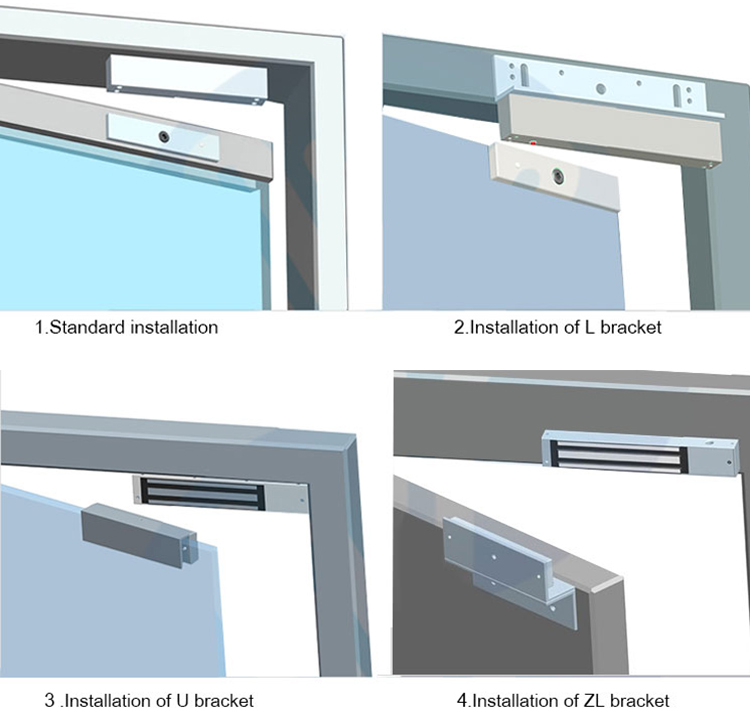

Installation
