Product presentation
Capacity：2000 cards/codes,100 faces
WG26/34 input/output
With data backup function
Can set admin add/delete card
Access ways:face,card,code,mobile APP(optional)

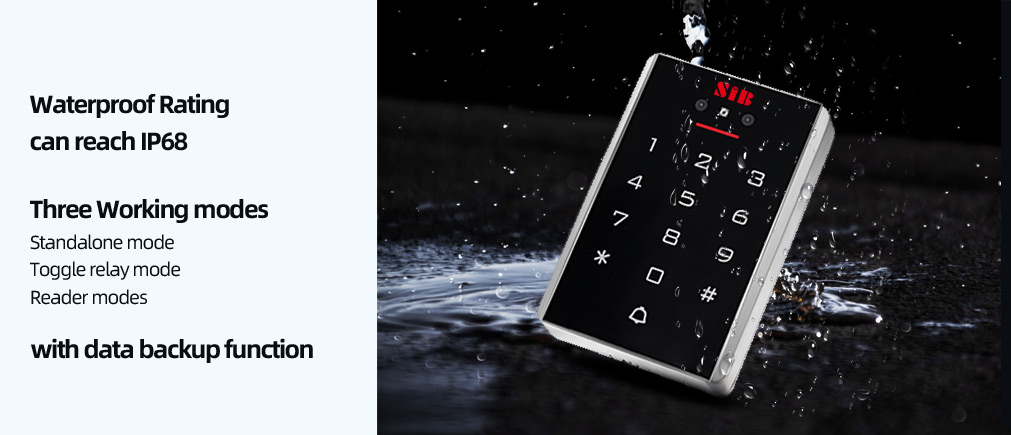

Waterproof rating can reach IP68
Three working modes:standalone mode/toggle relay mode/ reader mode
Tuya Wifi function (optional)
Remote unlocking & manage users with mobile App
Check visitor records
Set temporary code
Product Version
|
Brand |
Model |
Card Type |
Waterproof Degree |
Product Name |
|
SIB |
TF1-LCD EM |
EM Card 125Khz |
Indoor |
|
|
SIB |
TF1-LCD MF |
MF Card 13.56Mhz |
Indoor |
|
|
SIB |
TF1-LCD EM-W |
EM Card 125Khz |
IP68 |
|
|
SIB |
TF1-LCD MF-W |
MF Card 13.56Mhz |
IP68 |
|
|
SIB |
TF1-LCD EM-W(WIFI) |
EM Card 125Kh |
IP68 |
|
|
SIB |
TF1-LCD MF-W(WIFI) |
MF Card 13.56Mhz |
IP68 |
|
Technical parameters
Card type: EM/MF
Static electricity :≤30mA
Working voltage :DC12V (Customizable 24V)
Ambient temperature:-45℃~60℃
Humidity :10% to 90% RH
Card Reading Range:2-5cm
Facial Recognition Distance:1m
Electric lock output :≤1A
Short-circuit Protect Time:≤100μS
Door Opening Time:0-99s(Adjustable)

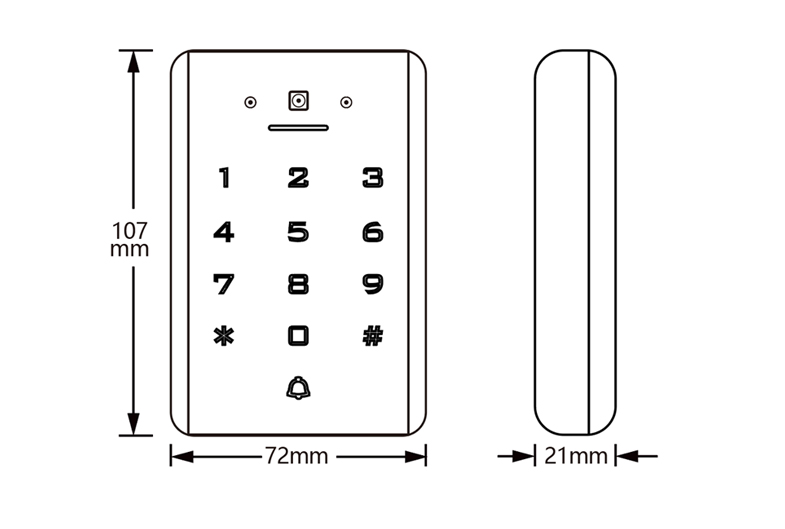

Product dimension
Common power supply diagram
Special power supply diagram
Reader mode diagram
3D Face Recognition Access Control Manual
TUYA(WiFi) Manual for 3D Face Recognition Access Control
