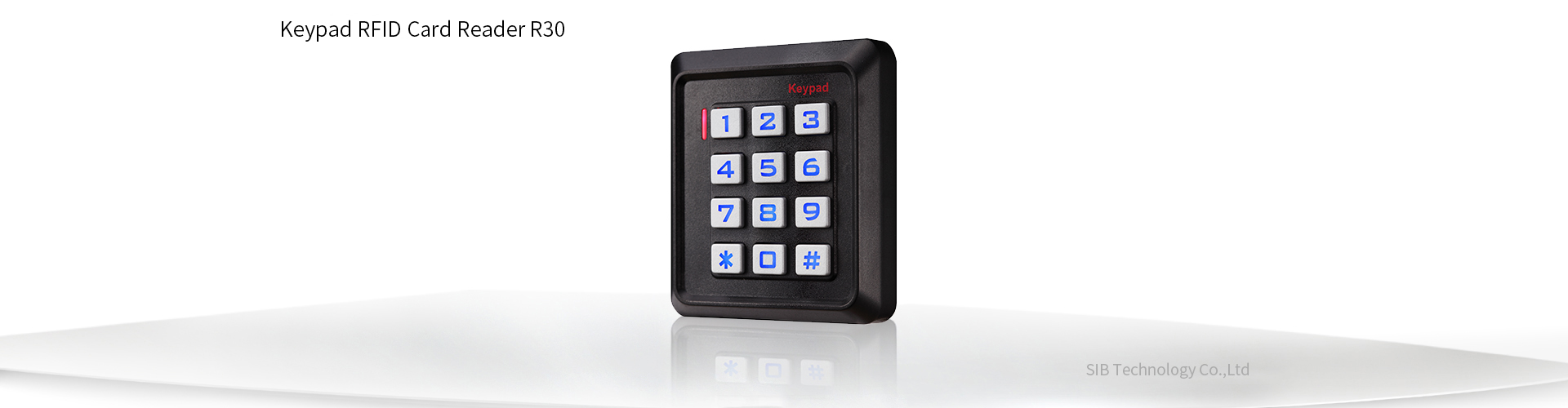

4-8Bits RFID Card Access Password Readers R30 - RFID Card Reader

English: 中文

Home
About SIB
Product
News
Service
Contact SIB

Product introduction
Function characteristics
System wiring diagram
Manual Down

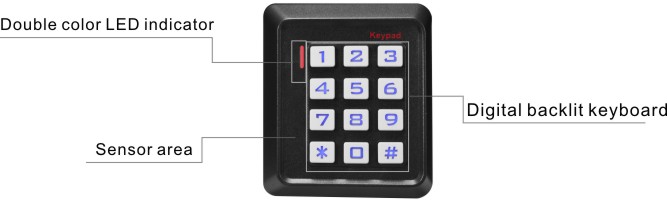

Product presentation

Material：Plastic case
Idle Current: ≤30mA
WG26 input and output
Door opening time less than 0.1S

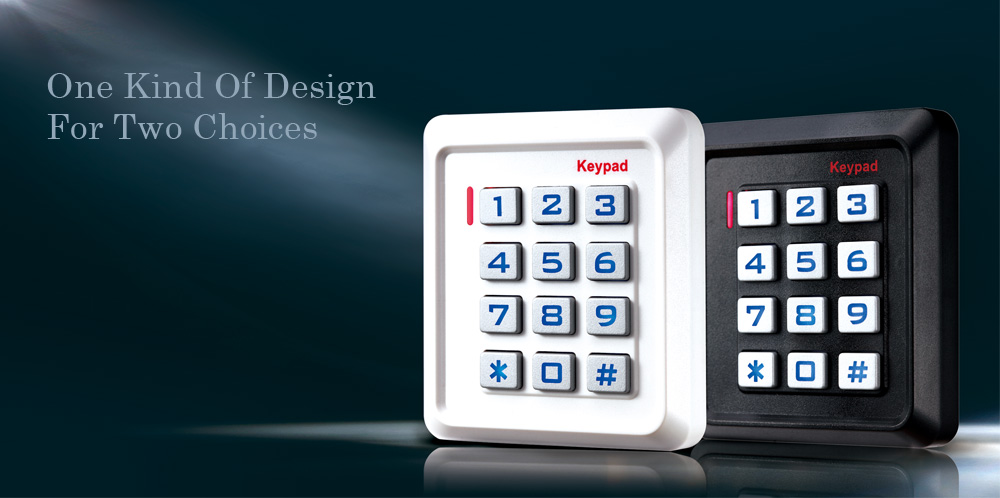

Product Version

Brand	Model	Card Type	Waterproof Degree	Product Name
SIB	R30EM	EM Card 125Khz	IP68	Waterproof Proximity Card PIN Readers
SIB	R30MF	MF Card 13.56Mhz	IP68	Outdoor Mifare 13.56Mhz Keypad Reader

Technical parameters

Card Type:EM/MF
Reading Range:2-5cm
Waterproof:IP68
Working Voltage:DC12V
Idle Current:≤30mA
Wiegand interface:WG26/34
Plastic case Communication Distance:100m

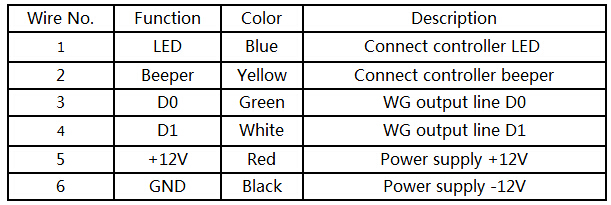

Wiring Instruction

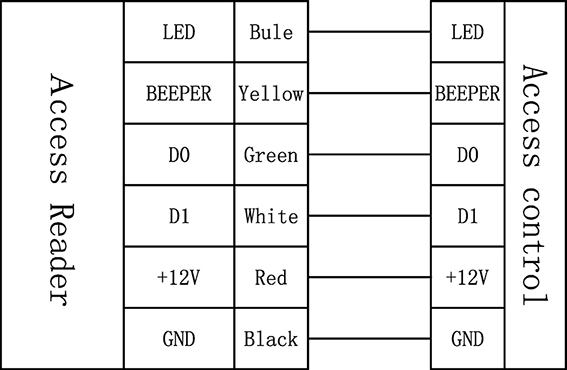

Diagram

Click to download
