Product presentation
Plastic case, anti-vandal

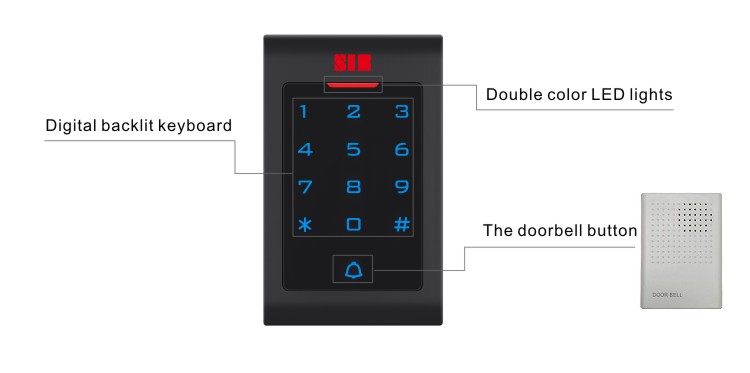

Digital backlit touch keypad
Multi-function standalone access
controller and reader,
WG26 output/Input
Capacity: 2000 cards/ codes
Three way to open the door:
card, password, card + password
Product Version
Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
T10EM
EM Card 125Khz
Indoor
Plastic Touch Panel Standalone Access Control
SIB
T10MF
MF Card 13.56Mhz
Indoor
Plastic Touch Screen Single Door Access Control
Technical parameters
Card type：EM/MF
Capacity: 2,000
Environment Humidity：10%～90%
Lock output：≤1A
Working voltage：DC12V
Static electricity：≤30mA
Alarm output：≤20A
Output short circuit protection time：≤100μS
Card read distance：2～5cm
Ambient temperature：-40℃～60℃
Door Opening Time: 0～99s
Dimension：117 *71*22mm

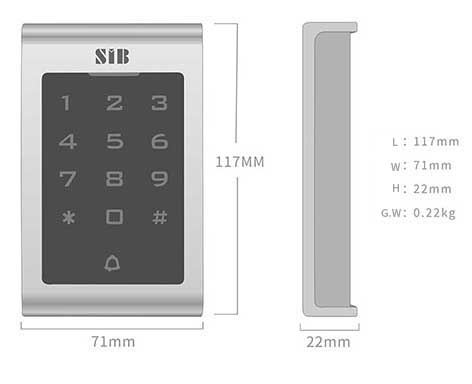

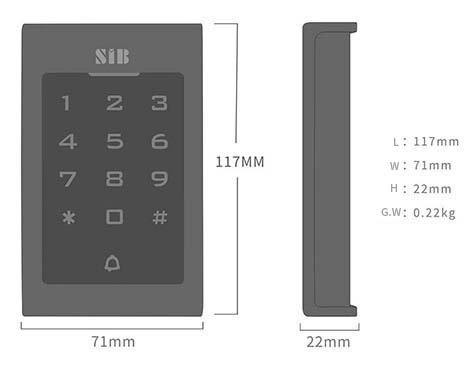

Size & Weight
Package size

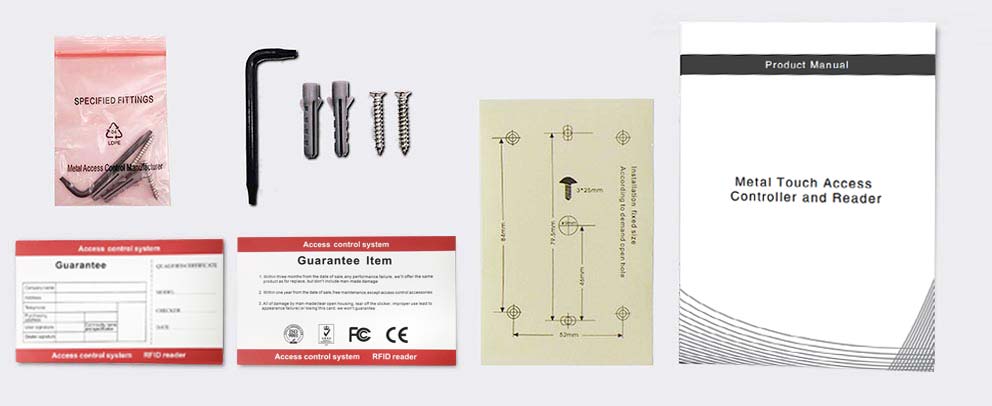

Packing list
Common power supply diagram
Special power supply diagram
