Brand |
Model |
Card Type |
Waterproof Degree |
Product Name |
| SIB |
U-P008EM |
EM Card 125Khz |
IP68 |
Outdoor EM 125Khz Card Reader |
|
SIB |
U-P008MF |
MF Card 13.56Mhz |
IP68 |
Outdoor MF 13.56Mhz Mifare Readers |
|
SIB |
U-P008H |
HID Card 125Khz |
IP68 |
Outdoor EM 125Khz HID Readers |
Technical parameters
Card type：EM/MF
Waterproof degree：IP68
Environment Humidity：10%～90%
Ambient temperature：-40℃～60℃
Working voltage：DC12V
Static electricity：≤30mA
Card read distance：2～5cm
Dimension：109 *47*20mm
Package size

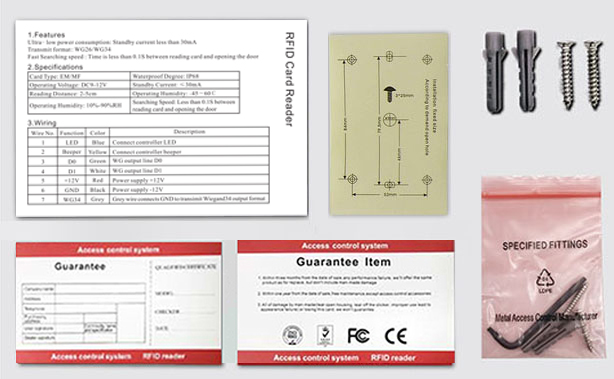

Packing list
Wiring Instruction
|
Wire No. |
Function |
Color |
Description |
| 1 |
LED |
Blue |
Connect controller LED |
| 2 |
Beeper |
Yellow |
Connect controller beeper |
| 3 |
D0 |
Green |
WG output line D0 |
| 4 |
D1 |
White |
WG output line D1 |
| 5 |
+12V |
Red |
Power supply +12V |
| 6 |
GND |
Black |
Power supply -12V |
Diagram
