Product introduction
Function characteristics

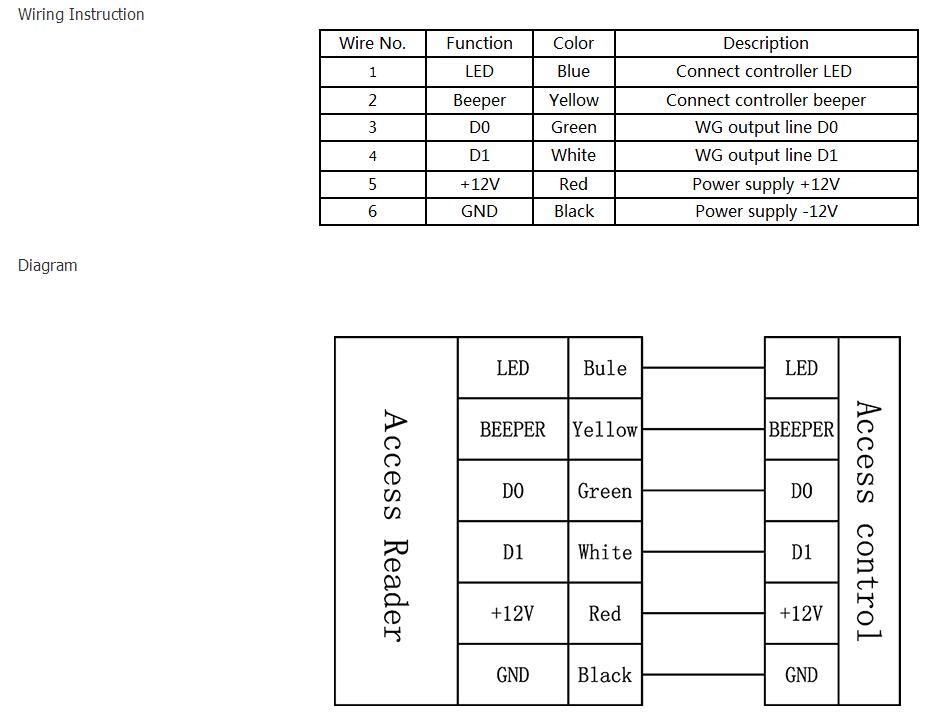

System wiring diagram
Manual Down

Product presentation

Material：Plastic case
Idle Current: ≤30mA
WG26 input and output
Door opening time less than 0.1S

Product Version

Brand	Model	Card Type	Waterproof Degree	Product Name
SIB	U-P002EM	EM Card 125Khz	IP68	Outdoor Wiegand26/34 Badges RFID Card Reader
SIB	U-P002MF	MF Card 13.56Mhz	IP68	Outdoor Wiegand58 Mifare Pluss RFID Card Reader
SIB	U-P002H	HID Card 125Khz	IP68	Waterproof Wiegand26/34/37 HID Card Reader

Technical parameters

Card Type:EM/MF

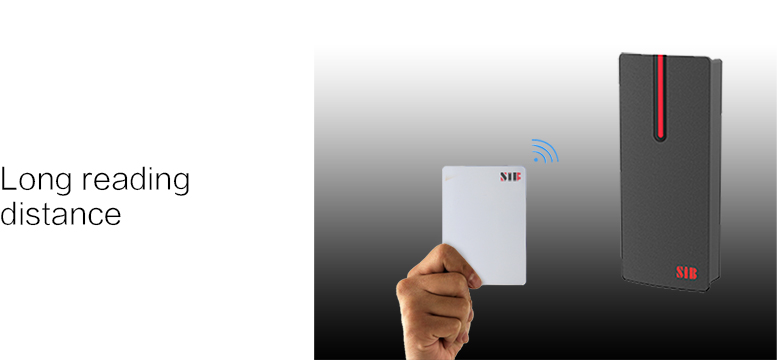

Reading Range:2-5cm

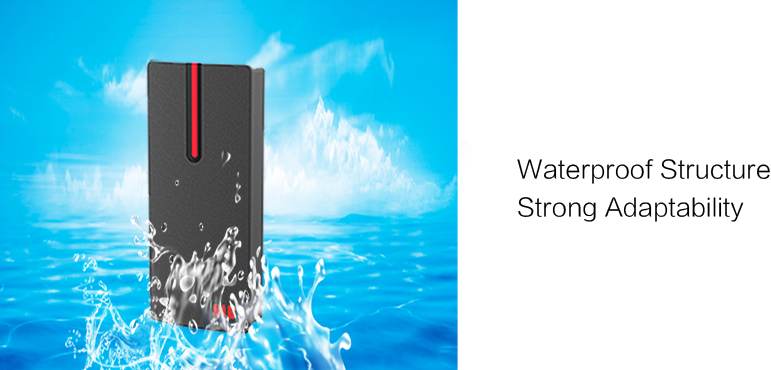

Waterproof:IP68
Working Voltage:DC12V
Idle Current:≤30mA
Wiegand interface:WG26/34
Plastic case Communication Distance:100m

Click to download
