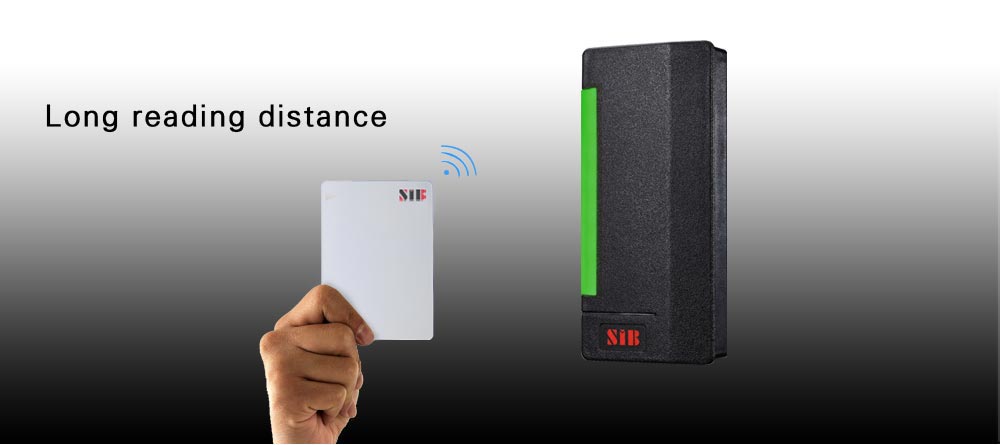

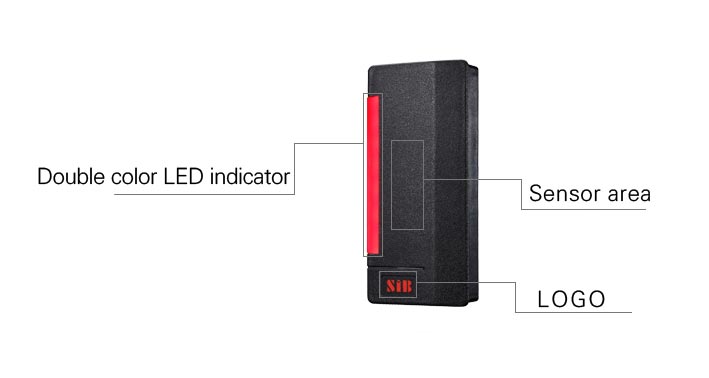

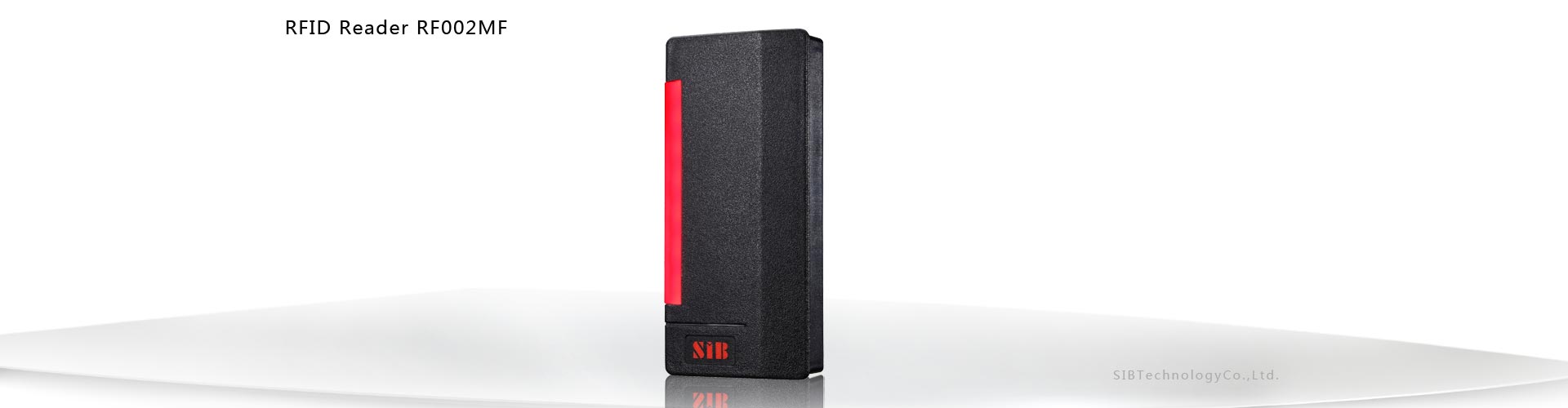

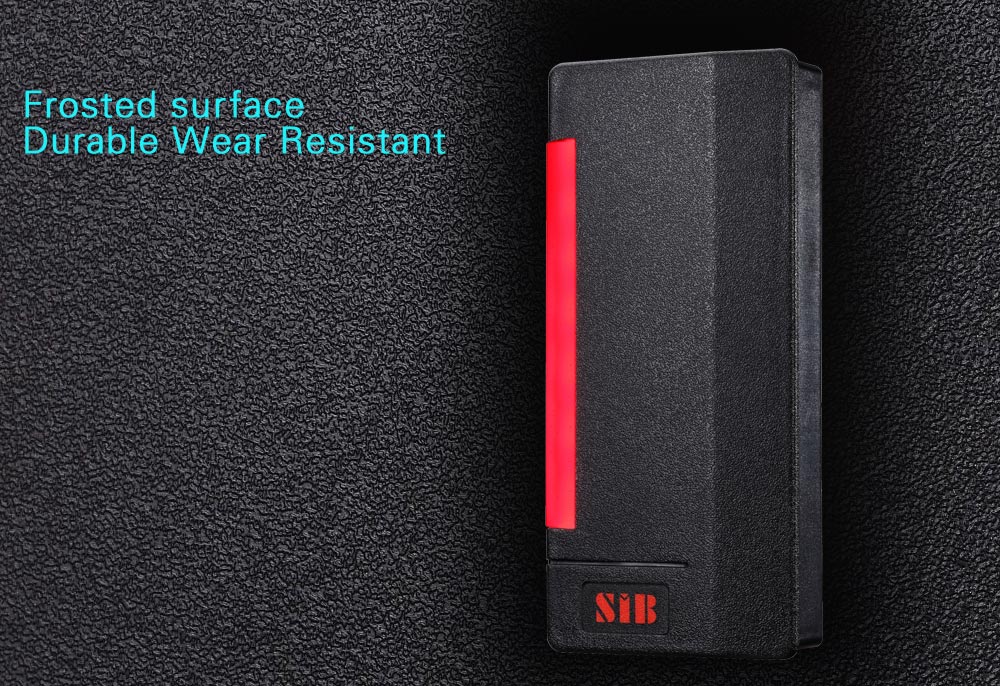

Product presentation
Output format: WG26
Product Version
|
Brand |
Model |
Card Type |
Waterproof Degree |
Product Name |
| SIB |
RF002EM |
EM Card 125Khz |
IP68 |
Wiegand26 Badges RFID Proximity Readers |
|
SIB |
RF002MF |
MF Card 13.56Mhz |
IP68 |
Wiegand26 Mifare Tag Card Reader |
|
SIB |
RF002H |
HID Card 125Khz |
IP68 |
Wiegand26 HID Keyfobs Card Reader |
Technical parameters
Card type：MF
Waterproof degree：IP68
Environment Humidity：10%～90%
Ambient temperature：-45℃～60℃
Working voltage：DC12V
Static electricity：≤30mA
Card read distance：3～6cm
Dimension：110 *50*18mm

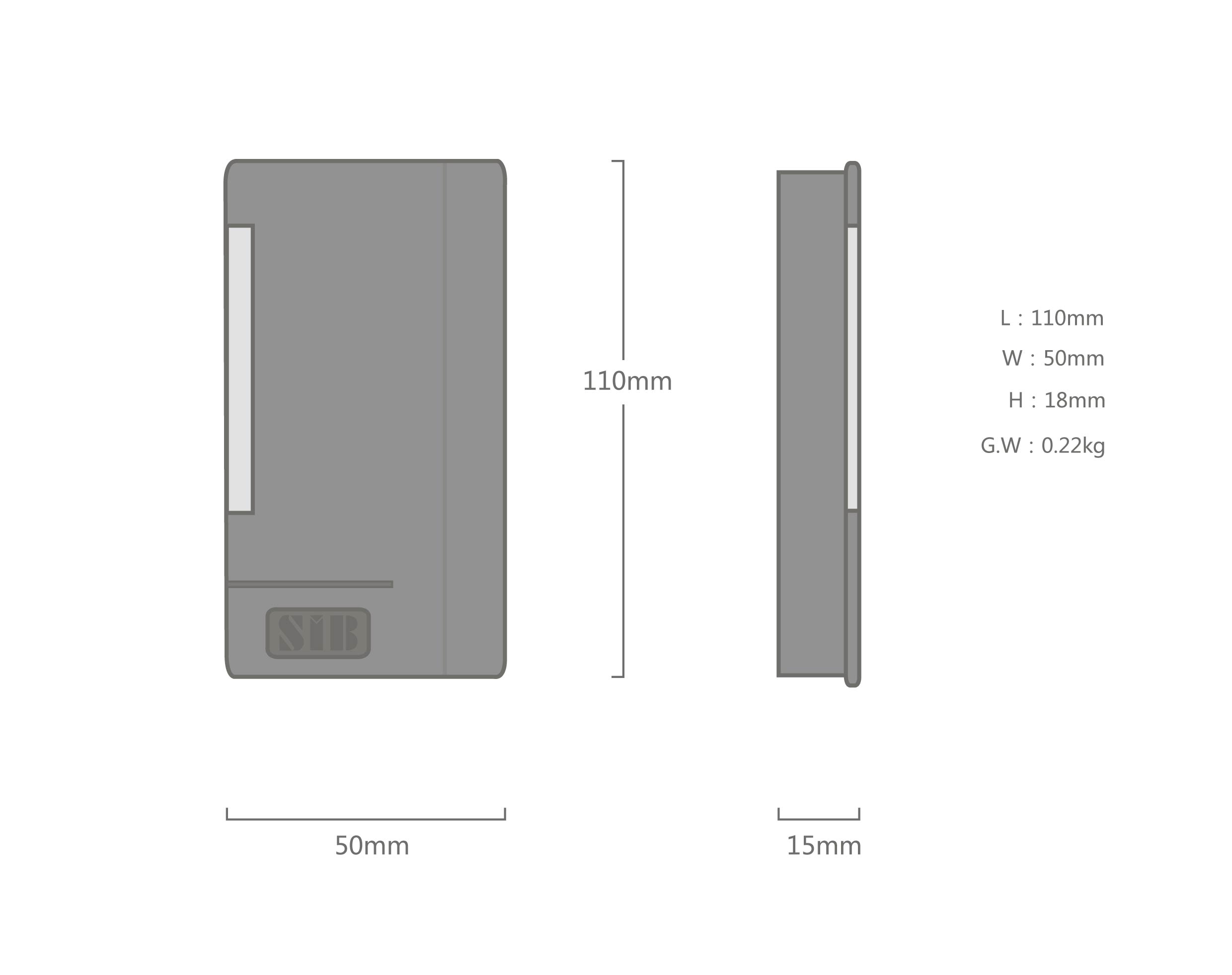

Size & Weight
Package size
Packing list
Wiring Instruction
|
Wire No. |
Function |
Color |
Description |
| 1 |
LED |
Blue |
Connect controller LED |
| 2 |
Beeper |
Yellow |
Connect controller beeper |
| 3 |
D0 |
Green |
WG output line D0 |
| 4 |
D1 |
White |
WG output line D1 |
| 5 |
+12V |
Red |
Power supply +12V |
| 6 |
GND |
Black |
Power supply -12V |
Diagram
