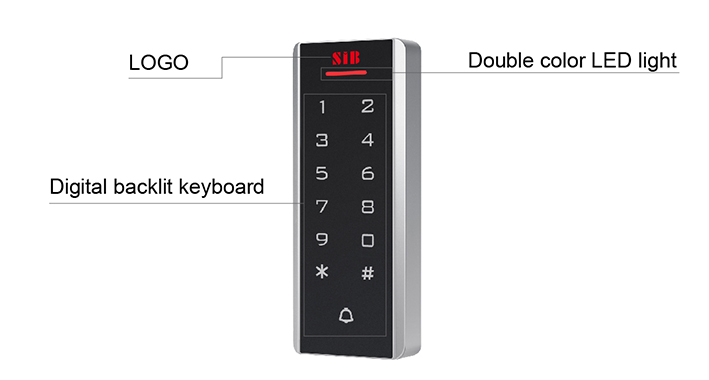

Product presentation
WG26/WG34 adjustable by end user under reader mode
Capacity: 2000 users,button keypad
Plastic case, indoor used
Access Way: Pin, Card, Pin+ Card
Relay Toggle Mode
Master cards are available
Data backup
Access ways:card,code,card+code
Product Version
Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
K1202EM
EM Card 125Khz
Indoor
Buble Keyboard Single Door Access Control
SIB
K1202MF
MF Card 13.56Mhz
Indoor
Buble Keypad Stand Alone Gate Entry
Technical parameters
Card type:EM/MF
Static electricity: ≤30mA
Working voltage: DC12V±10%
Ambient temperature: -45 ℃ ~ 60 ℃
Reading Range:3-6cm
Electric lock output: ≤1A
Humidity: 10% to 90% RH
Short-circuit Protect: ≤100μS
Door Opening Time:0-99s(Adjustable)

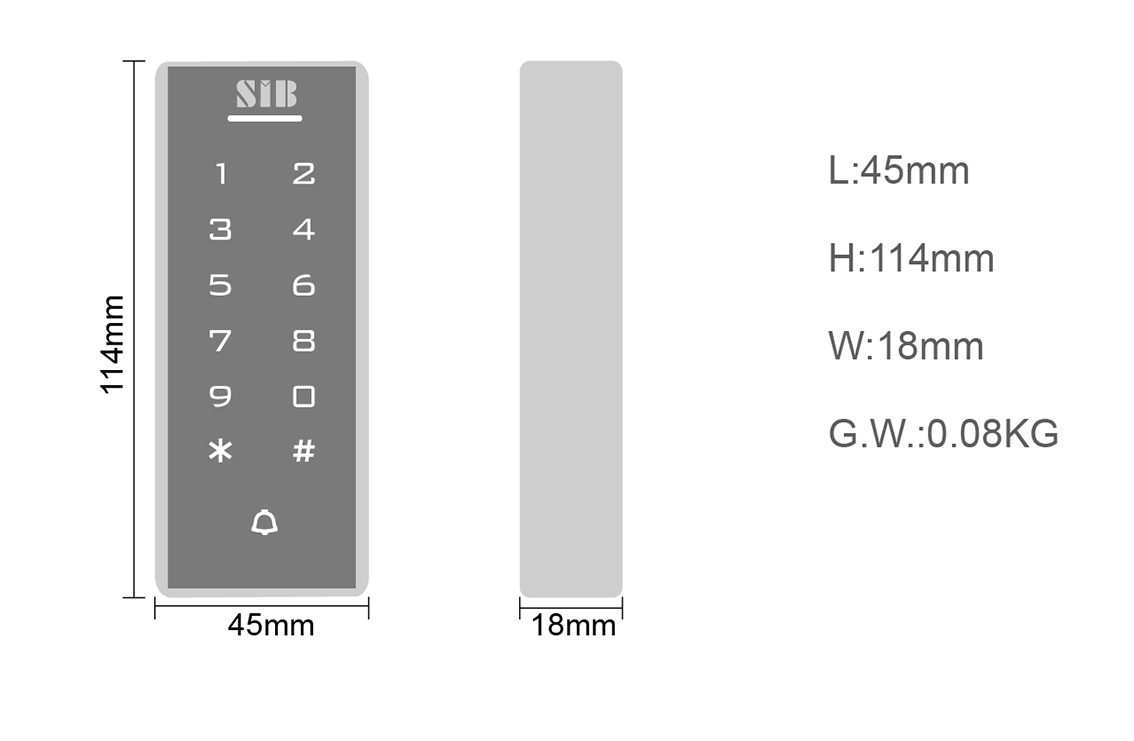

Size & Weight
Package size

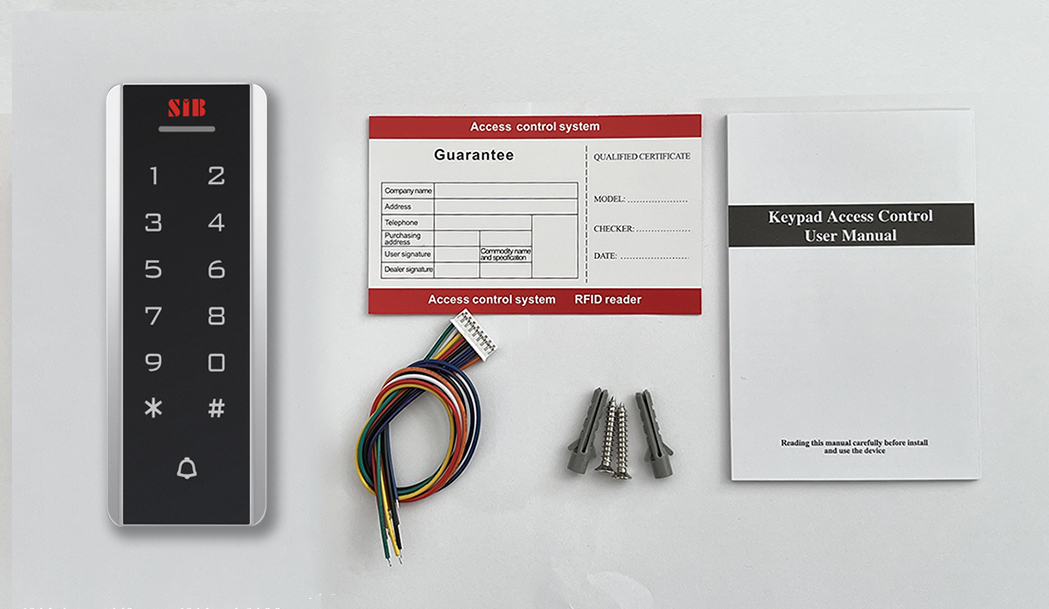

Packing list
Common power supply diagram
Special power supply diagram
Reader mode diagram
