Product presentation

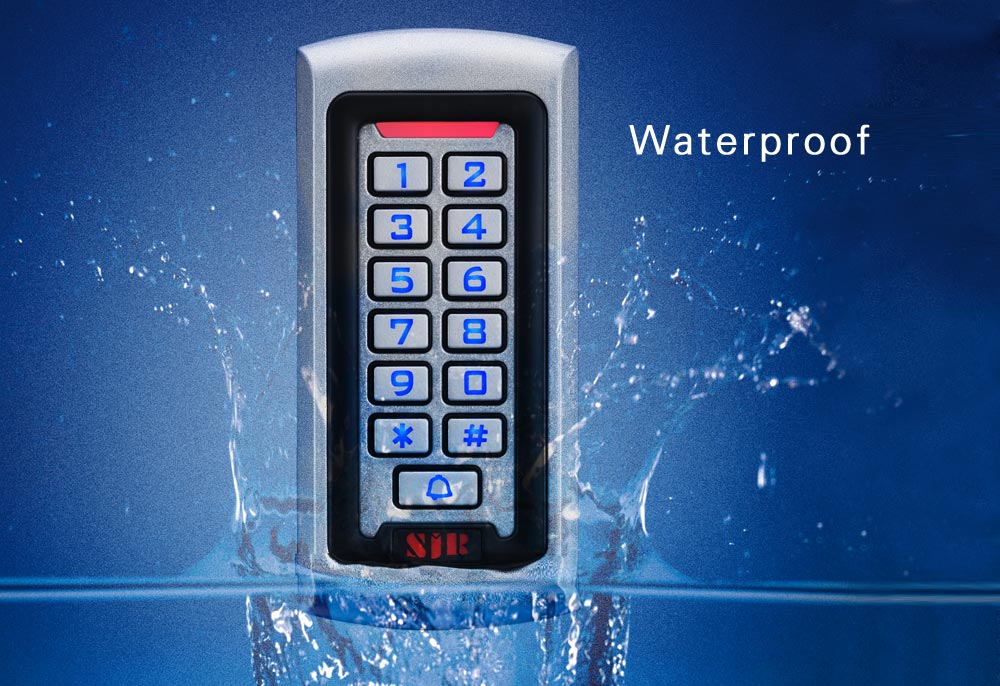

Waterproof IP68
Metal case, anti-vandal
Standalone access control with WG26 card reader function
2000 users, card or code
Three access way: card, pin, card+pin

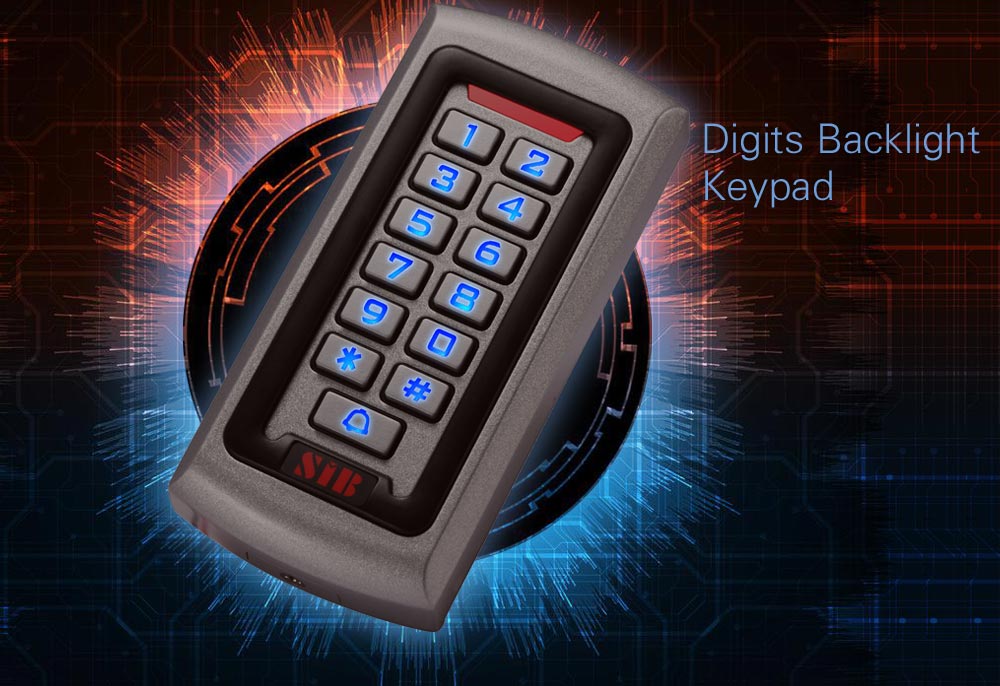

Backlight keypad

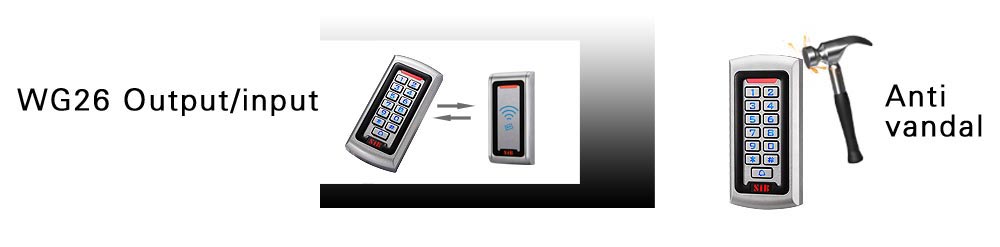

WG26 input/output

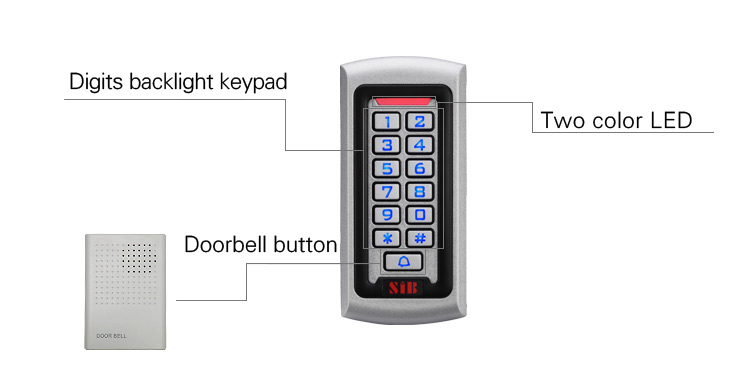

With doorbell button, can connect any doorbell
Product Version
Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
S603EM
EM Card 125Khz
Indoor
Wiegand26 RFID 125Khz Standalone Code Access Control
SIB
S603MF
MF Card 13.56Mhz
Indoor
Wiegand26 RFID 13.56Mhz Standalone Keypad Access Control
SIB
S603EM-W
EM Card 125Khz
IP68
Waterproof Metal Digital Keypad Single Door Access Control
SIB
S603MF-W
MF Card 13.56Mhz
IP68
Waterproof Metal Keypad One DOor Access Controller
Technical parameters
Card type：EM/MF
Waterproof degree：IP68
Environment Humidity：10%～90%
Lock output：≤3A
Working voltage：DC12V
Static electricity：≤30mA
Alarm output：≤20A
Output short circuit protection time：≤100μS
Card read distance：2～5cm
Ambient temperature：-40℃～60℃
Door Opening Time: 0～99s

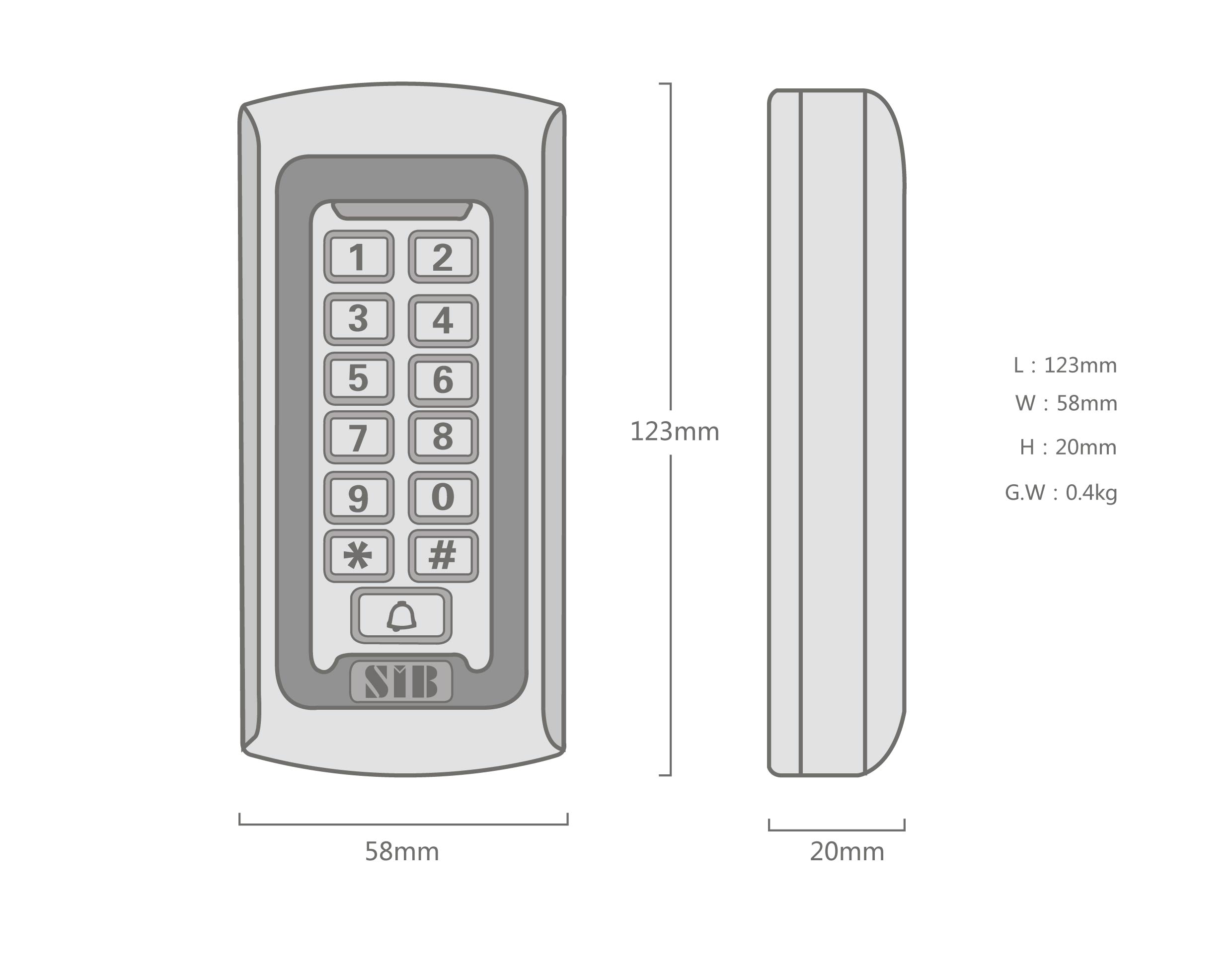

Dimension：123 *58*20mm
Size & Weight
Package size
Packing list
Common power supply diagram
Special power supply diagram
