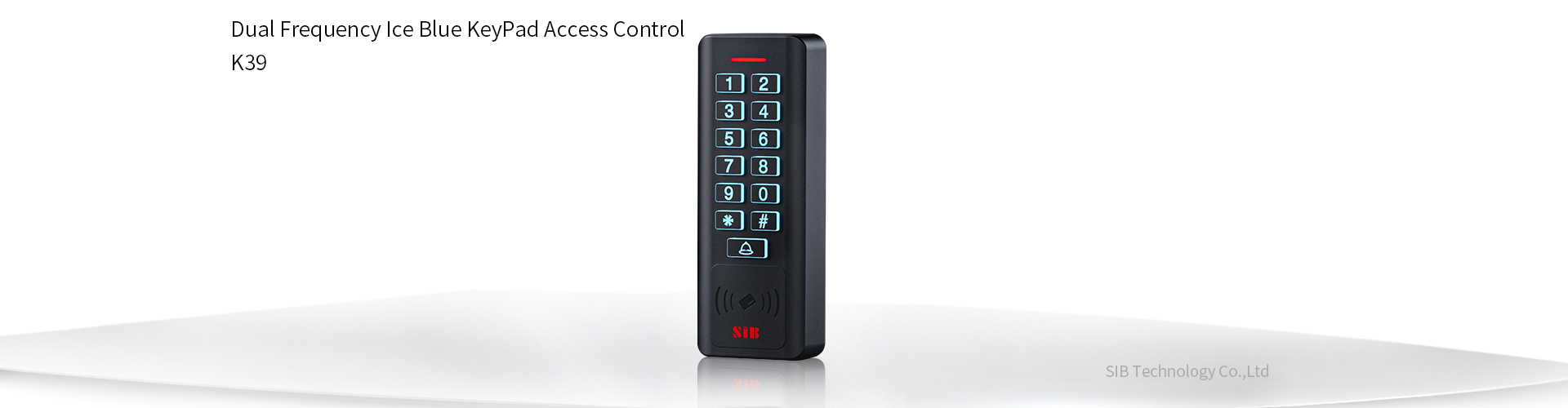

Dual Frequency Ice Blue KeyPad Access Control K39 - products

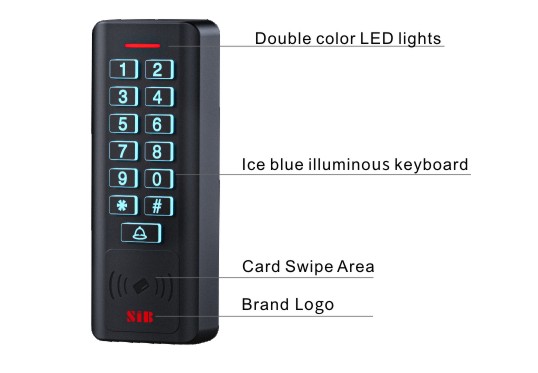

Product presentation

ABS case,anti-vandal

Ice-blue luminous digital keyboards

Waterproof rating IP68
Access way: card,code,card+code,tuya App(optional)
Support admin add card,delete card
Capacity:2000 card users
Can set Standalone access control mode, Toggle relay mode, Reader mode
WG26/34 input/output
With data backup function

Product Version

Brand	Model	Card Type	Waterproof Degree	Product Name
SIB	K39EM	EM Card 125Khz	Indoor	Ice Blue illuminated Keyboard Metal Access Control
SIB	K39MF	MF Card 13.56Mhz	Indoor	Mifare Card Metal Keypad Access Control
SIB	K39EF	125Khz+13.56Mhz	Indoor	Dual Frequency Ice Blue KeyPad Access Control
SIB	K39EM-W	EM Card 125Khz	IP68	Waterproof 125Khz keypad Access Control
SIB	K39MF-W	MF Card 13.56Mhz	IP68	Mifare Outdoor Use keypad Access Control
SIB	K39EF-W	125Khz+13.56Mhz	IP68	Dual Frequency waterproof Access Control
SIB	K39EM-W(Tuya)	MF Card 13.56Mhz	IP68	Tuya Mobile APP Keyboard Access Control
SIB	K39MF-W(Tuya)	MF Card 13.56Mhz	IP68	13.56Mhz WiFi Access Control
SIB	K39EF-W(Tuya)	125Khz+13.56Mhz	IP68	tuya Smart APP WiFi Access Control

Technical parameters

Card type:EM/MF/EM+MF/HID
Static electricity: ≤30mA
Working voltage: DC12V±10%
Ambient temperature: -45 ℃ ~ 60 ℃
Reading Range:2~5cm
Electric lock output: ≤1A
Humidity: 10% to 90% RH
Short-circuit Protect: ≤100μS
Door Opening Time:0-99s(Adjustable)

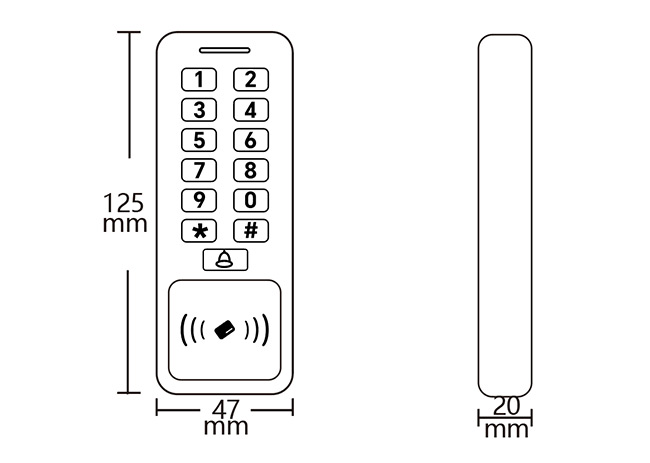

Size & Weight

Common power supply diagram

Special power supply diagram

Reader mode diagram

Click to download
