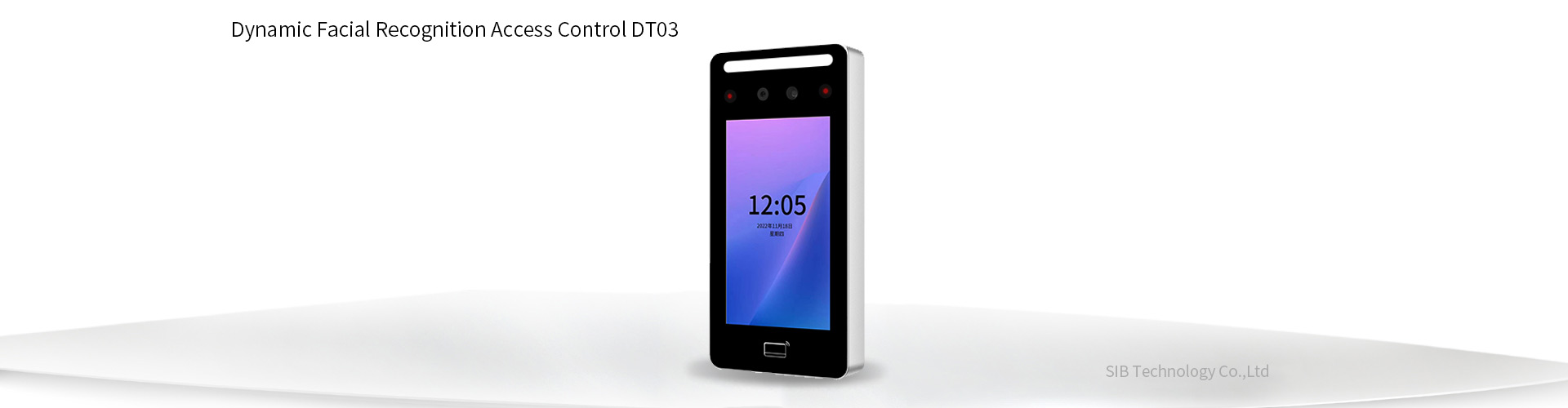

Dynamic Facial Recognition Access Control DT03 - Facial Recognition Access Control | SIB Technology Co.,LTD

sbwy@sbwy.net 0086-755-26510155

English: 中文

Product introduction
Technical parameters

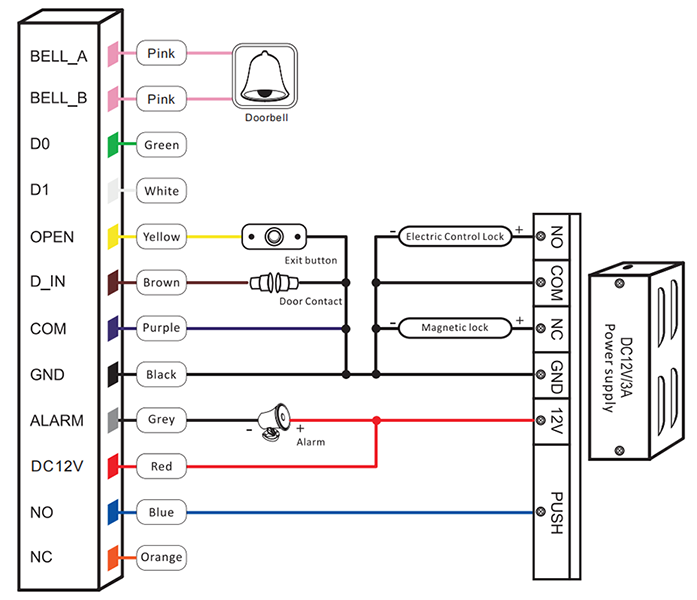

System wiring diagram
Manual Down

Product presentation

Capacity：2000 Faces/cards/codes in total

Infrared liveness detection

Anti-backlight

Support copy attendance data with USB drive

WG26/34 input,output

With data backup function

Can set admin add/delete card

Three working modes:standalone/toggle relay/reader mode

Access ways:fingerprint,card,code,mobile APP(optional)

Tuya Wifi function (optional)

Remote unlocking & manage users with mobile App

Check visitor records

Set temporary code

Product Version

Brand	Model	Card Type	Waterproof Degree	Product Name
SIB	DT03EM	EM Card 125Khz	Indoor	125Khz ID Dynamic Face Recognition Access Control
SIB	DT03MF	MF Card 13.56Mhz	Indoor	Mifare 12.56Mhz Facial Recognition Entrance Equipment
SIB	DT03EM(WIFI)	EM Card 125Khz	Indoor	TUYA WiFI Dynamic Face Recognition Access Control
SIB	DT03MF(WIFI)	MF Card 13.56Mhz	Indoor	Remote unlocking Mifare 12.56Mhz Facial Recognition Entrance Equipment

Technical parameters

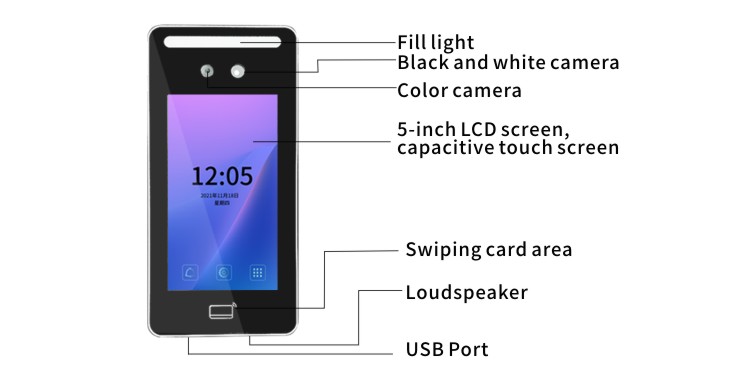

OS：RTOS intelligent operation system

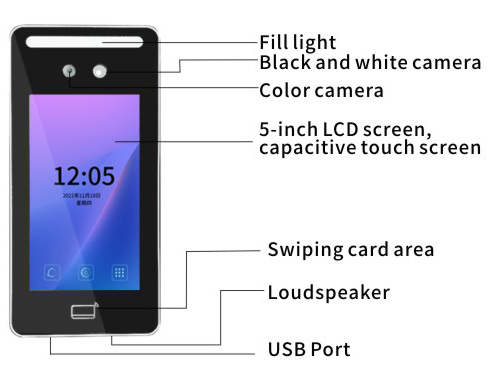

Camera：200W pixel HD color camera \200W infrared live camera

Fill Light：LED high light filling lamp (automatic control according to ambient light)

Working Voltage：DC-12V-10%

Power Supply： DC-12V 3-5A

Display Screen：5-inch LCD screen, capacitive touch screen 272*480

Working Temperature：-15℃～+45℃（Storage Temperature-10℃～+65℃）

Working Humidity：20%～90%（Storage Humidity20%～90±2%）

Capacity：2000 Face/code/card in total

Users Record：100,000pcs

Keypad：Touch screen virtual keypad

Access Mode：Face/Card/Pin, Face+Pin, Pin+Card(EM)

Recognition Distance：pure dynamic face recognition - 0.5-3m ,open liveness 0.5-1.5m

Intelligent Function：Infrared liveness detection

Door Contact signal：One group signal Input

Door Bell Control：One group signal

Relay Output：Door open signal control one group

Output：WG26/34 out put (could be used as a reader and connected with a controller)

Weight：500g

Size：173*83*22mm

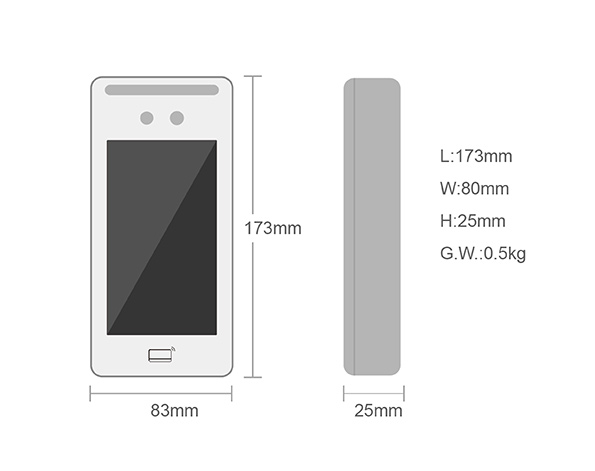

Size & Weight

Package size

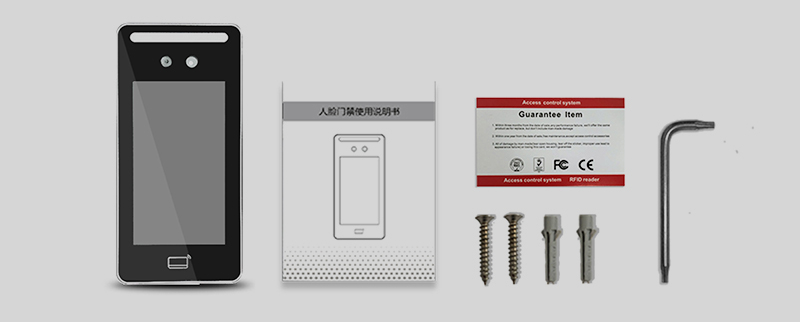

Packing List

Special power supply diagram

Click to download
