Product presentation


Can set relay toggle mode, pure reader mode, standalone access control mode

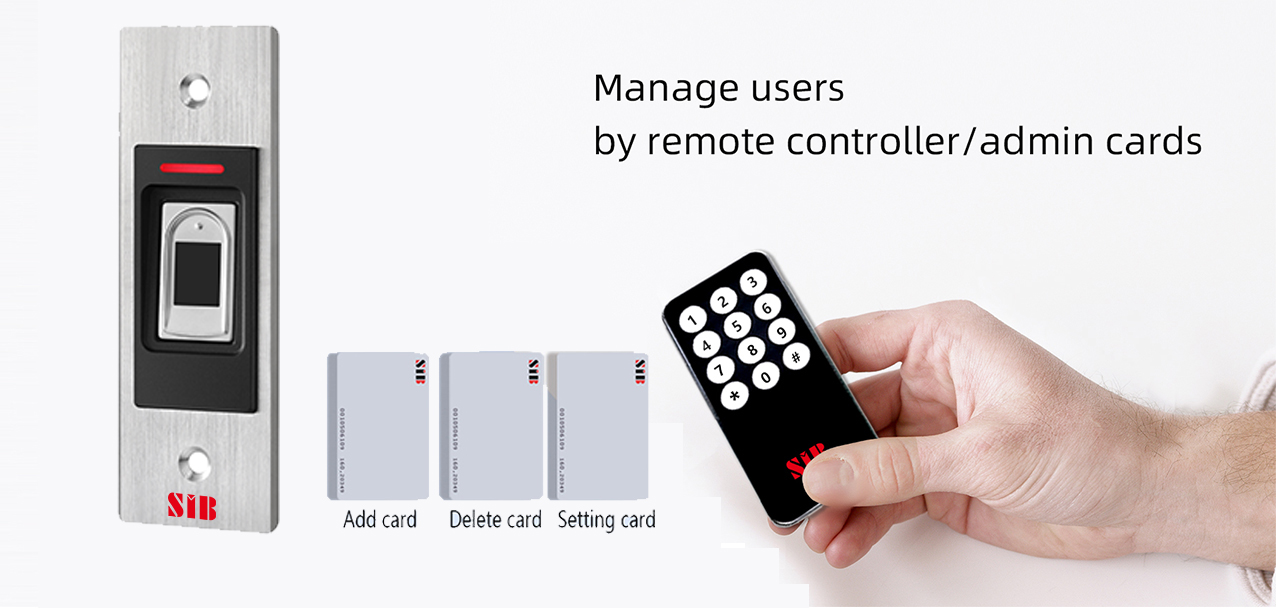

Add  and delete users by master card/remote control
Card access only,10,000 card users
The unlocking signal adopts NO,NC,COM output of relay
Wiegand 26 input and output
With data backup function




Product Version


Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
E39EM-W
EM Card 125Khz
IP68
Mass Capacity RFID 125Khz Fobs Access Controller
SIB
E39MF-W
EM+H Card 125Khz
IP68
High Storage RFID 13.56Mhz Tags Access Controller


Technical parameters


Card Type:EM/MF

Operating Voltage: DC 12

Standby Current: ≤35mAA

reading Range:2-5cm
Operation Current: ≤100mA

Operating Temperature: -20℃~60℃
Operating Humidity: 0%~95%

Maximum Rated Current:≤1A
Door Opening Time:0-99s(Adjustable)

Alarm Output Time:0~3min

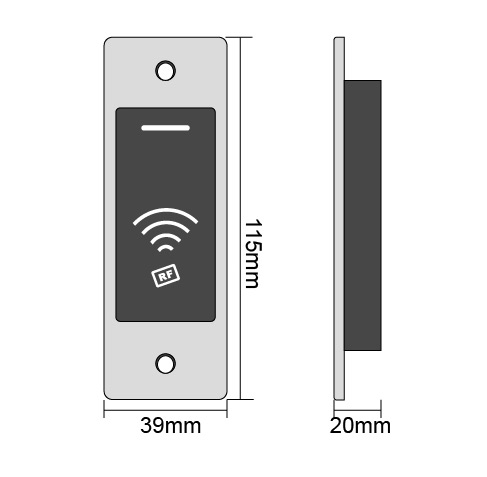

Size & Weight





Package size








Common power supply diagram





Special power supply diagram





Reader mode diagram



Click to download
