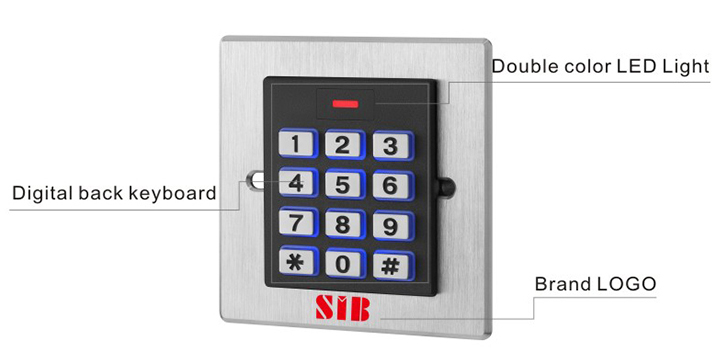

Product presentation

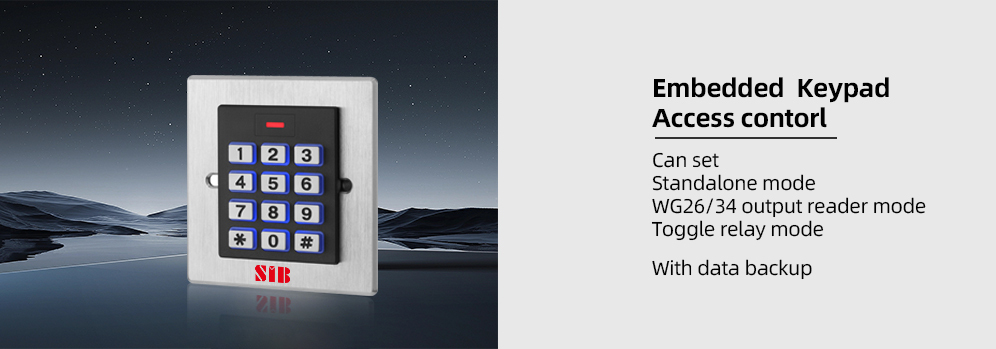

WG26/WG34 adjustable by end user under reader mode
Capacity: 2000 users，Blue luminous digital keyboards

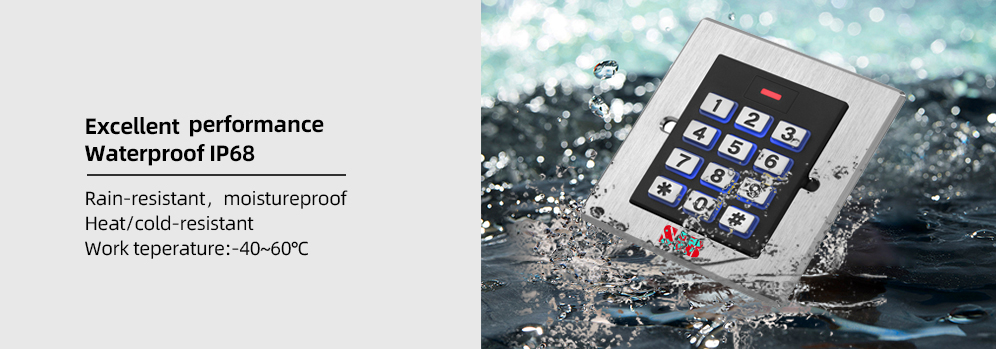

Metal case, waterproof IP68
Relay Toggle Mode
Master cards are available
Data backup

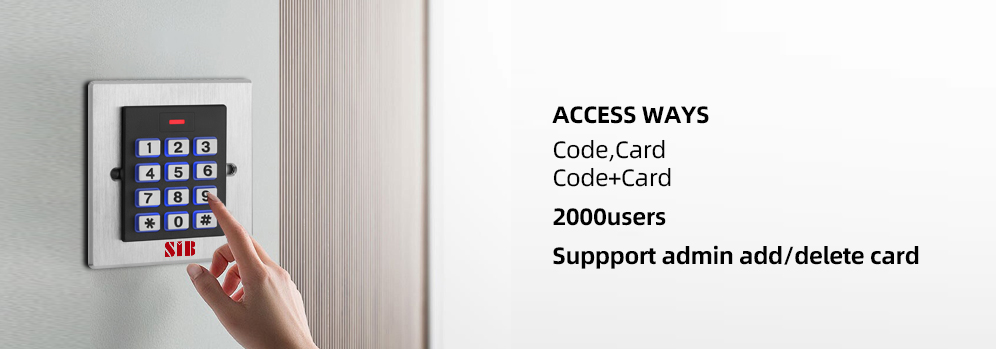

Access ways:card,code,card+code
Product Version
|
Brand |
Model |
Card Type |
Waterproof Degree |
Product Name |
|
SIB |
EK86EM-W |
EM Card 125Khz |
IP68 |
|
|
SIB |
EK86MF-W |
MF Card 13.56Mhz |
IP68 |
|
Technical parameters
Card type:EM/MF
Static electricity: ≤30mA
Working voltage: DC12V
Ambient temperature: -45 ℃ ~ 60 ℃
Reading Range:3-6cm
Electric lock output: ≤1A
Humidity: 10% to 90% RH
Short-circuit Protect: ≤100μS
Door Opening Time:0-99s(Adjustable)

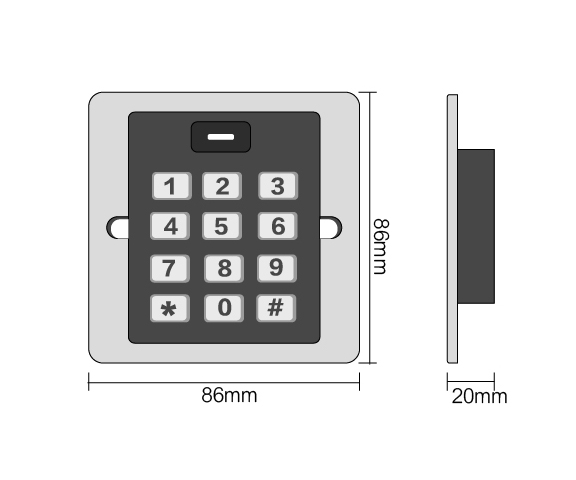

Product Dimension
Package size
Common power supply diagram
Special power supply diagram
Reader mode diagram
