Model: OP15K

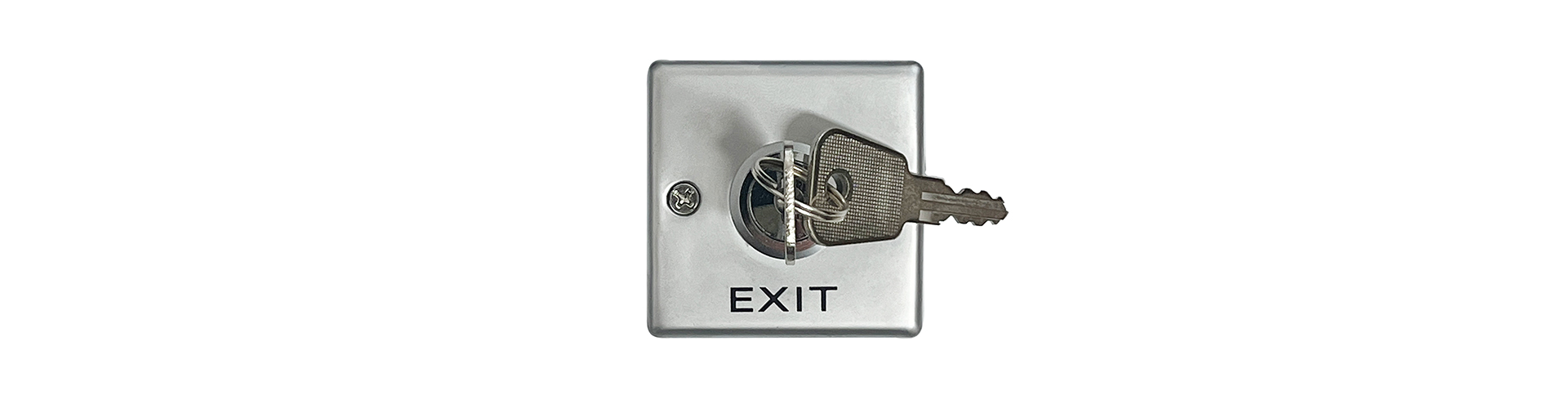

Product: Aluminum Panel Door Release Exit Button Switch for door access control system

Output Contact: NO\COM

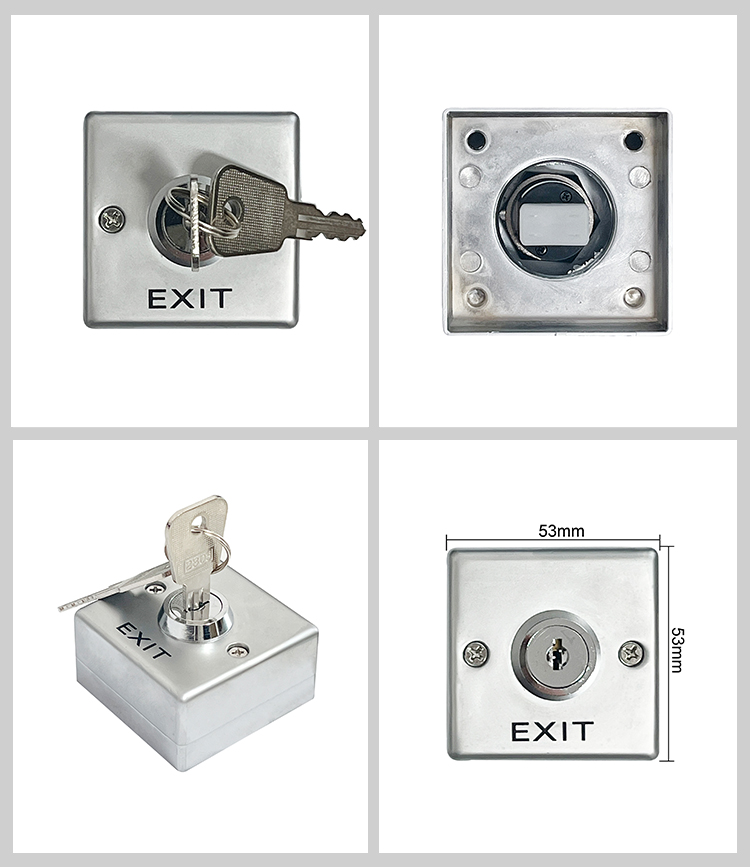

Dimensions: 53Lx53Wx28H(mm)

Standard Structure: Aluminmum Panel, Steel Button

Mechanical Life: 500000 tested

Suitable for Door: Hollow Door

Operating temp: 10~+55℃(14-131F)

Operating Humidity: 0-95% (non- condensing)

Panel Material: Aluminum panel, Sandblast Finished

Design with no Mechanical Bolt

Aluminum Panel with Elegant Style

Tested to 500000 Cycles

Three Contact Output,Suitable for all kinds of the Locks

Packaging: 0.15kg/PC, 16KGS/100PCS/CTN, 59*47*26CM/CTN
