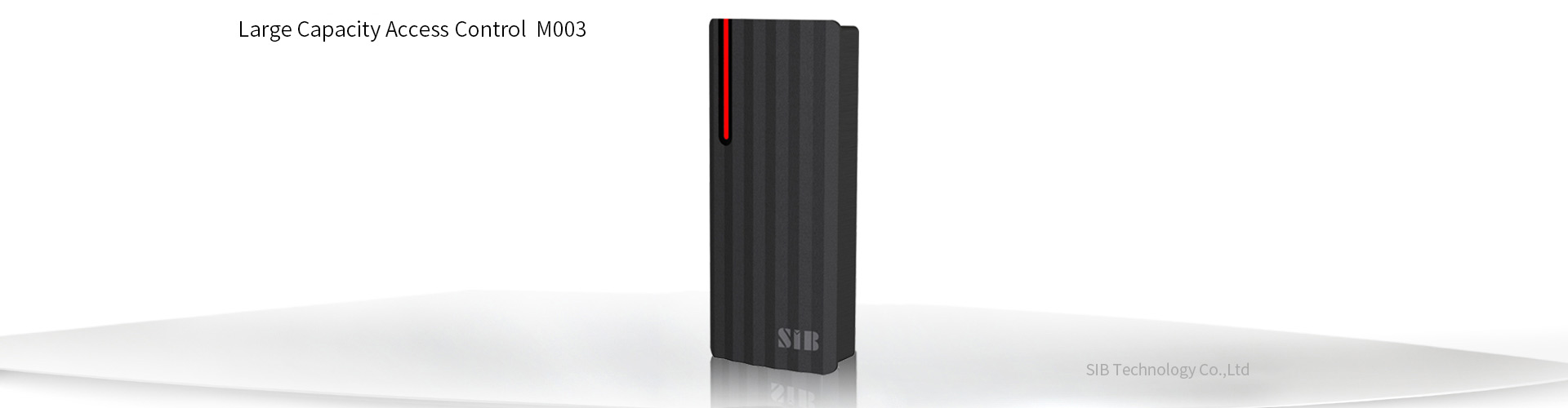

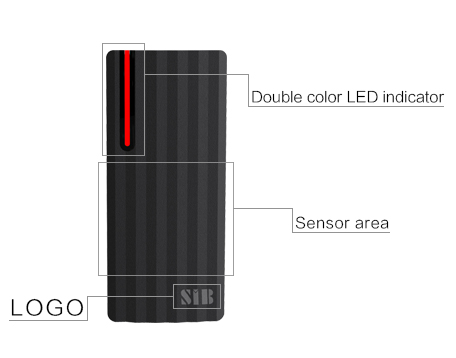

Product presentation

10000 users
waterproof IP68
Can be standalone or set to reader mode
Support relay toggle mode
Data backup, from machine A to Machine B
Operate by infared remote and admin cards

Operating Temperature: -20-60°C

Product Version

Brand	Model	Card Type	Waterproof Degree	Product Name
SIB	M003EM-W	EM Card 125Khz	IP68	Mass Capacity 125Khz Card Access Controller
SIB	M003MF-W	MF Card 13.56Mhz	IP68	Big Memory 13.56Mhz Card Access Control

Technical parameters

Operating Voltage: DC 12V
Standby Current: ≤ 35mA
Operating Current: ≤100mA
Operating Temperature: -35℃~60℃
Operating Humidity: 0%~95%
Electric lock signal relay contact current：≤1A
Alarm signal MOS tube output current: ≤1A
Unlocking time: 0~300s adjustable

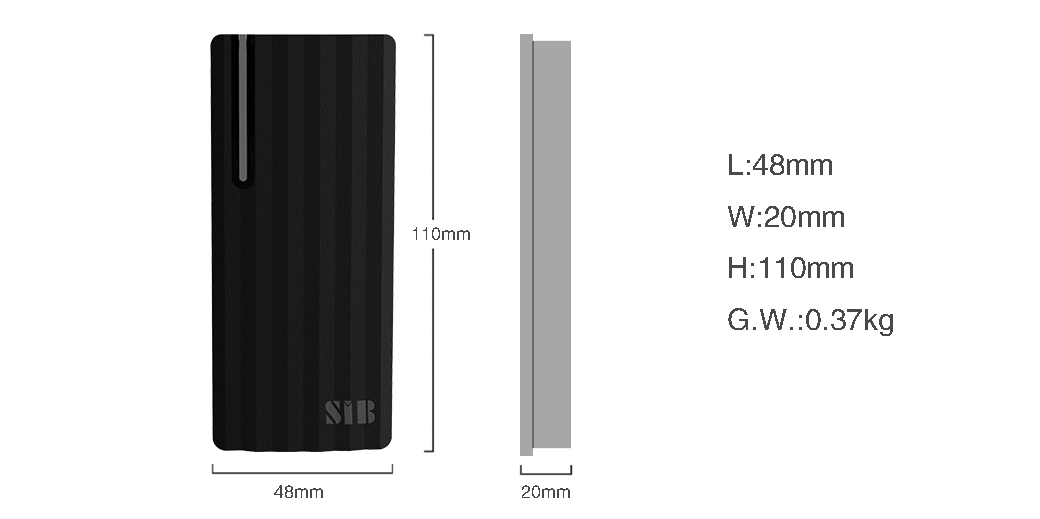

Size & Weight

Package size

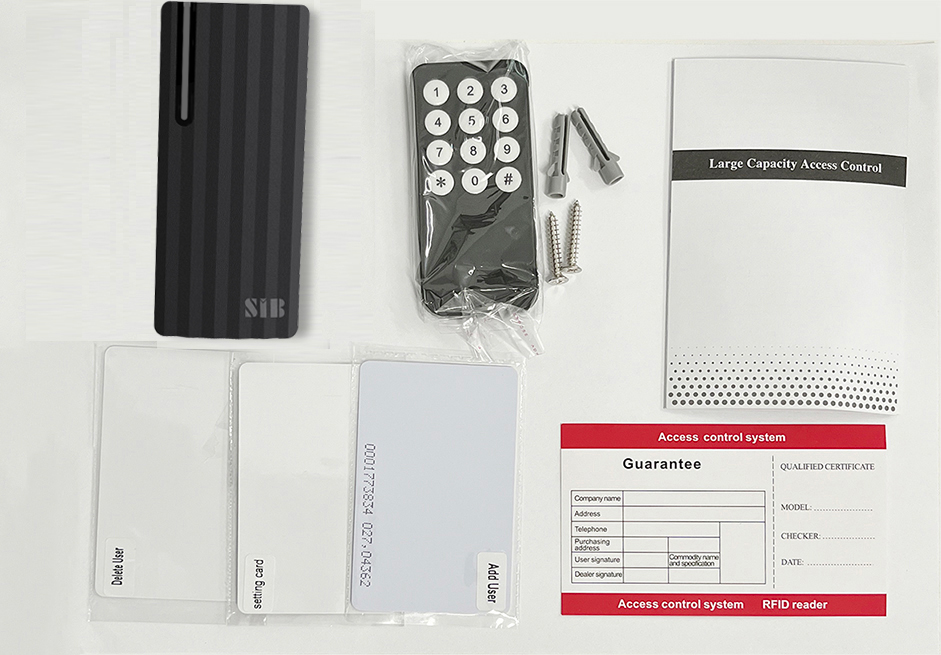

Packing list

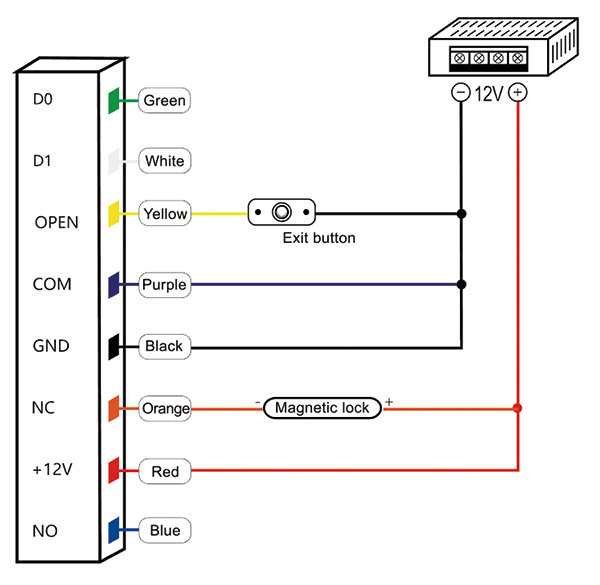

Common power supply diagram

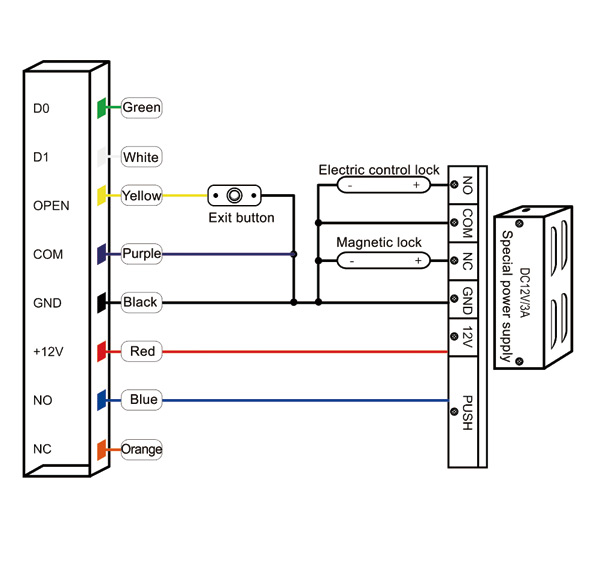

Special power supply diagram

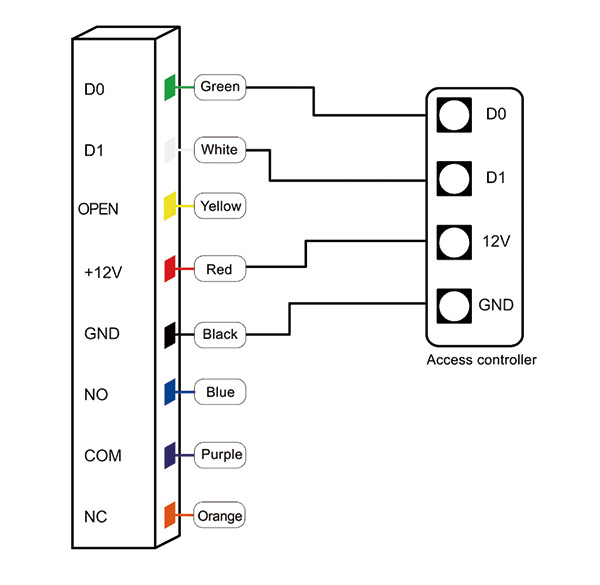

Reader mode diagram
