Product presentation
Metal case,anti-vandal

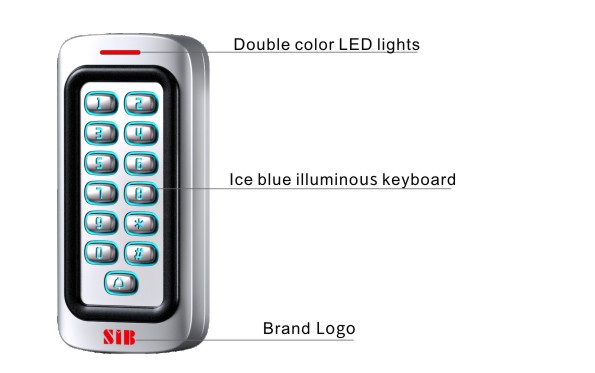

Ice-blue luminous digital keyboards
Waterproof rating IP68
Access way: card,code,card+code,tuya App(optional)
Support admin add card,delete card
Capacity:2000 card users
Can set Standalone access control mode, Toggle relay mode, Reader mode
WG26/34 input/output
With data backup function
Product Version
|
Brand |
Model |
Card Type |
Waterproof Degree |
Product Name |
|
SIB |
K610EM |
EM Card 125Khz |
Indoor |
Ice Blue illuminated Keyboard Metal Access Control |
|
SIB |
K610MF |
MF Card 13.56Mhz |
Indoor |
Mifare Card Metal Keypad Access Control |
|
SIB |
K610EM-W |
EM Card 125Khz |
IP68 |
Waterproof 125Khz Metal Access Control |
|
SIB |
K610MF-W |
MF Card 13.56Mhz |
IP68 | Mifare Outdoor Use Metal Access Control |
|
SIB |
K610EM-W(Tuya) |
MF Card 13.56Mhz |
IP68 |
Tuya Mobile APP Keyboard Metal Access Control |
|
SIB |
K610MF-W(Tuya) |
MF Card 13.56Mhz |
IP68 |
13.56Mhz WiFi Access Control |
Technical parameters
Card type:EM/MF
Static electricity: ≤30mA
Working voltage: DC12V
Ambient temperature: -45 ℃ ~ 60 ℃
Reading Range:3-6cm
Electric lock output: ≤1A
Humidity: 10% to 90% RH
Short-circuit Protect: ≤100μS
Door Opening Time:0-99s(Adjustable)

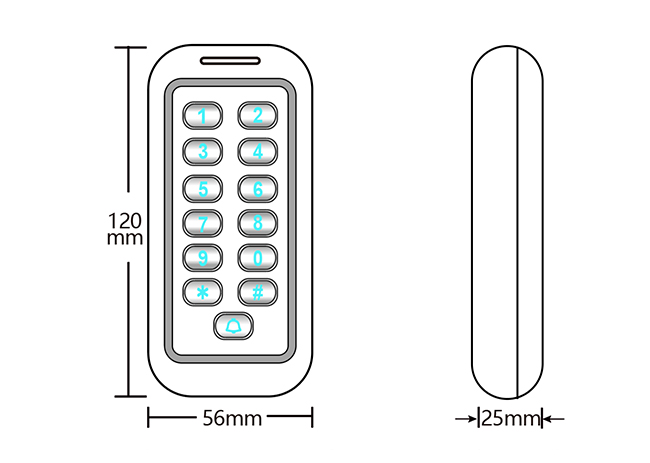

Product dimension
Common power supply diagram
Special power supply diagram
Reader mode diagram
