Product presentation

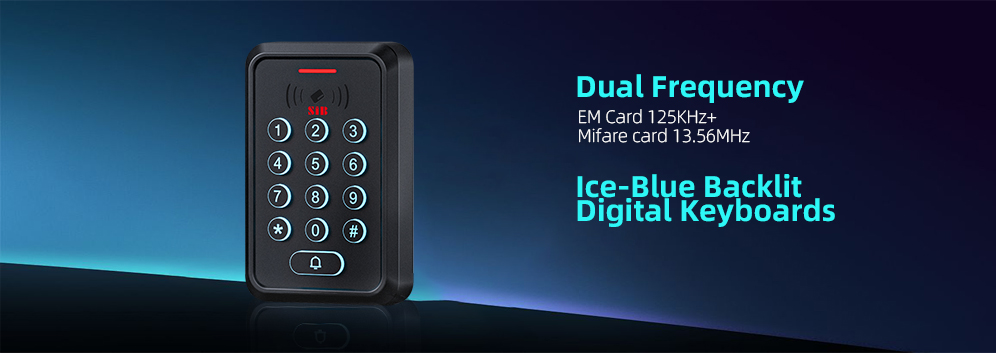

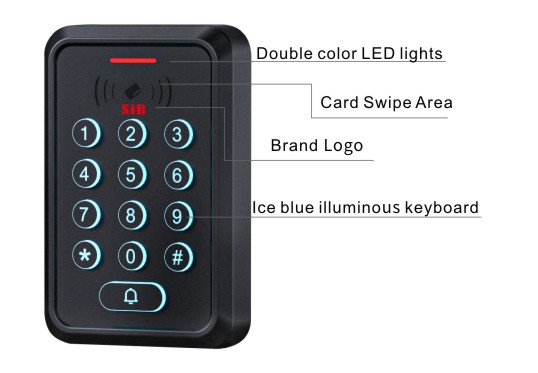

Ice-blue luminous backlit digital keyboards

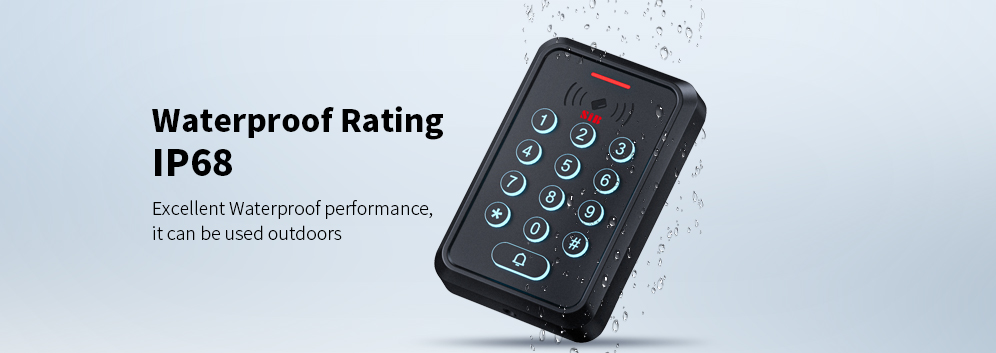

Waterproof rating IP68
Access way: card,code,card+code,tuya App(optional)
Support admin add card,delete card
Capacity:2000 card users
Can set Standalone access control mode, Toggle relay mode, Reader mode
WG26/34 input/output
With data backup function
Product Version
|
Brand |
Model |
Card Type |
Waterproof Degree |
Product Name |
|
SIB |
K310EM |
EM Card 125Khz |
Indoor |
Ice Blue illuminated Keyboard Metal Access Control |
|
SIB |
K310MF |
MF Card 13.56Mhz |
Indoor |
Mifare Card Metal Keypad Access Control |
|
SIB |
K310EF |
125Khz+13.56Mhz |
Indoor |
Dual Frequency Ice Blue KeyPad Access Control |
|
SIB |
K310EM-W |
EM Card 125Khz |
IP68 |
Waterproof 125Khz keypad Access Control |
|
SIB |
K310MF-W |
MF Card 13.56Mhz |
IP68 | Mifare Outdoor Use keypad Access Control |
| SIB |
K310EF-W |
125Khz+13.56Mhz |
IP68 |
Dual Frequency waterproof Access Control |
|
SIB |
K310EM-W(Tuya) |
MF Card 13.56Mhz |
IP68 |
Tuya Mobile APP Keyboard Access Control |
|
SIB |
K310MF-W(Tuya) |
MF Card 13.56Mhz |
IP68 |
13.56Mhz WiFi Access Control |
|
SIB |
K310EF-W(Tuya) |
125Khz+13.56Mhz |
IP68 |
tuya Smart APP WiFi Access Control |
Technical parameters
Card type:EM/MF/EM+MF/HID
Static electricity: ≤30mA
Working voltage: DC12V±10%
Ambient temperature: -45 ℃ ~ 60 ℃
Reading Range:2~5cm
Electric lock output: ≤1A
Humidity: 10% to 90% RH
Short-circuit Protect: ≤100μS
Door Opening Time:0-99s(Adjustable)

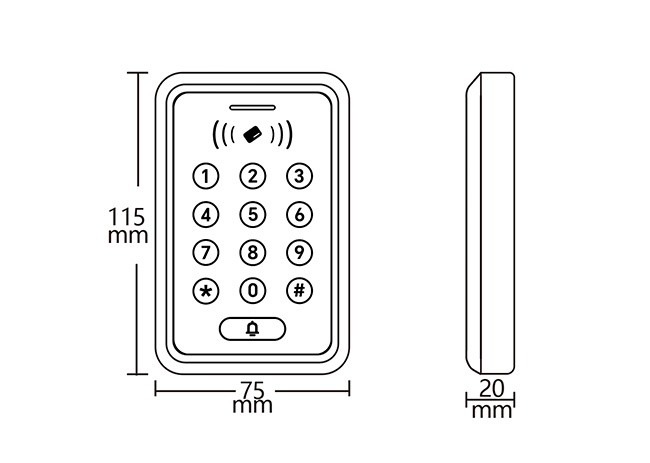

Product dimensions
Common power supply diagram
Special power supply diagram
Reader mode diagram
