Product presentation
Capacity：1000 cards/codes,200 fingerprints
WG26-58 input/output
With data backup function
Can set admin add/delete card
Adjustable volume，multiple language choices
Access ways:fingerprint,card,code,mobie APP(optional)
Waterproof IP68
Tuya Wifi function (optional)
Remote unlock & manage users by mobile phone App
Check visitor records
Set temporary code
Product Version
|
Brand |
Model |
Card Type |
Waterproof Degree |
Product Name |
|
SIB |
TF1AS-LCD EM |
EM Card 125Khz |
Indoor |
|
|
SIB |
TF1AS-LCD MF |
MF Card 13.56Mhz |
Indoor |
|
|
SIB |
TF1AS-LCD EF |
EM+MF Card 125Khz+13.56Mhz |
Indoor |
|
|
SIB |
TF1AS-LCD EM-W |
EM Card 125Khz |
IP68 |
|
|
SIB |
TF1AS-LCD MF-W |
MF Card 13.56Mhz |
IP68 |
|
|
SIB |
TF1AS-LCD EF-W |
EM+MF Card 125Khz+13.56Mhz |
IP68 |
|
|
SIB |
TF1AS-LCD EM-W(WIFI) |
EM Card 125Kh |
IP68 |
|
|
SIB |
TF1AS-LCD MF-W(WIFI) |
MF Card 13.56Mhz |
IP68 |
|
|
SIB |
TF1AS-LCD EF-W(WIFI) |
EM+MF Card 125Khz+13.56Mhz |
IP68 |
|
Technical parameters
Card type：EM/MF/HID/CPU
Capacity: 10000cards/codes&200fingerprints
waterproof IP68
Environment Humidity：10%～90%
Lock output：≤1A
Working voltage：DC12-24V
Static electricity：≤35mA
Alarm output：≤20A
Output short circuit protection time：≤100μS
Card read distance：2～5cm
Ambient temperature：-40℃～60℃
Door Opening Time: 0～99s

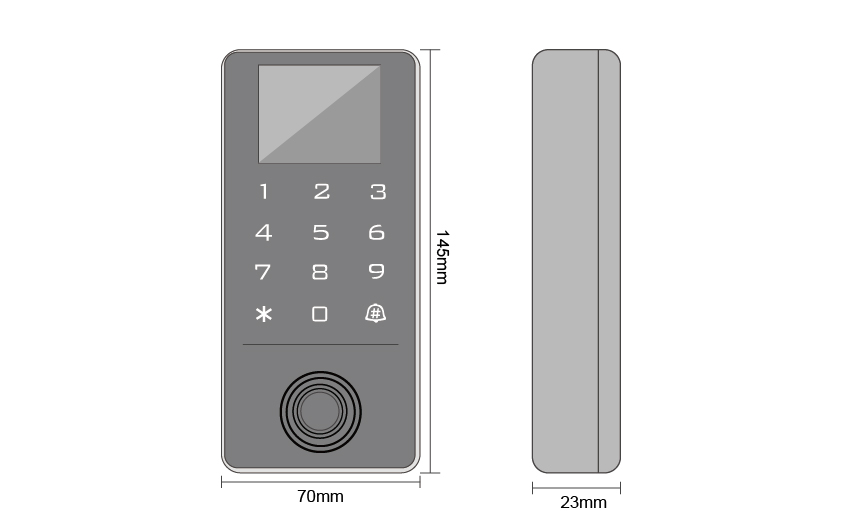

Product Dimension
Package size

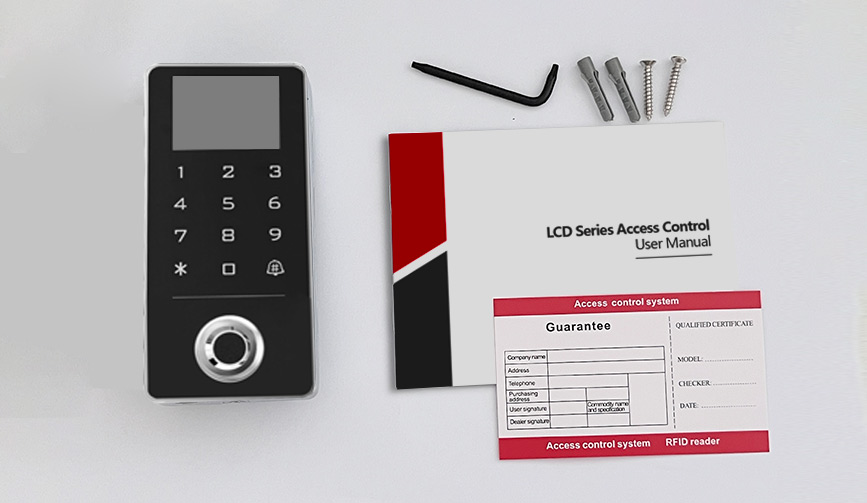

Packing list
Common power supply diagram
Reader mode diagram
