Product presentation

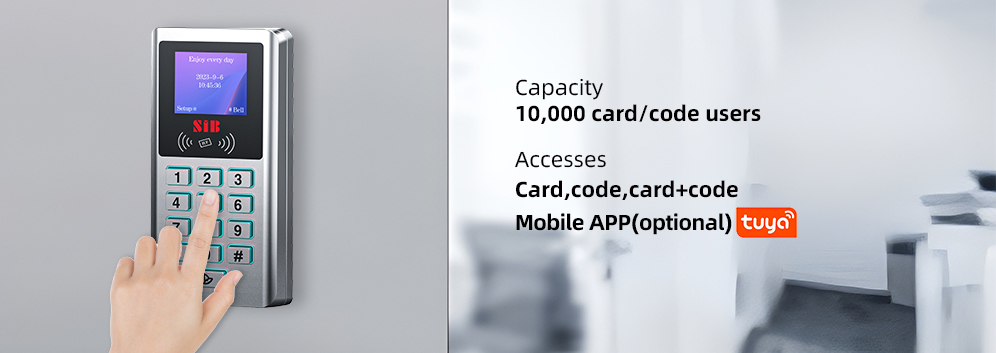

Capacity:10,000 cards/codes
WG26/34 input/output
With data backup function
Can set admin add/delete card

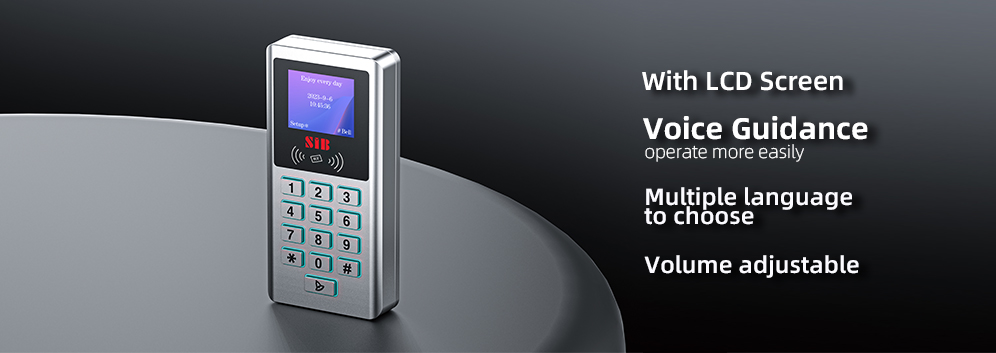

Voice Guidance, operate more easily
Adjustable volume,multiple language choices
Access ways:card,code,mobile APP(optional)

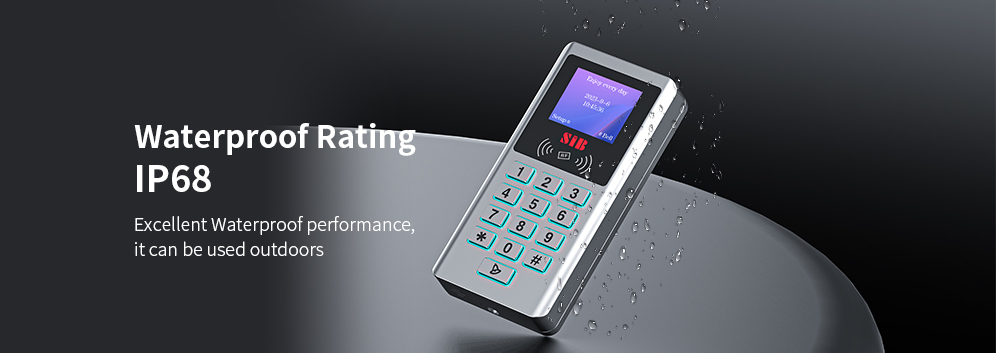

Waterproof IP68

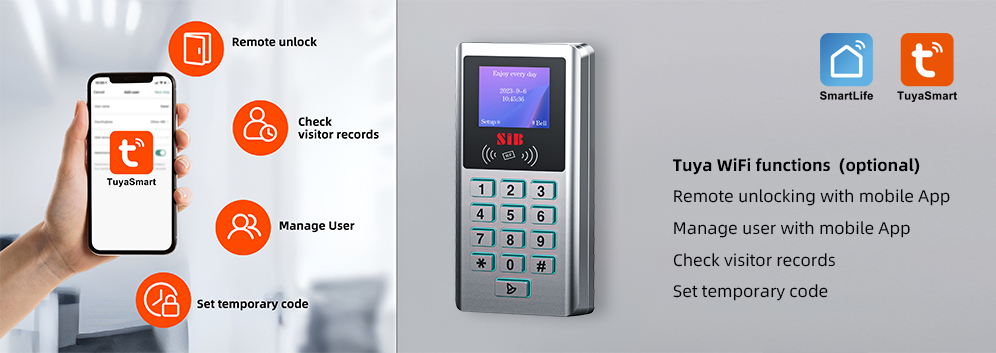

Tuya WiFi function (optional)
Remote unlock & manage users by mobile App
Check visitor records
Set temporary code
Product Version
|
Brand |
Model |
Card Type |
Waterproof Degree |
Product Name |
|
SIB |
KL501-LCD EM |
EM Card 125Khz |
Indoor |
EM 125Khz keypad access control with LCD screen |
|
SIB |
KL501-LCD MF |
MF Card 13.56Mhz |
Indoor |
Mifare 13.56MHz Metal Backlit keyboard access control |
|
SIB |
KL501-LCD EF |
EM+MF Card 125Khz+13.56Mhz |
Indoor |
Dual-frequency card,code access control |
|
SIB |
KL501-LCD EM-W |
EM Card 125Khz |
IP68 |
EM 125Khz waterproof Voice LCD screen access control |
|
SIB |
KL501-LCD MF-W |
MF Card 13.56Mhz |
IP68 |
Outdoor Metal keypad access control with LCD screen |
|
SIB |
KL501-LCD EF-W |
EM+MF Card 125Khz+13.56Mhz |
IP68 |
Dual-frequency IP68 waterproof Voice access control |
|
SIB |
TKL501-LCD EM-W(WIFI) |
EM Card 125Kh |
IP68 |
Remote unlocking waterproof Voice LCD Screen access control |
|
SIB |
KL501-LCD MF-W(WIFI) |
MF Card 13.56Mhz |
IP68 |
Tuya app smart Voice Door Lock with LCD screen |
|
SIB |
KL501-LCD EF-W(WIFI) |
EM+MF Card 125Khz+13.56Mhz |
IP68 |
Tuya App WiFi dual-frequency waterproof access control |
Technical parameters
Card type：EM/MF/HID/CPU
Capacity: 10000cards/codes&200fingerprints
waterproof IP68
Environment Humidity：10%～90%
Lock output：≤1A
Working voltage：DC12-24V
Static electricity：≤35mA
Alarm output：≤20A
Output short circuit protection time：≤100μS
Card read distance：2～5cm
Ambient temperature：-40℃～60℃
Door Opening Time: 0～99s
Product Dimension
Package size

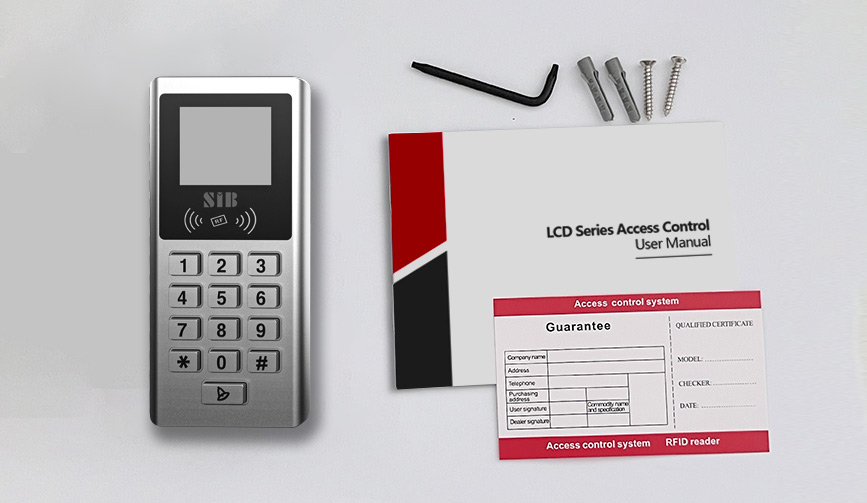

Packing list
Common power supply diagram
Reader mode diagram
