Product presentation
10000 users
waterproof IP68
Can be standalone or set to reader mode
Support relay toggle mode
Data backup, from machine A to Machine B
Operate by infared remote and admin cards
Operating Temperature: -20-60°C
Product Version
|
Brand |
Model |
Card Type |
Waterproof Degree |
Product Name |
|
SIB |
MT1101EM |
EM Card 125Khz |
Indoor |
Proximity Card Access Controller |
|
SIB |
MT1101EH |
EM+H Card 125Khz |
Indoor |
EM card & HID Tags Single Door Access Control |
|
SIB |
MT1101EM-W |
EM Card 125Khz |
IP68 |
Waterproof 125Khz Wristband Door Access Control |
|
SIB |
MT1101EH-W |
EM+H Card 125Khz |
IP68 |
Outdoor EM fobs & HID Card Access Control |
Technical parameters
Operating Voltage: DC 12V
Standby Current: ≤ 35mA
Operating Current: ≤100mA
Operating Temperature: -35℃~60℃
Operating Humidity: 0%~95%
Electric lock signal relay contact current：≤1A
Alarm signal MOS tube output current: ≤1A
Unlocking time: 0~300s adjustable

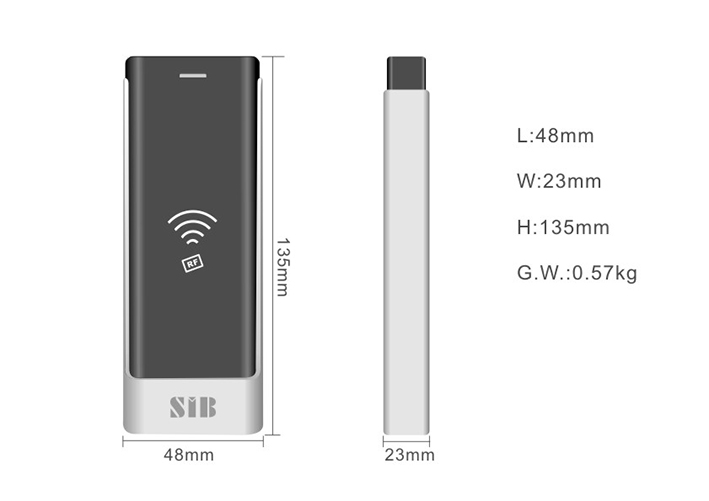

Size & Weight
Package size

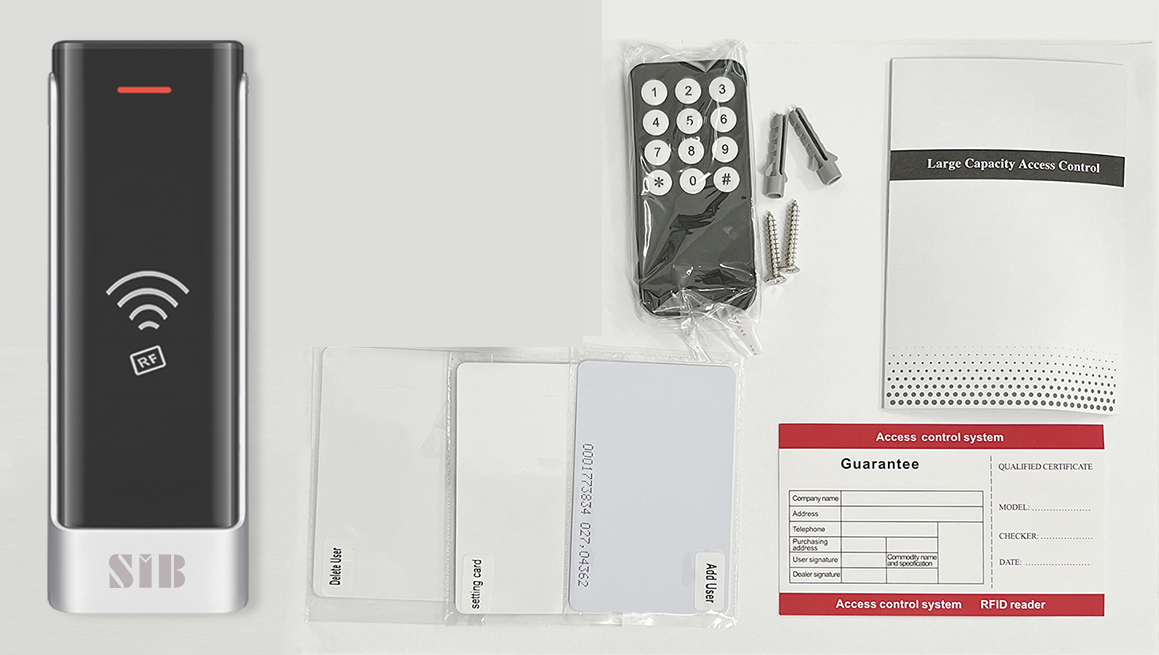

Packing list
Common power supply diagram
Special power supply diagram
Reader mode diagram
