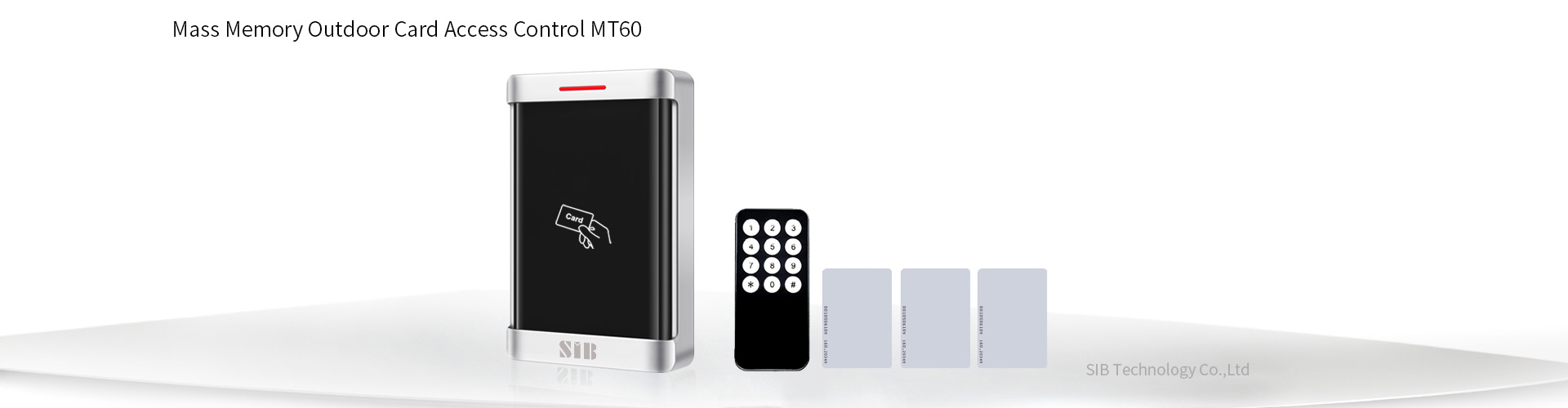

Mass Memory Outdoor Card Access Control MT60 - Big Capacity Access Control

English: 中文

Product introduction
Technical parameters
System wiring diagram
Manual Down

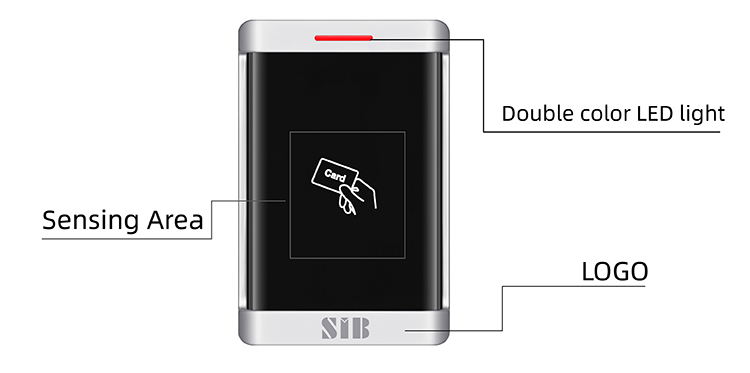

Product presentation

10000 users
waterproof IP68
Can be standalone or set to reader mode
Support relay toggle mode
Data backup, from machine A to Machine B

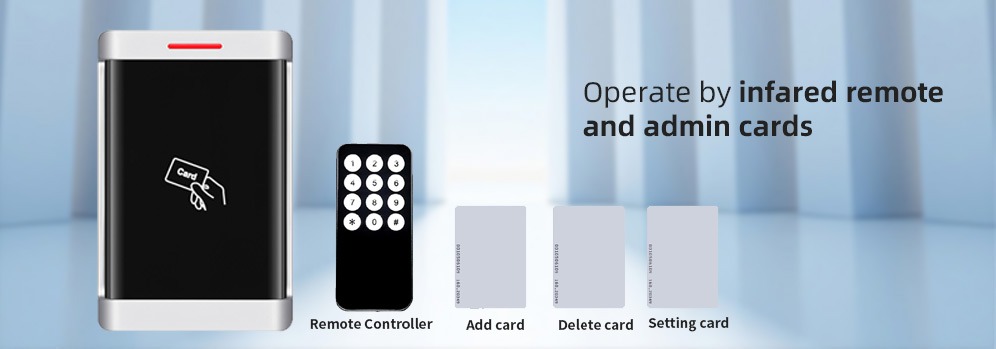

Operate by infared remote and admin cards

Operating Temperature: -20-60°C

Product Version

Brand	Model	Card Type	Waterproof Degree	Product Name
SIB	MT60EM	EM Card 125Khz	Indoor	Mass Memory Proximity Card Access Control
SIB	MT60EH	EM+H Card 125Khz	Indoor	Mass Capacity Dual Card Access Control
SIB	MT60EM-W	EM Card 125Khz	IP68	High Storage Waterpoof EM Tags Access Controller
SIB	MT60EH-W	EM+H Card 125Khz	IP68	Big Capacity Outdoor EM+HID Card Access Controller

Technical parameters

Operating Voltage: DC 12V
Standby Current: ≤ 35mA
Operating Current: ≤100mA
Operating Temperature: -35℃~60℃
Operating Humidity: 0%~95%
Electric lock signal relay contact current：≤1A
Alarm signal MOS tube output current: ≤1A
Unlocking time: 0~300s adjustable

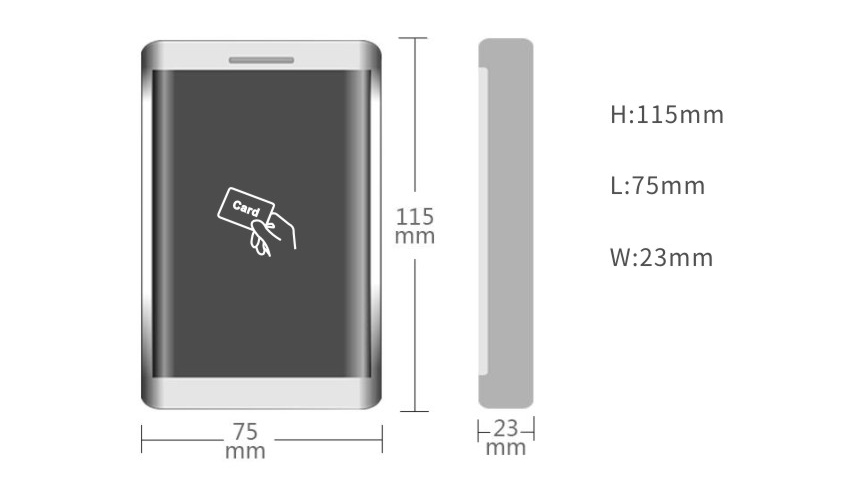

Size & Weight

Package size

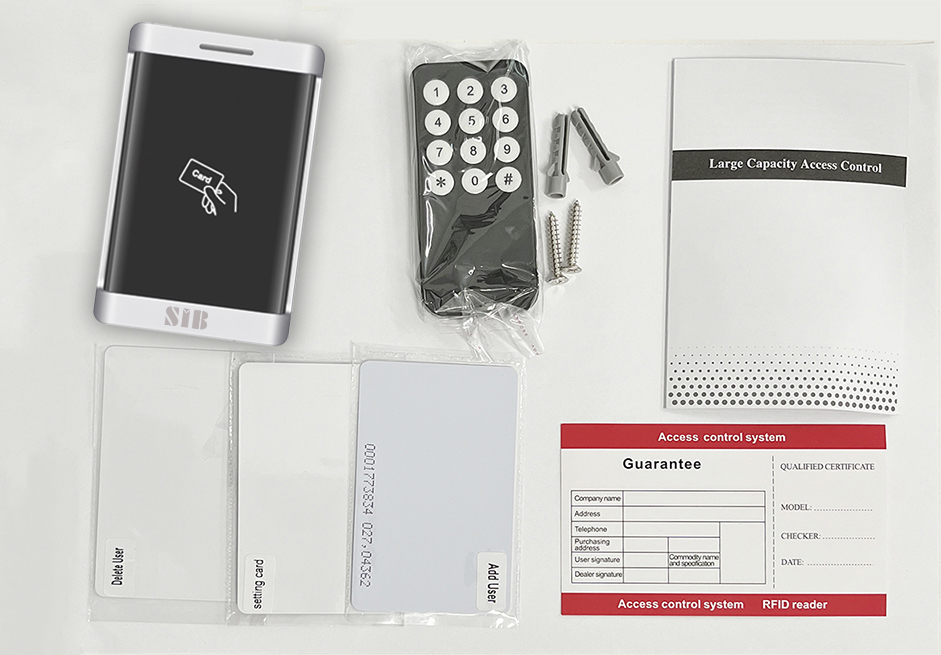

Packing list

Common power supply diagram

Special power supply diagram

Reader mode diagram

Click to download
