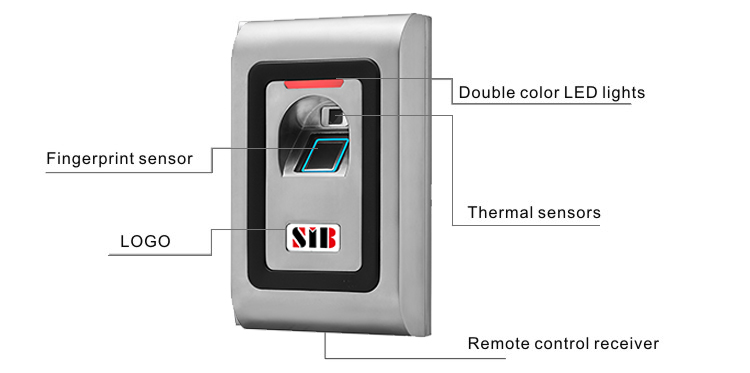

Product presentation

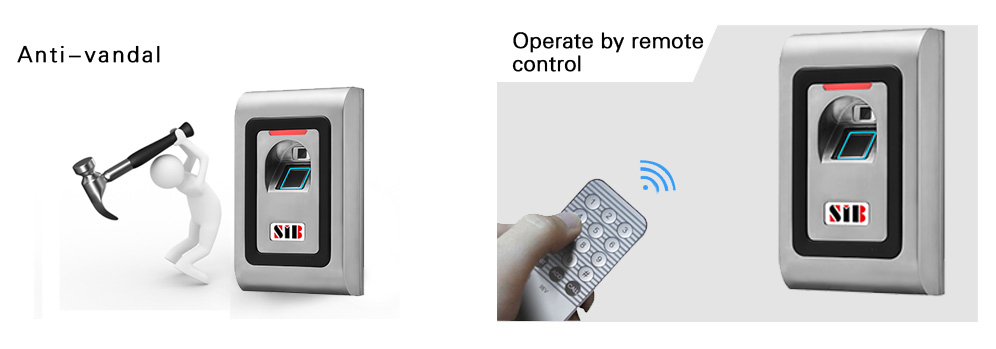

Zinc alloy case, durable, anti-vandal
Antimagnetic: can prevent untrust person
to open lock by strong magnets
Large capacity with 1,000 fingerprints & 2,000 card users
Can be used as WG26 reader
Can connect external EM/IC/HID WG26 reader
Two units can be interlocked
Product Version
Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
F2
Fingerprint
Indoor
Metal Semiconductor Sensor Biometric Access Control
SIB
F2EM
EM Card 125Khz/Fingerprint
Indoor
Metal Biometric Readers & RFID Card Access Control
Technical parameters
Card type：fingerprint
Capacity: 1,000 fingerprints
Environment Humidity：10%～90%
Lock output：≤1A
Working voltage：DC12V
Static electricity：≤30mA
Alarm output：≤20A
Output short circuit protection time：≤100μS
Card read distance：2～5cm
Ambient temperature：-40℃～60℃
Door Opening Time: 0～99s
Dimension：122 *71*34mm

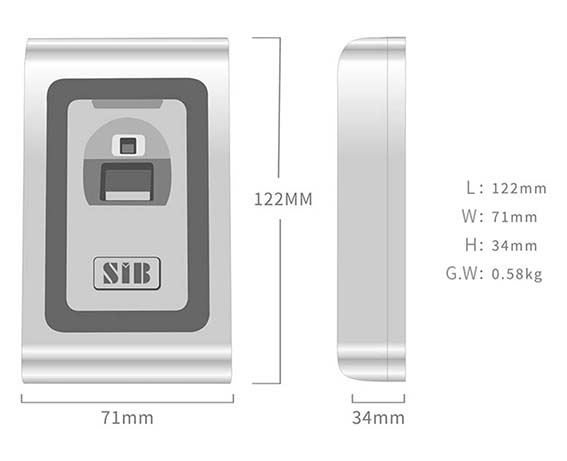

Size & Weight
Package size

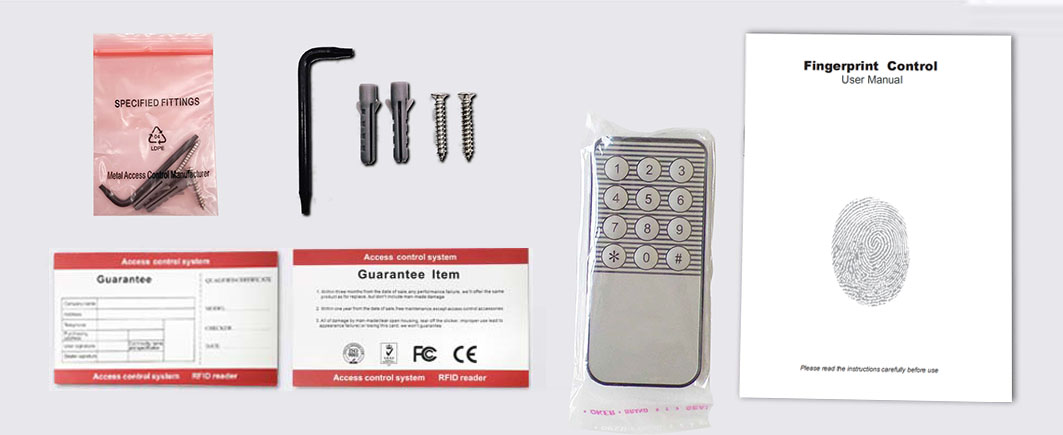

Packing list

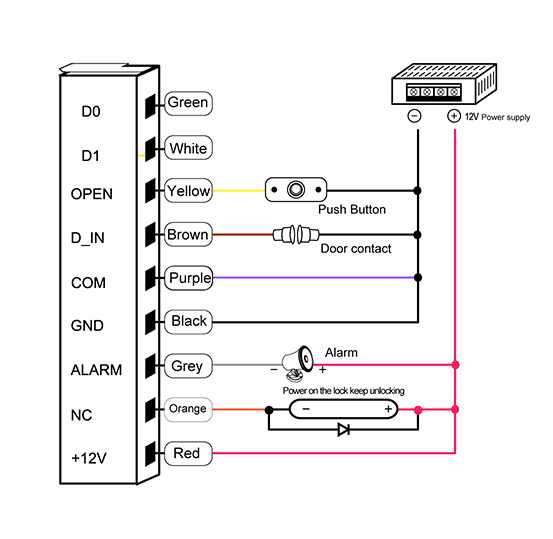

Common power supply diagram

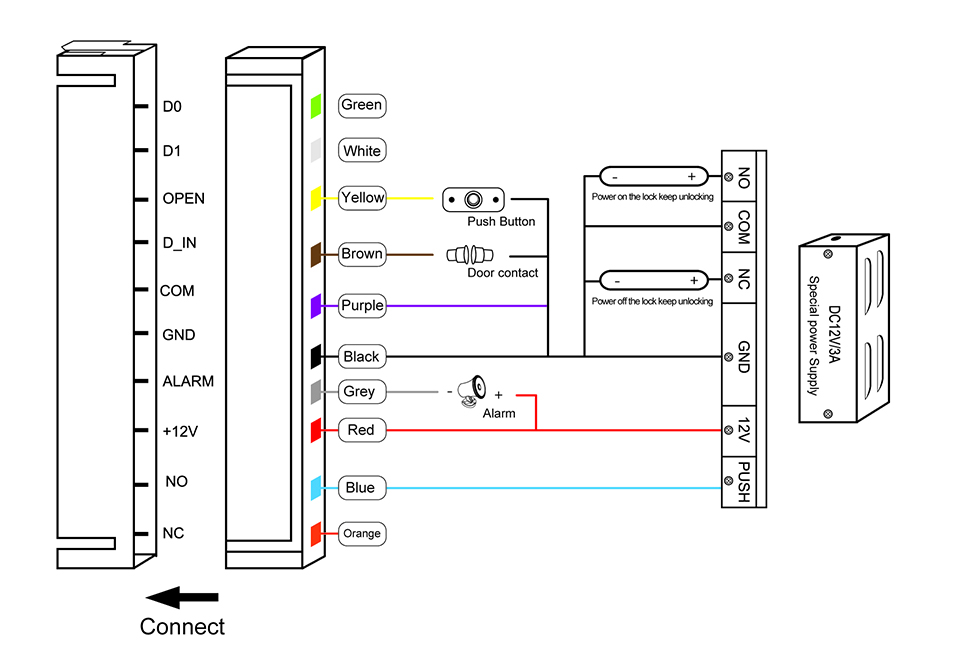

Special power supply diagram
