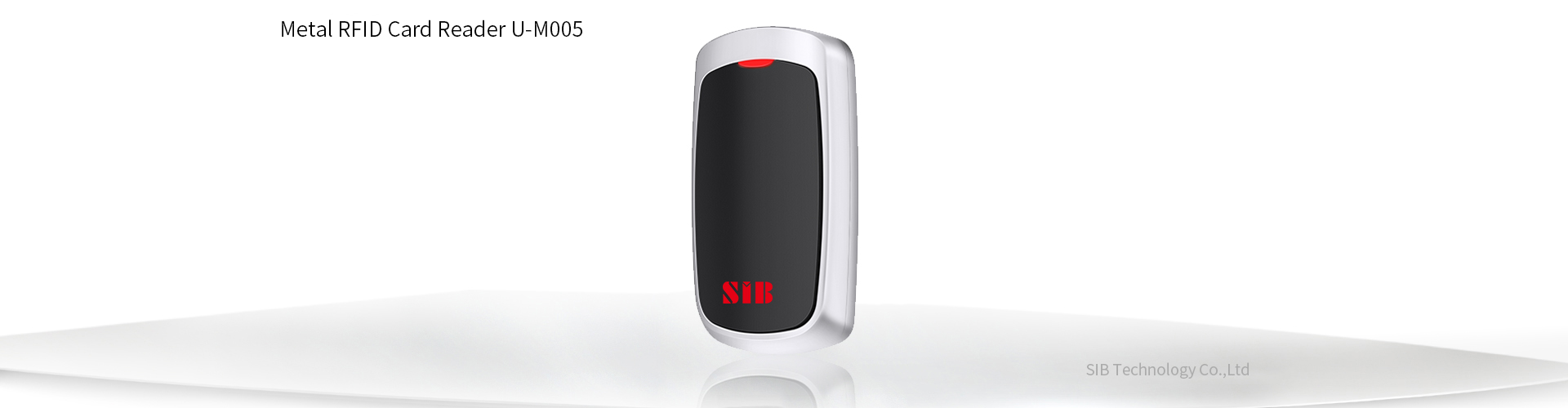

Metal Outdoor RFID Access HID Readers U-M005 - RFID Card Reader

English: 中文

Home
About SIB
Product
News
Service
Contact SIB

Product introduction
Technical parameters
System wiring diagram
Manual Down

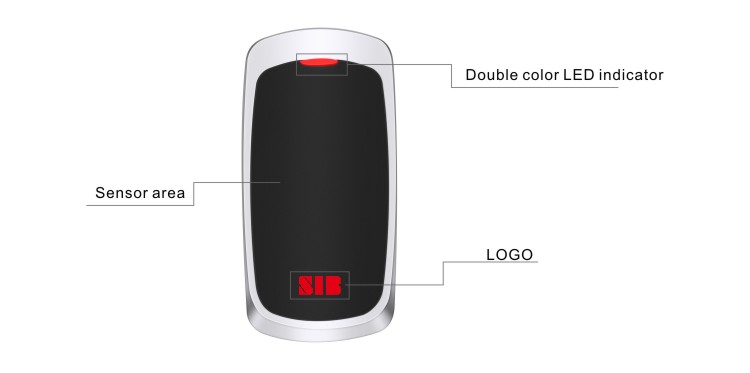

Product presentation

Material：Zinc alloy case
Idle Current: ≤30mA
WG26 input and output
Door opening time less than 0.1S

Product Version

Brand	Model	Card Type	Waterproof Degree	Product Name
SIB	U-M005EM	EM Card 125Khz	IP68	RFID on Metal EM Tag Door Card Reader
SIB	U-M005MF	MF Card 13.56Mhz	IP68	RFID on Metal Mifare Tag Gate Card Reader
SIB	U-M005H	HID Card 125Khz	IP68	RFID on Metal HID Keyfobs Gate Card Reader

Technical parameters

Card Type:EM/MF

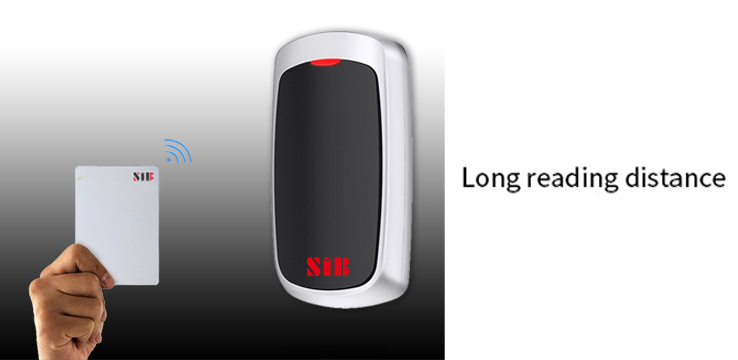

Reading Range:2-5cm

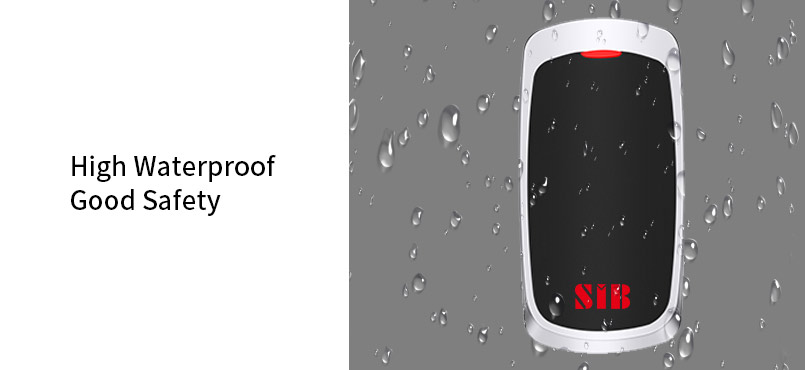

Waterproof:IP68
Working Voltage:DC12V
Idle Current:≤30mA
Wiegand interface:WG26/34
Plastic case Communication Distance:100m

Wiring Instruction

Diagram

Click to download
