Metal Outdoor Touch Screen Access Control T1302 - Touch Keypad Access Control

English: 中文

Product introduction
Technical parameters
System wiring diagram
Manual Down

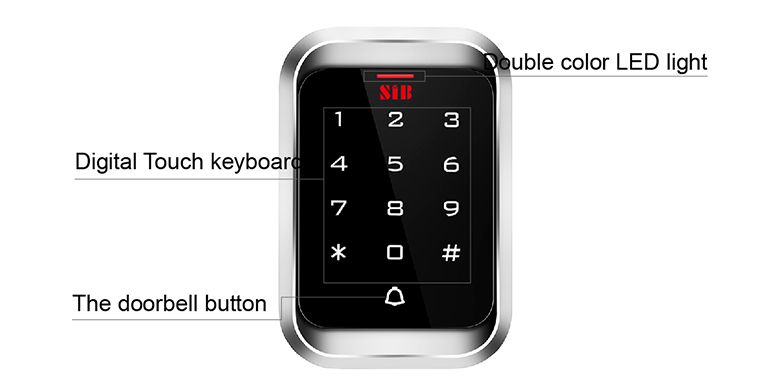

Product presentation

Metal case,anti-vandal
Capacity: 2000 users,button keypad
Access Way: Pin, Card, Pin+ Card
Backlight touch keypad
Wg26 Input/Output

2000 cards/codes in total

Product Version

Brand	Model	Card Type	Waterproof Degree	Product Name
SIB	T1302EM	EM Card 125Khz	Indoor	RFID Proximity Touch Screen Metal Door Access Control
SIB	T13021MF	MF Card 13.56Mhz	Indoor	RFID Mifare Card/Tag Touch Keypad Access Control
SIB	T1302EM-W	EM Card 125Khz	IP68	Outdoor Touch Panel RFID Proximity Card Access Control
SIB	T1302MF-W	MF Card 13.56Mhz	IP68	IP68 Touch Screen RFID Mifare Card Access Control

Technical parameters

Card Type:EM/MF
Alarm Output Load:≤20A
Working Voltage:DC12—24V
Idle Current:≤30mA
ReadingRange:2—5cm
Operating Temperature:-45~60℃
Operating Humidity:10%—90%
Lock Output Load:≤3A
Door Opening Time:0~99s(Adjustable)
Short-circuit Protect:≤100um

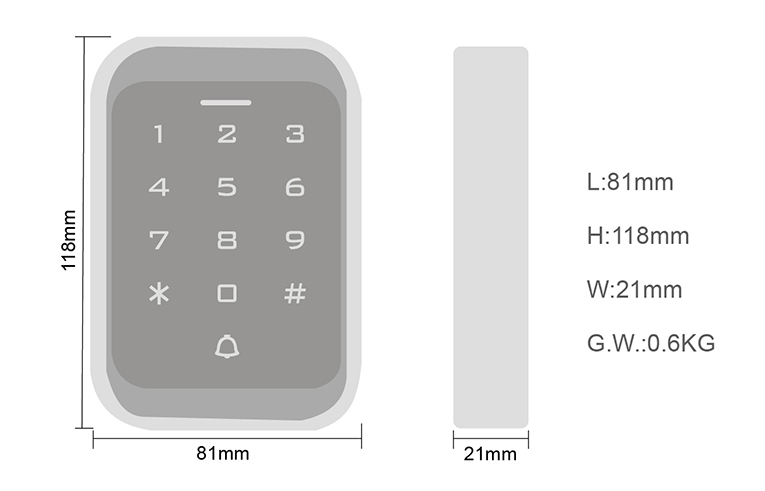

Product dimensions

Package size

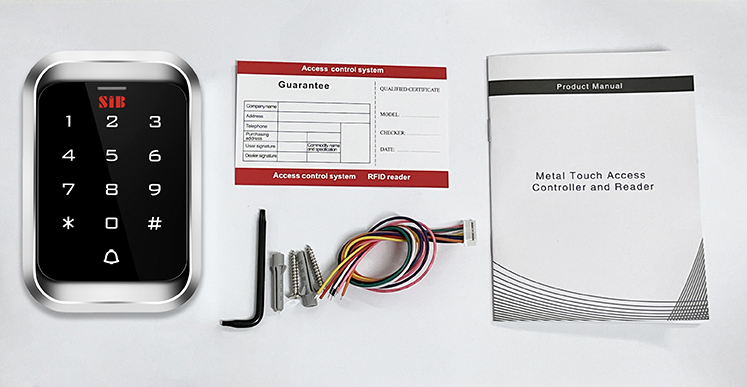

Packing list

Common power supply diagram

Special power supply diagram

Reader mode

Click to download
