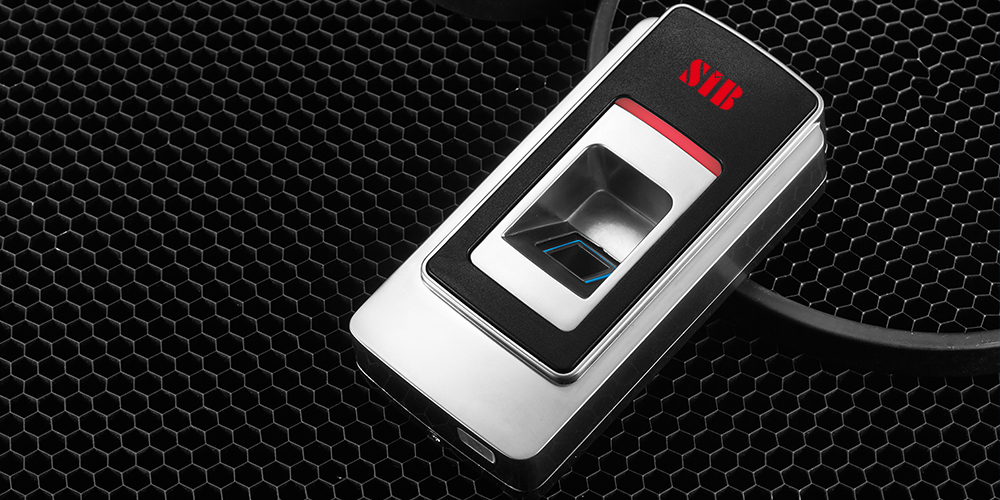

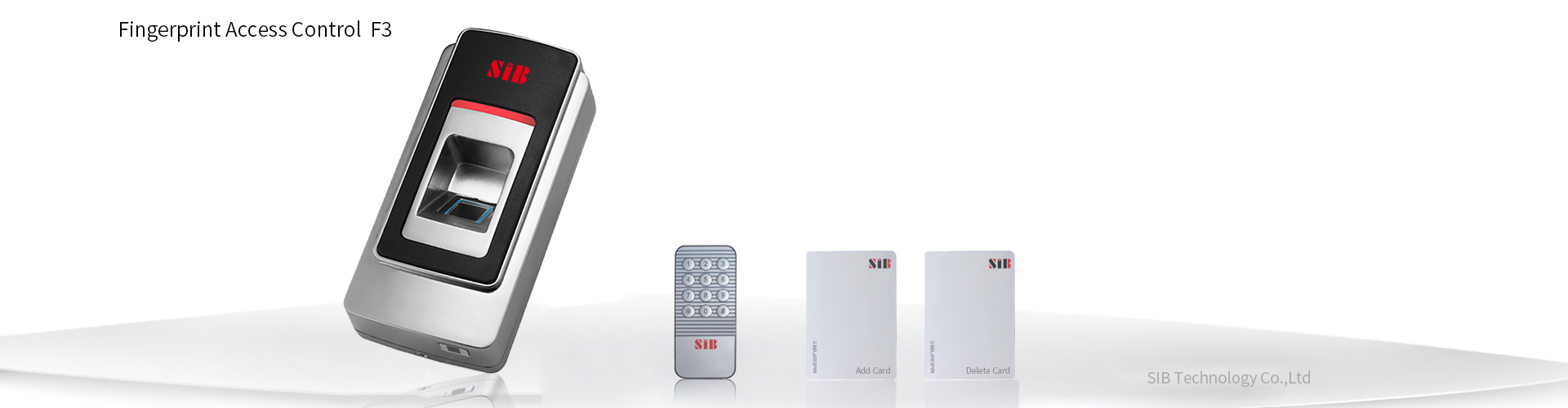

Metal Semiconductor Sensor Biometric Reader F3 - Fingerprint Access Control

sbwy@sbwy.net 0086-755-26510155

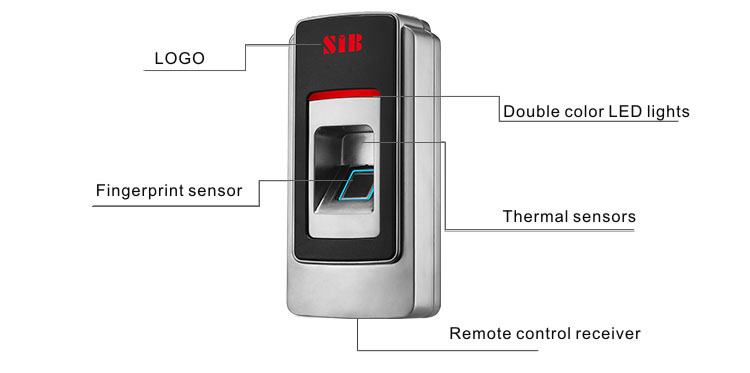

Product presentation

Zinc alloy case, durable, anti-vandal

Antimagnetic: can prevent untrust person

to open lock by strong magnets

Large capacity with 1,000 fingerprints & 2,000 card users

Can be used as WG26 reader

Can connect external EM/IC/HID WG26 reader

Two units can be interlocked

Product Version

Brand	Model	Card Type	Waterproof Degree	Product Name
SIB	F3EM	EM Card 125Khz/Fingerprint	Indoor	Metal Proximity Readers & Fingerprint Access Control
SIB	F3EM-W	EM Card 125Khz/Fingerprint	IP68	Waterproof Metal EM Readers & Biometric Access Control

Technical parameters

Card type：MF

Capacity: 200fingerprints&500cards

Environment Humidity：10%～90%

lock output：≤1A

Working voltage：DC12V

Static electricity：≤30mA Alarm output：≤20A

Output short circuit protection time：≤100μS

Card read distance：2～5cm

Ambient temperature：-35℃～60℃

Door Opening Time: 0～99s

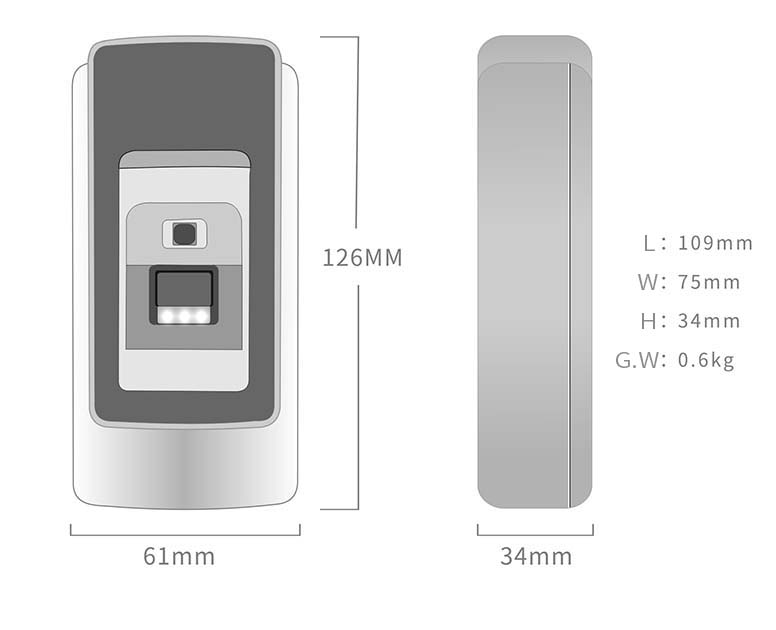

Dimension：126 *61*34mm

Size & Weight

Package size

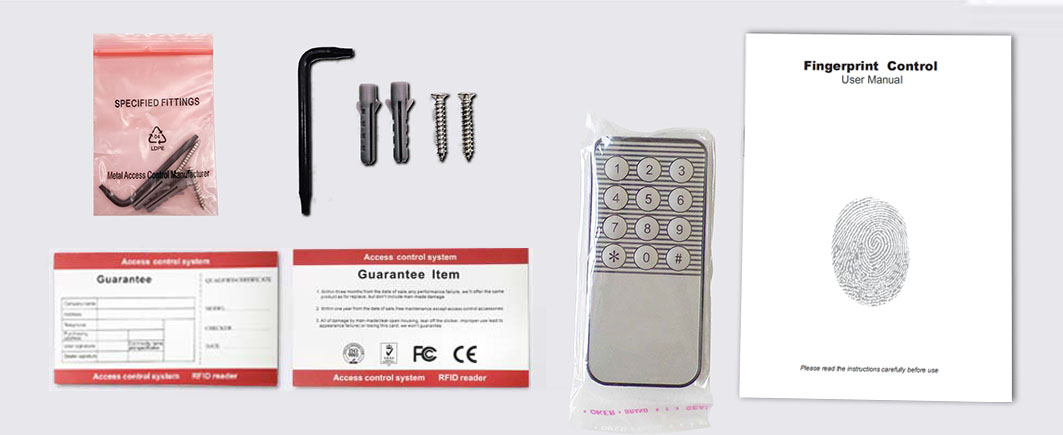

Packing list

Common power supply diagram

Special power supply diagram
