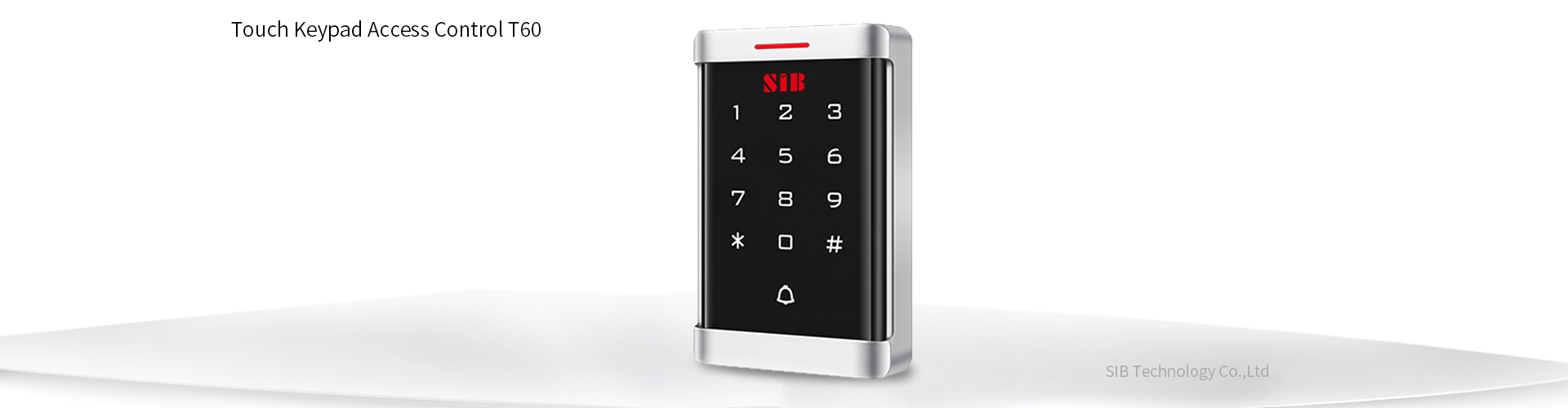

Product presentation
Three way to open the door:
card, password, card + password
Product Version
Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
T60EM
EM Card 125Khz
Indoor
EM Metal Touch Mullion Keypad Gate Entry
SIB
T60MF
MF Card 13.56Mhz
Indoor
Mifare Metal Touch Mullion Keypad Door Entry
SIB
T60EM-W
EM Card 125Khz
IP68
Waterproof RFID 125KHZ Single Gang Reader & Controller
SIB
T60MF-W
MF Card 13.56Mhz
IP68
Outdoor RFID 13.56Mhz Single Gang Access Controller
Technical parameters
Card type：EM/MF
Capacity: 2,000
Environment Humidity：10%～90%
Lock output：≤1A
Working voltage：DC12V±10％
Static electricity：≤30mA
Alarm output：≤20A
Output short circuit protection time：≤100μS
Card read distance：2～5cm
Ambient temperature：-40℃～60℃
Door Opening Time: 0～99s
Dimension：115 *75*23mm
Package size

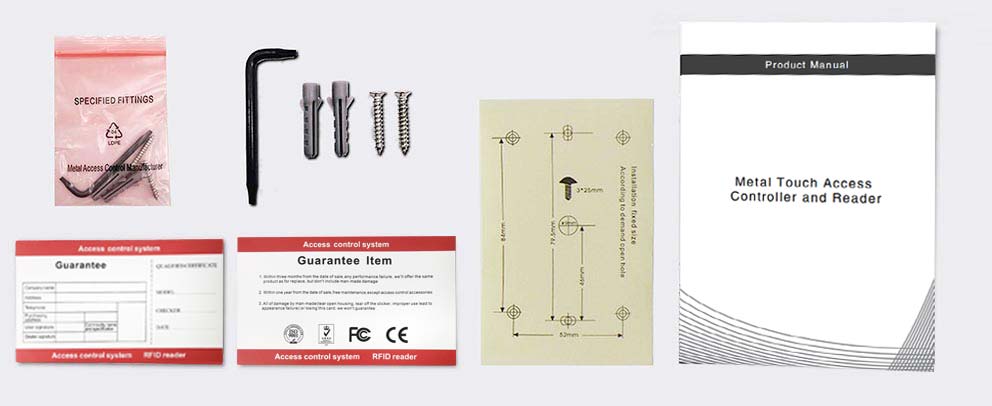

Packing list
Common power supply diagram
Special power supply diagram
