Product presentation
Metal case, anti-vandal

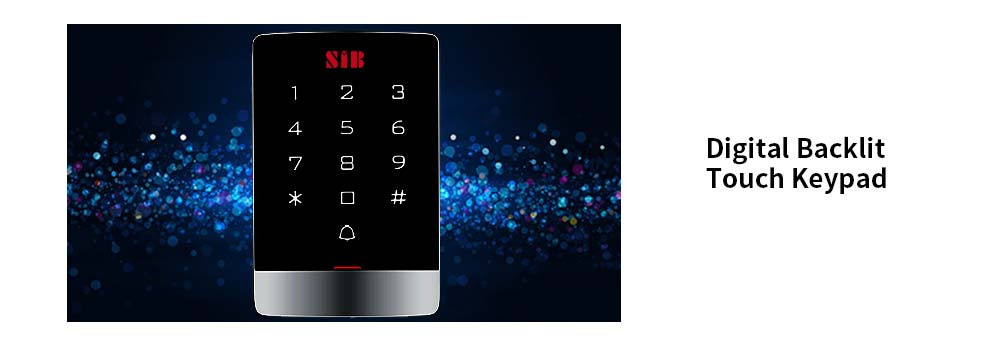

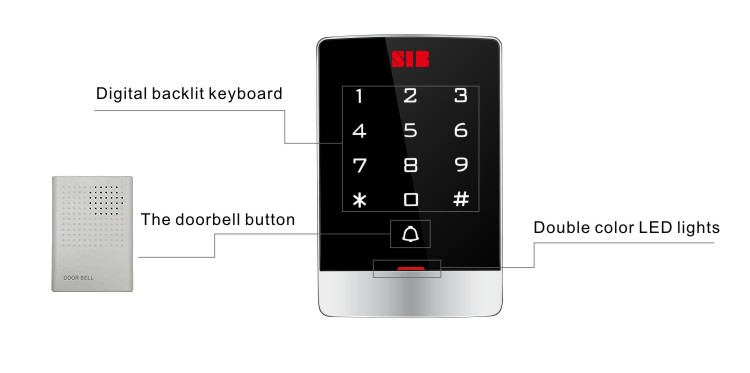

Digital backlit touch keypad
Multi-function standalone access
controller and reader,

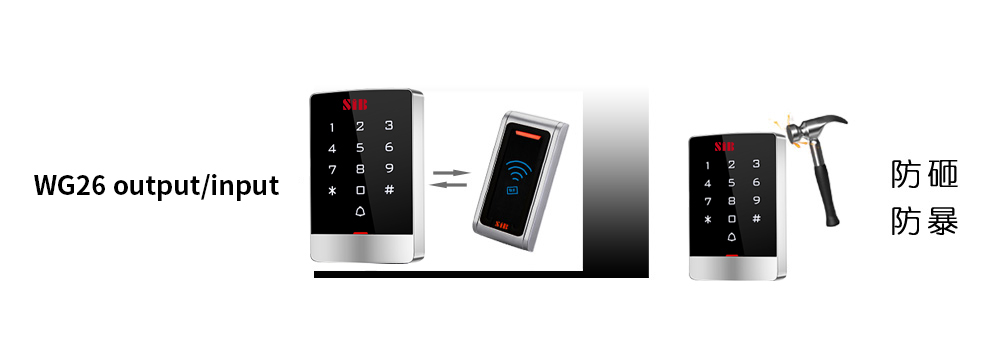

WG26 output/Input
Capacity: 2000 cards/ codes
Three way to open the door:
card, password, card + password
Product Version
|
Brand |
Model |
Card Type |
Waterproof Degree |
Product Name |
|
SIB |
T9EM |
EM Card 125Khz |
Indoor |
EM Wristband Touch Standalone Access Control |
|
SIB |
T9MF |
MF Card 13.56Mhz |
Indoor |
Mifare Label Touch Single Door Access Control |
|
SIB |
T9EM-W |
EM Card 125Khz |
IP68 |
Waterproof EM Badges RFID Keypad Access Control |
|
SIB |
T9MF-W |
MF Card 13.56Mhz |
IP68 |
Waterproof Mifare Tag RFID Password Access Control |
Technical parameters
Card type：EM/MF
Capacity: 2,000
Environment Humidity：10%～90%
Lock output：≤1A
Working voltage：DC12V
Static electricity：≤30mA Alarm output：≤20A
Output short circuit protection time：≤100μS
Card read distance：2-5cm
Ambient temperature：-40℃～60℃
Door Opening Time: 0～99s(Adjustable)
Dimension：121 *79*21mm

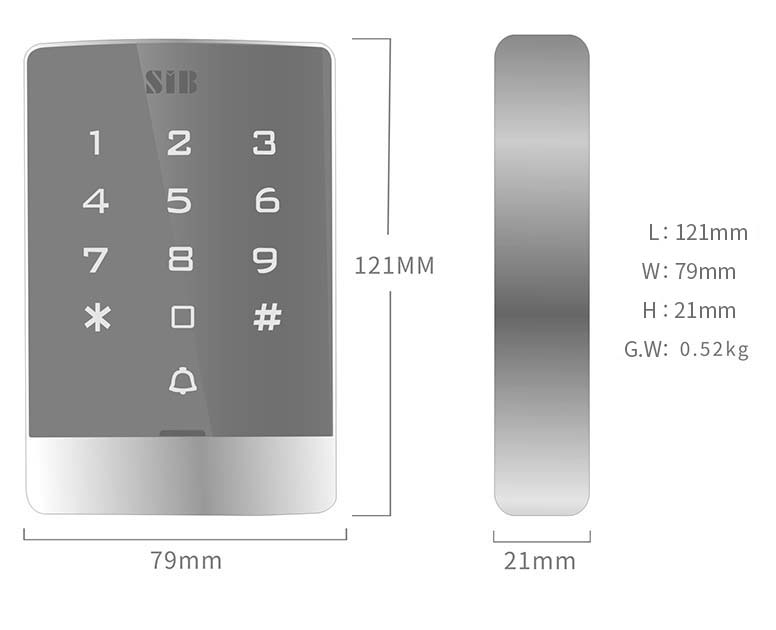

Size & Weight
Package size

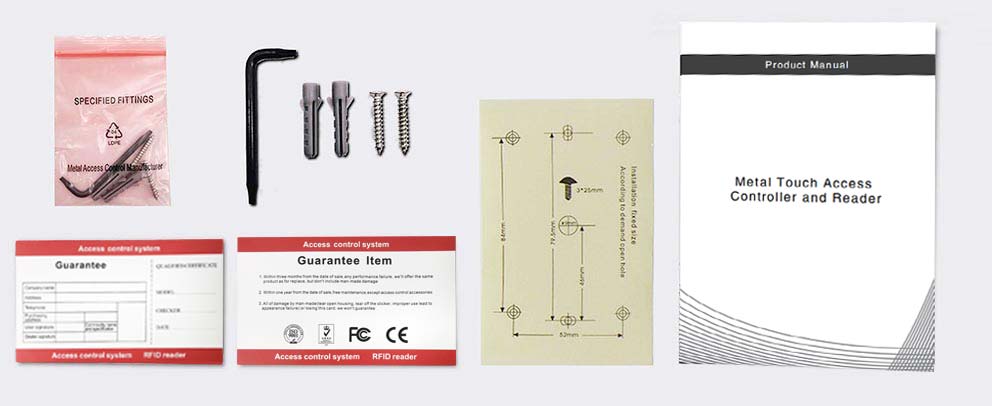

Packing list
Common power supply diagram
Special power supply diagram
