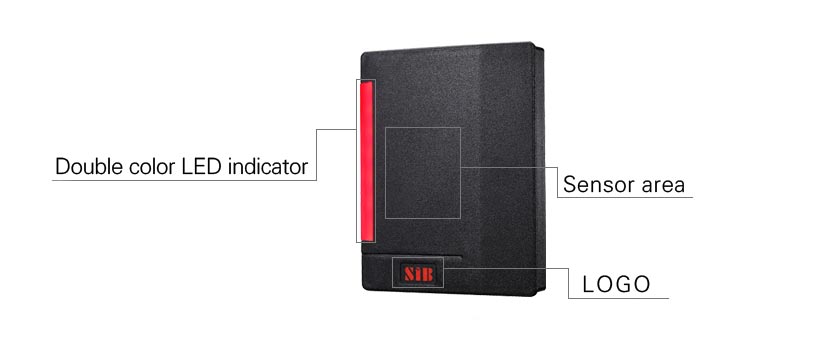

Product presentation

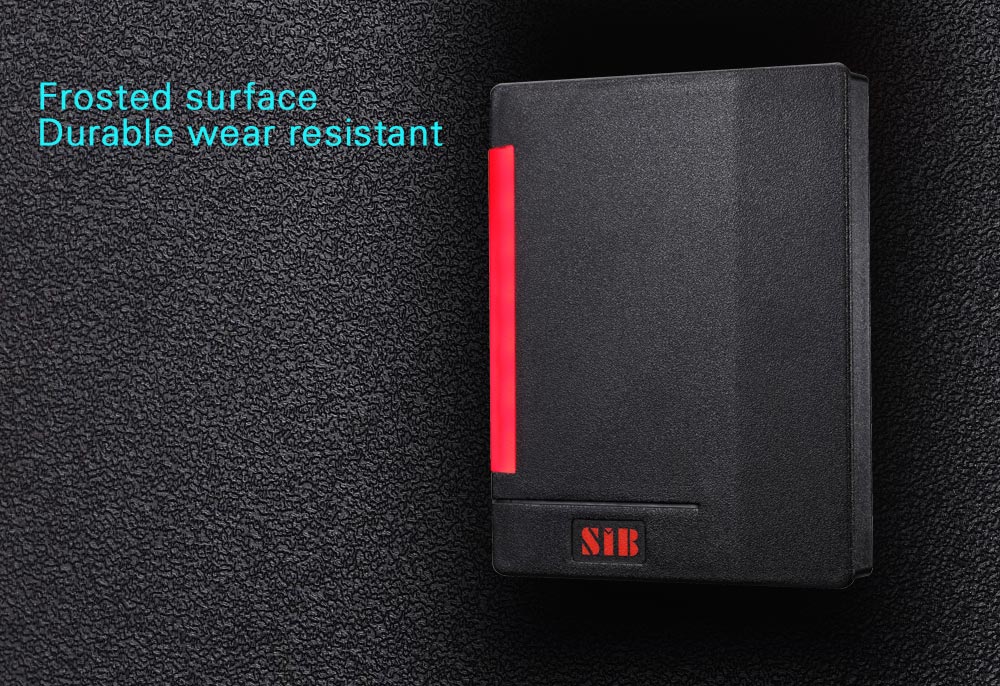

Product Material : plastic housing
Very low power consumption: static current less than 30mA。
Output format: WG26
Product Version
Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
RF003EM
EM Card 125Khz
IP68
Wiegand26 RFID 125khz Door Card Reader
SIB

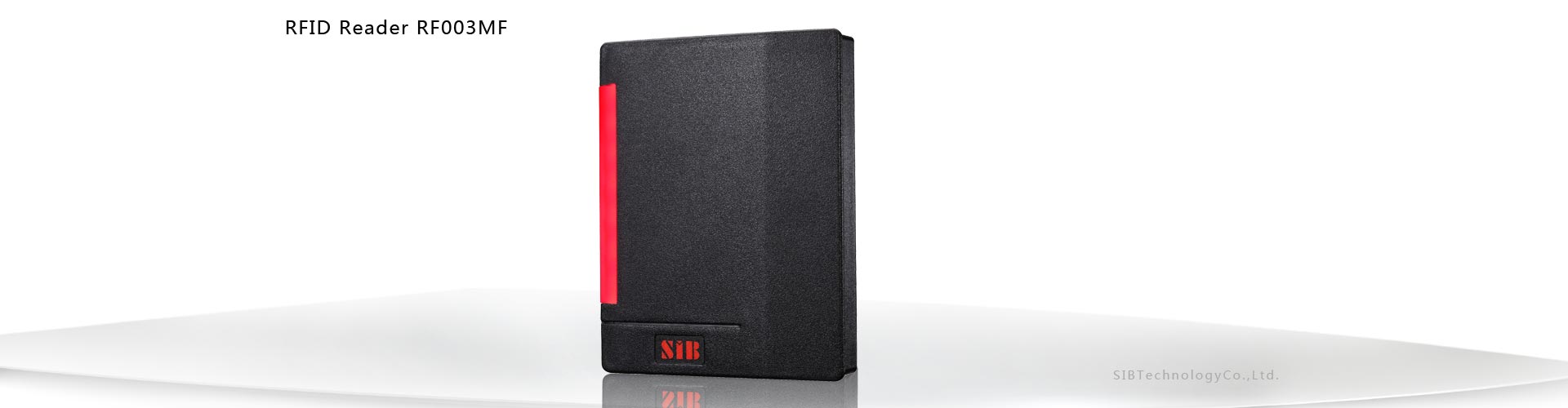

RF003MF
MF Card 13.56Mhz
IP68
Wiegand26 Mifare 13.56Mhz Door Card Reader
SIB
RF003H
HID Card 125Khz
IP68
Wiegand26 HID 125Khz Door Card Reader
Technical parameters
Card type：MF
Waterproof degree：IP68
Environment Humidity：10%～90%
Ambient temperature：-45℃～60℃
Working voltage：DC12V
Static electricity：≤30mA

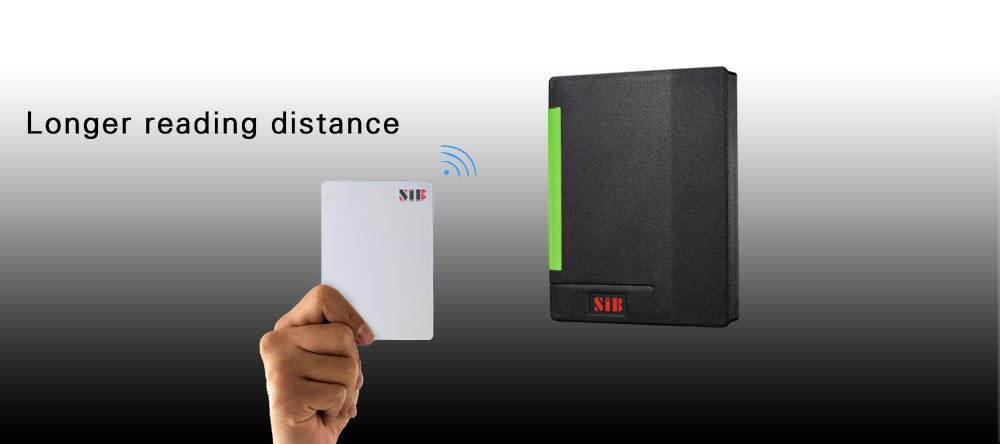

Card read distance：3～6cm
Dimension：110 *86*18mm
Size & Weight
Package size

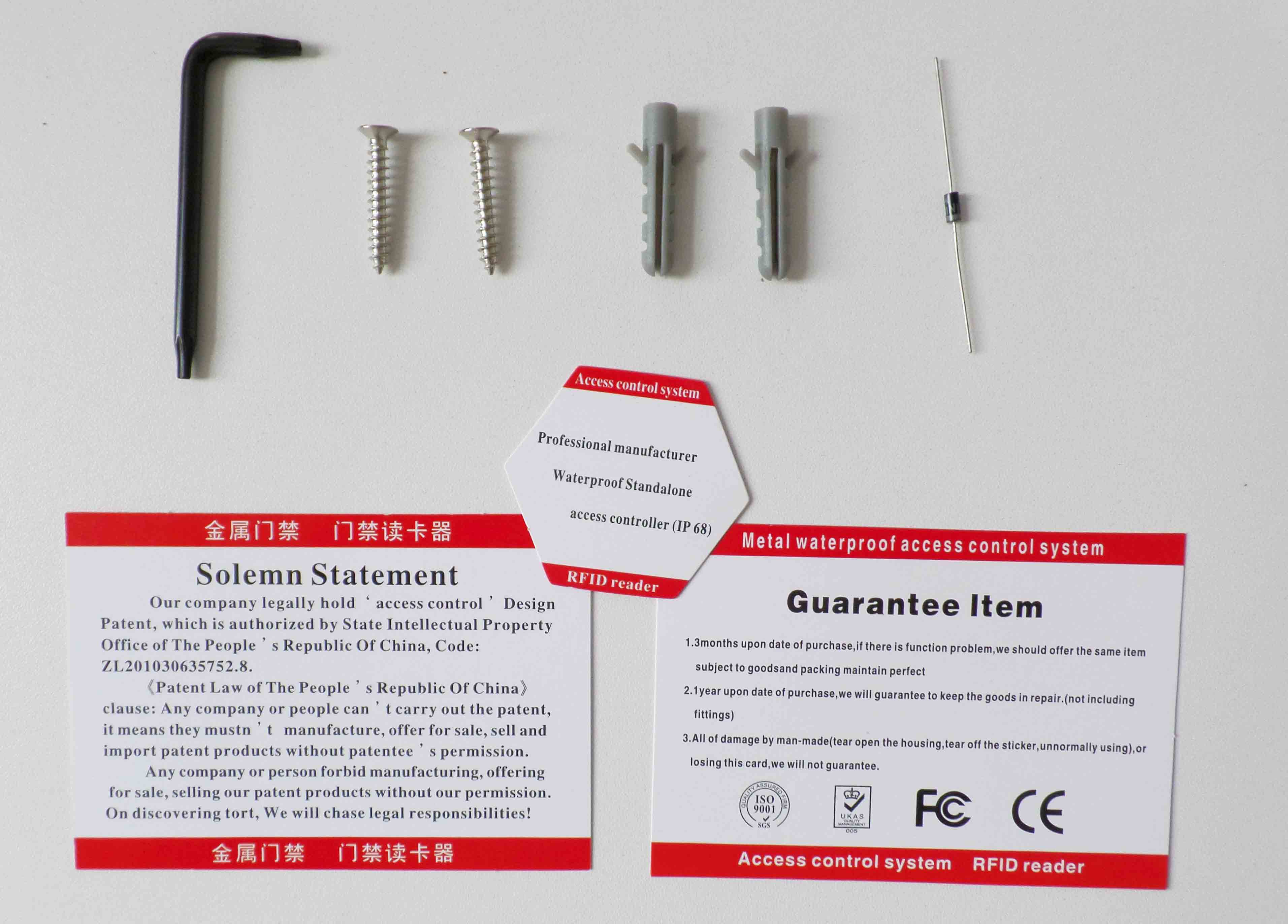

Packing list
Wiring Instruction
|
Wire No. |
Function |
Color |
Description |
| 1 |
LED |
Blue |
Connect controller LED |
| 2 |
Beeper |
Yellow |
Connect controller beeper |
| 3 |
D0 |
Green |
WG output line D0 |
| 4 |
D1 |
White |
WG output line D1 |
| 5 |
+12V |
Red |
Power supply +12V |
| 6 |
GND |
Black |
Power supply -12V |
Diagram
