Product introduction
Function characteristics

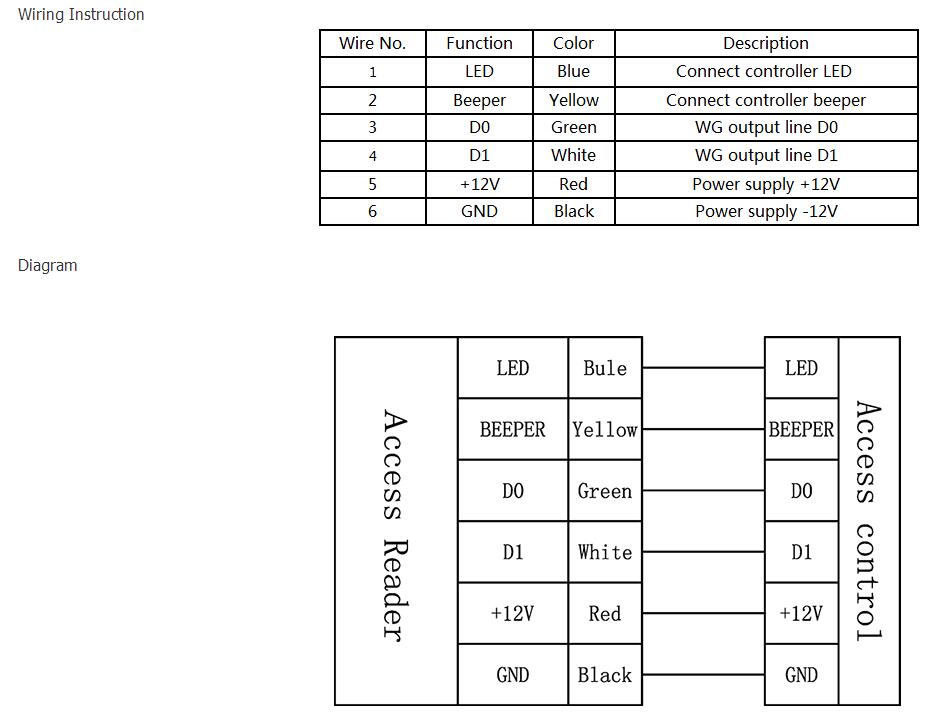

System wiring diagram
Manual Down

Product presentation

Material：Plastic case
Idle Current: ≤30mA
WG26 input and output
Door opening time less than 0.1S

Product Version

Brand	Model	Card Type	Waterproof Degree	Product Name
SIB	U-P006EM	EM Card 125Khz	IP68	EM Keyfobs Access Card Reader
SIB	U-P006MF	MF Card 13.56Mhz	IP68	Mifare Tag Access Card Reader
SIB	U-P006H	HID Card 125Khz	IP68	HID Keychain Access Card Reader

Technical parameters

Card Type:EM/MF
Reading Range:2-5cm
Waterproof:IP68
Working Voltage:DC12V
Idle Current:≤30mA
Wiegand interface:WG26/34
Plastic case Communication Distance:100m

Click to download
