Power output： DC 12V/500mA

（2）When the input power lower than AC 16V, please insert the short circuit plug “J3” into “L”. It is just  for  converting AC to DC, the voltage is the same.

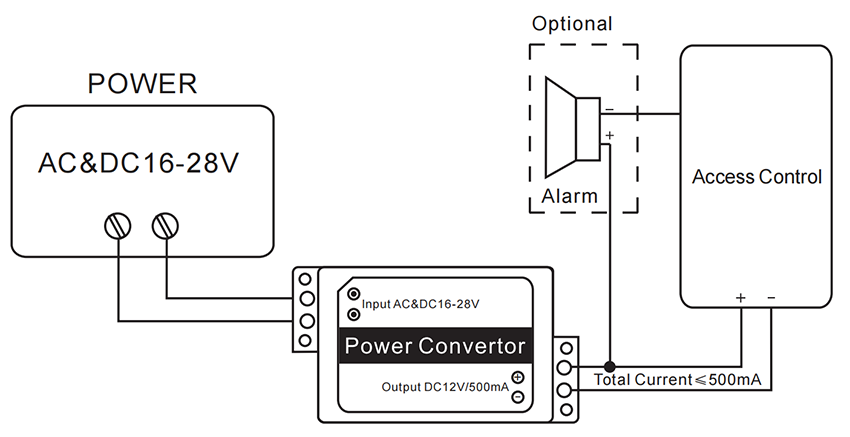

Installation

（3）Fix the screws on the wall.

Packing List

Name	Quantity	Remark
Power Convertor	1
User Manual	1
Screw Driver	1
Rubber Bungs	2	Φ6mm X 28mm
Self Tapping Screws	2	PM 3 X 25mm
