Product Description
Multi-function standalone device, can be used
as WG26 card reader
Capacity: 2000 card users, 2000 PIN users
Three door open methods: card, code, card+code

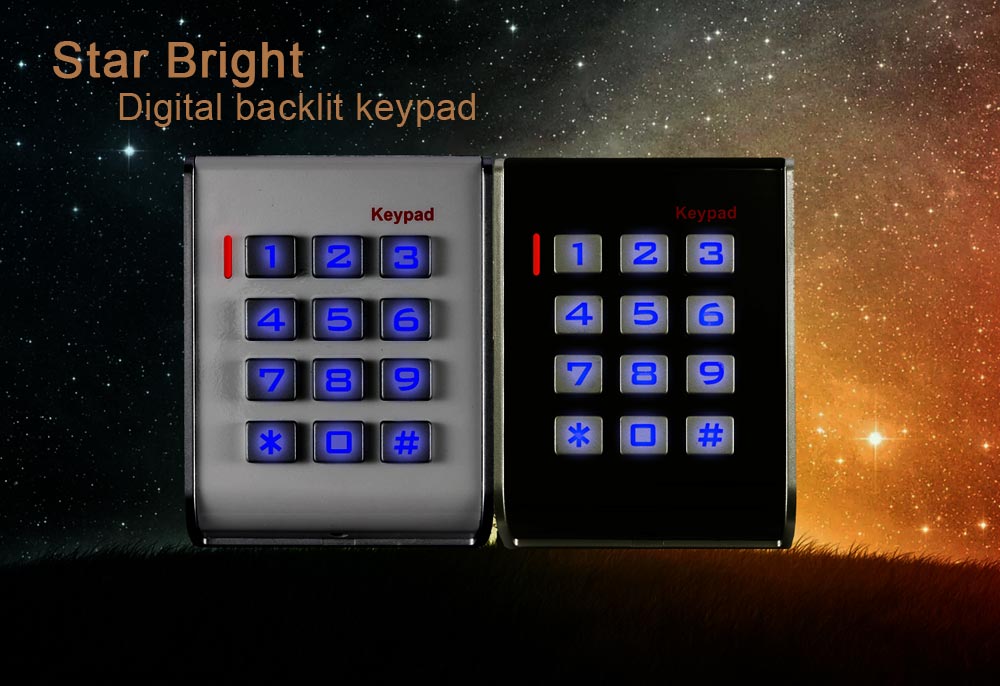

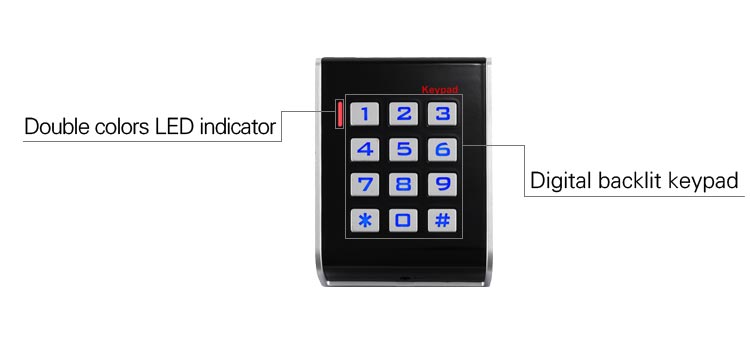

Backlit keypad: Can operate keyboard in dark night
Product Version
|
Brand |
Model |
Card Type |
Waterproof Degree |
Product Name |
|
SIB |
K31EM |
EM Card 125Khz |
Indoor | ABS EM Card Keypad Door Entry |
|
SIB |
K31MF |
MF Card 13.56Mhz |
Indoor |
Plastic Mifare Tag Keypad Gate Entry |
Technical parameters
Card type：EM/MF
Capacity: 2,000
Environment Humidity：10%～90%
Lock output：≤3A
Working voltage：DC12V
Static electricity：≤30mA
Alarm output：≤20A
Output short circuit protection time：≤100μS
Card read distance：2～5cm
Ambient temperature：-40℃～60℃
Door Opening Time: 0～99s
Dimension：92 *81*20mm
Size & Weight
Package size
Packing list
Common power supply diagram
Special power supply diagram
