Product introduction
Technical parameters
System wiring diagram
Manual Down

Product presentation

WG26/WG34 adjustable by end user under reader mode
Capacity: 2000 users,button keypad
Plastic case, indoor used
Access Way: Pin, Card, Pin+ Card

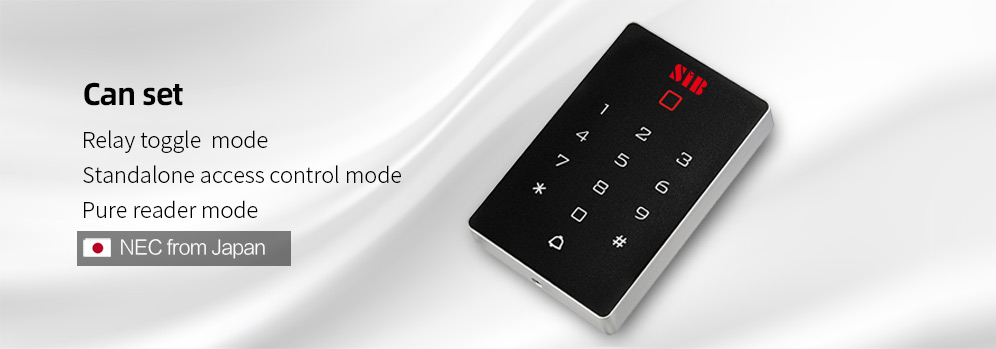

Relay Toggle Mode
Master cards are available
Data backup
Access ways:card,code,card+code

Product Version

Brand	Model	Card Type	Waterproof Degree	Product Name
SIB	K12EM	EM Card 125Khz	Indoor	Standalone Buble Keypad Access Control
SIB	K12MF	MF Card 13.56Mhz	Indoor	Single Door Buble Keyboard Gate Entry

Technical parameters

Card type:EM/MF
Static electricity: ≤30mA
Working voltage: DC12V±10%
Ambient temperature: -45 ℃ ~ 60 ℃
Reading Range:3-6cm
Electric lock output: ≤1A
Humidity: 10% to 90% RH
Short-circuit Protect: ≤100μS
Door Opening Time:0-99s(Adjustable)

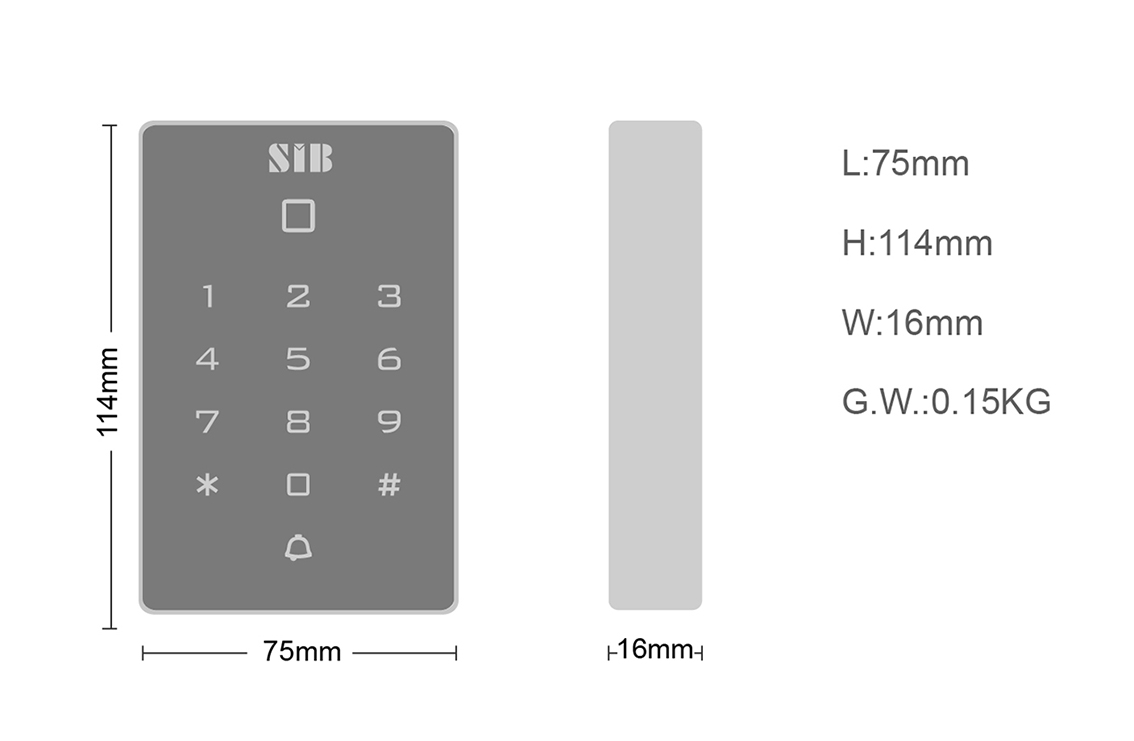

Size & Weight

Package size

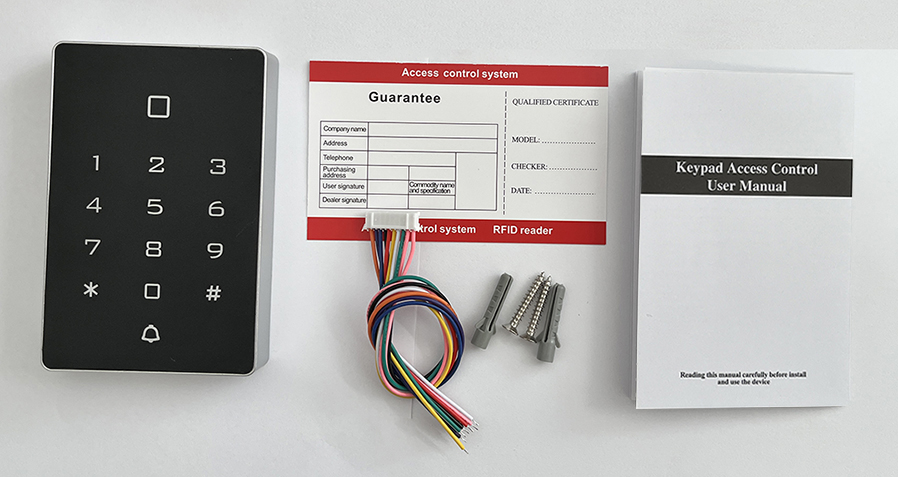

Packing list

Common power supply diagram

Special power supply diagram

Reader mode diagram

Click to download
