Product presentation

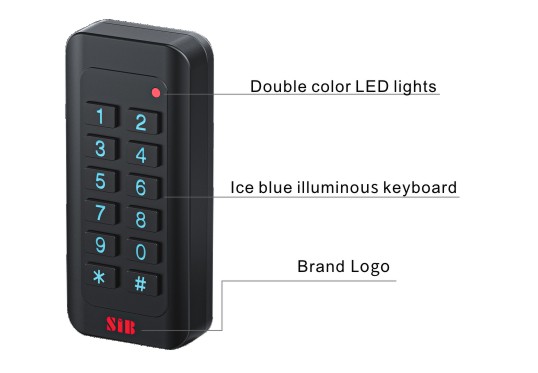

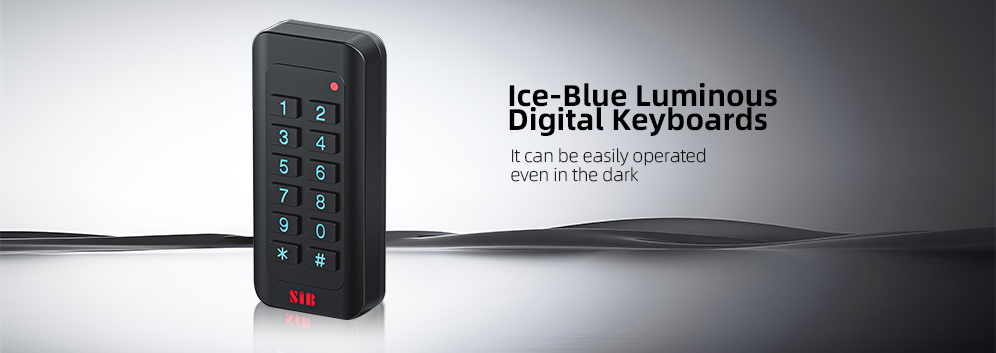

ABS case,Blue luminous digital keyboards

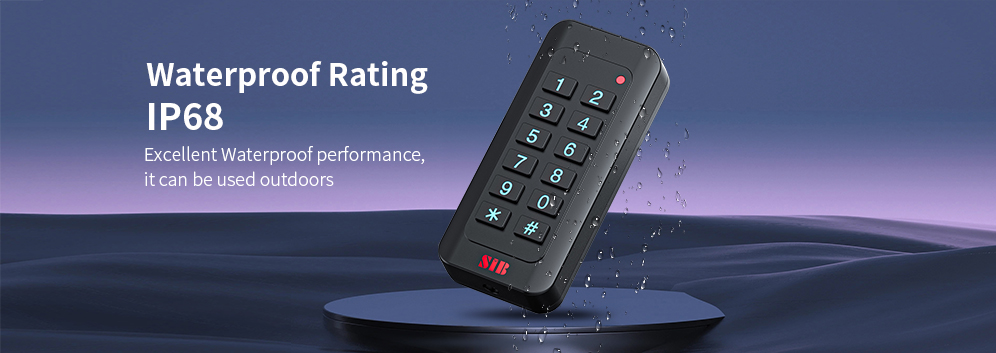

Waterproof rating IP68
Access way: card,code,card+code
Support admin add card,delete card

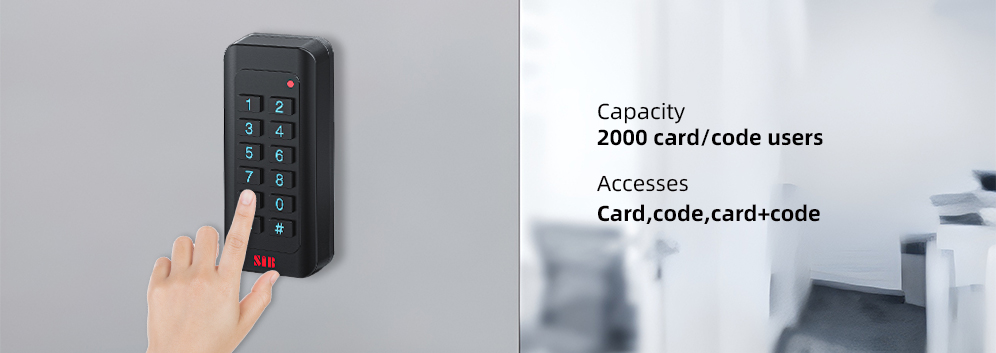

Capacity:2000 card users
Can set Standalone access control mode, Toggle relay mode, Reader mode
WG26/34 input/output
With data backup function
Product Version
|
Brand |
Model |
Card Type |
Waterproof Degree |
Product Name |
|
SIB |
K37EM |
EM Card 125Khz |
Indoor |
Card & Code Keypad Access Controller |
|
SIB |
K37MF |
MF Card 13.56Mhz |
Indoor |
13.56Mhz Mifare Card Keypad Access Control |
|
SIB |
K37EM-W |
EM Card 125Khz |
IP68 |
Waterproof 125Khz Keypad Access Control |
|
SIB |
K37MF-W |
MF Card 13.56Mhz |
IP68 | Mifare Outdoor Use Mifare Card Access Control |
Technical parameters
Card type:EM/MF
Static electricity: ≤30mA
Working voltage: DC12V±10%
Ambient temperature: -45 ℃ ~ 60 ℃
Reading Range:2~5cm
Electric lock output: ≤1A
Humidity: 10% to 90% RH
Short-circuit Protect: ≤100μS
Door Opening Time:0-99s(Adjustable)

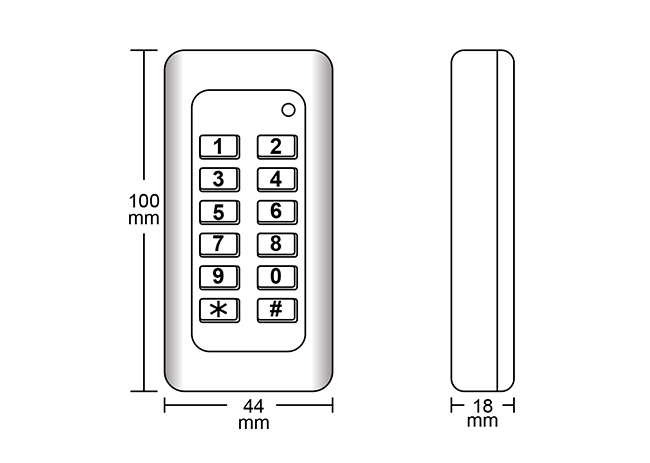

Product dimensions
Common power supply diagram
Special power supply diagram
Reader mode diagram
