Product introduction
Technical parameters
System wiring diagram
Manual Down

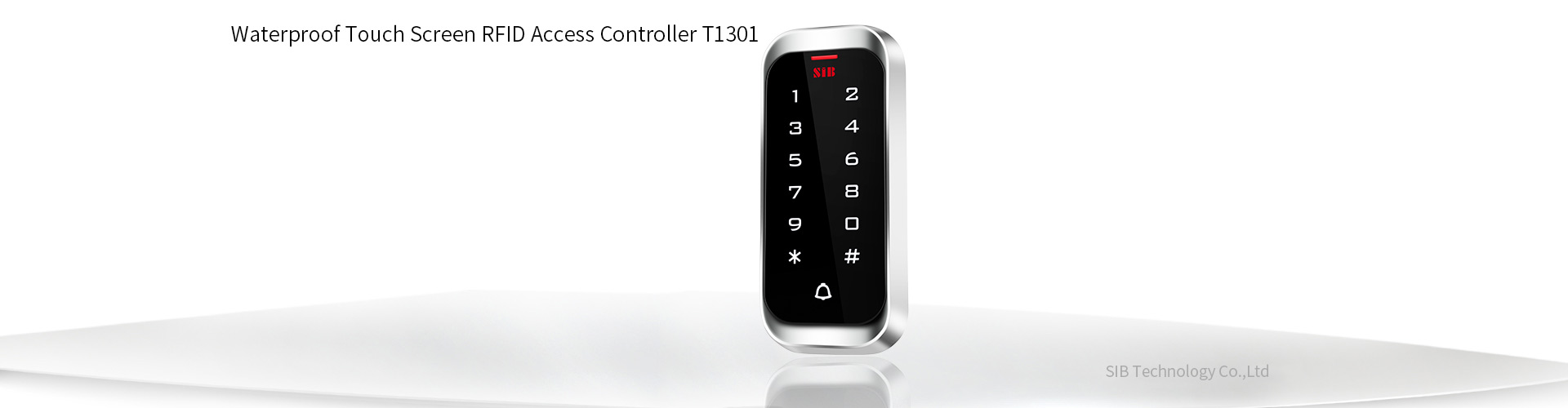

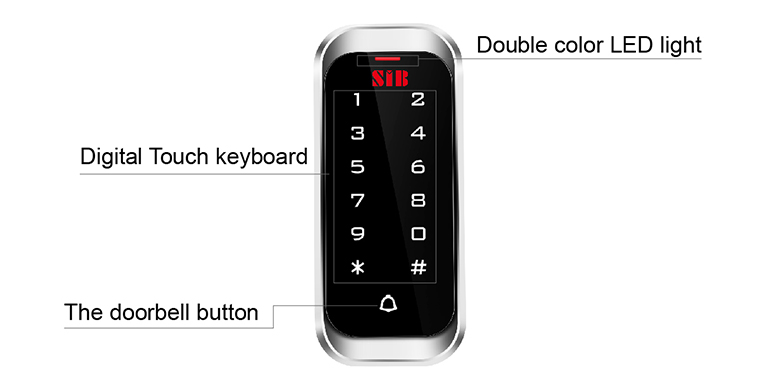

Product presentation

Metal case,anti-vandal
Capacity: 2000 users,button keypad
Access Way: Pin, Card, Pin+ Card
Backlight touch keypad
Wg26 Input/Output
2000 cards/codes in total

Product Version

Brand	Model	Card Type	Waterproof Degree	Product Name
SIB	T1301EM	EM Card 125Khz	Indoor	Proximity Card Touch Keypad Metal Access Control
SIB	T1301MF	MF Card 13.56Mhz	Indoor	Mifare Tags Touch Keyboard Metal Access Control

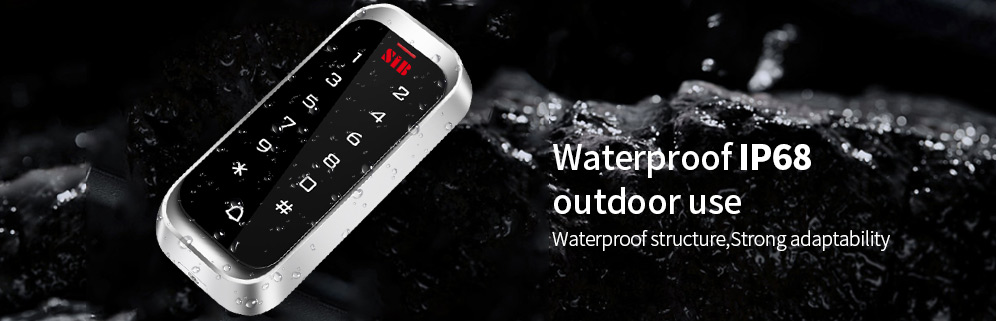

SIB	T1301EM-W	EM Card 125Khz	IP68	Waterproof IP68 Proximity Fobs Touch Keypad Access Control
SIB	T1301MF-W	MF Card 13.56Mhz	IP68	Outdoor Mifare Card Touch Panel Metal Access Control

Technical parameters

Card Type:EM/MF
Alarm Output Load:≤20A
Working Voltage:DC12—24V
Idle Current:≤30mA
ReadingRange:2—5cm
Operating Temperature:-45~60℃
Operating Humidity:10%—90%
Lock Output Load:≤3A
Door Opening Time:0~99s(Adjustable)
Short-circuit Protect:≤100um

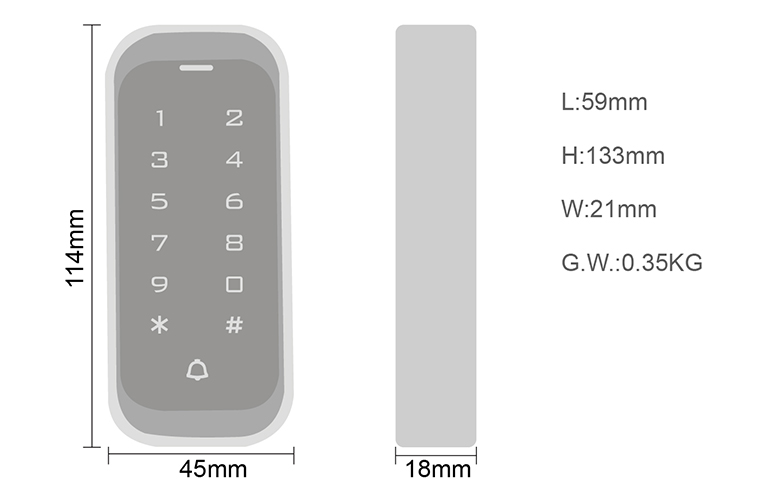

Product dimensions

Package size

Packing list

Common power supply diagram

Special power supply diagram

Reader mode

Click to download
