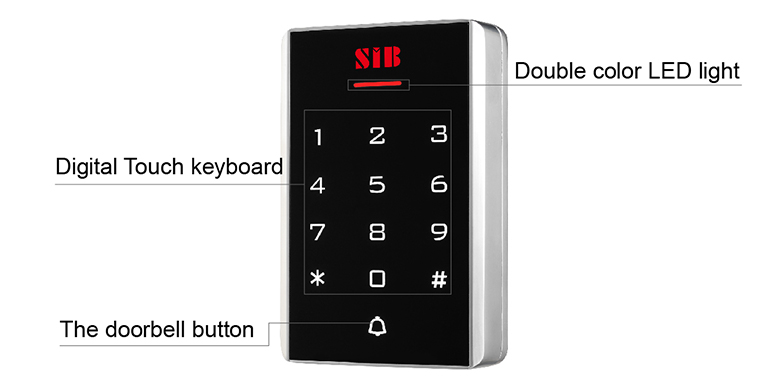

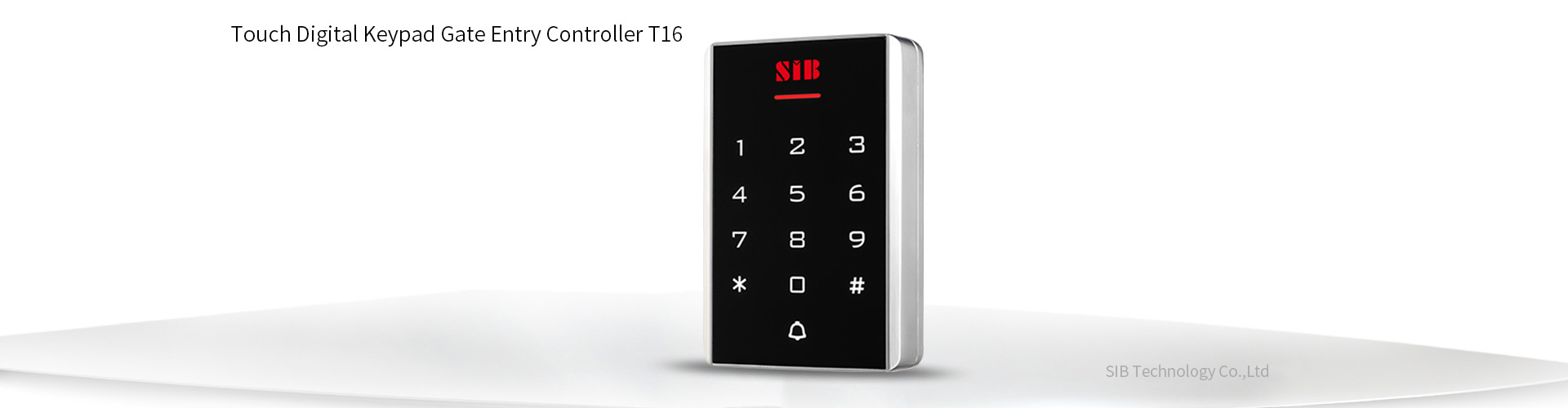

Product presentation
Strong metal case, digital light touch keypad
2000 cards/codes in total
Wg26 Input/Output
Three Accesses:card,code,card+code

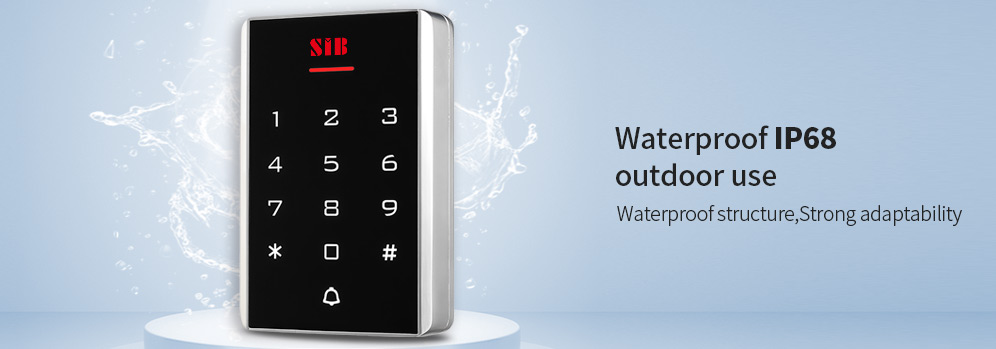

Waterproof,IP68,outdoor use
Product Version
Brand |
Model |
Card Type |
Waterproof Degree |
Product Name |
SIB |
T16EM |
EM Card 125Khz |
Indoor |
RFID Proximity Card Touch Panel Metal Access Controller |
SIB |
T16MF |
MF Card 13.56Mhz |
Indoor |
RFID Mifare Badges Touch Screen Metal Door Access Control |
SIB |
T16EM-W |
EM Card 125Khz |
IP68 | RFID Proximity Badges Touch Keypad Metal Access Control |
SIB |
T16MF-W |
MF Card 13.56Mhz |
IP68 |
RFID Mifare Card Touch Panel Metal Door Access Control |
Technical parameters
Card Type:EM/MF
Alarm Output Load:≤20A
Working Voltage:DC12V
Idle Current:≤30mA
ReadingRange:2—5cm
Operating Temperature:-45~60℃
Operating Humidity:10%—90%
Lock Output Load:≤3A
Door Opening Time:0~99s(Adjustable)
Short-circuit Protect:≤100um

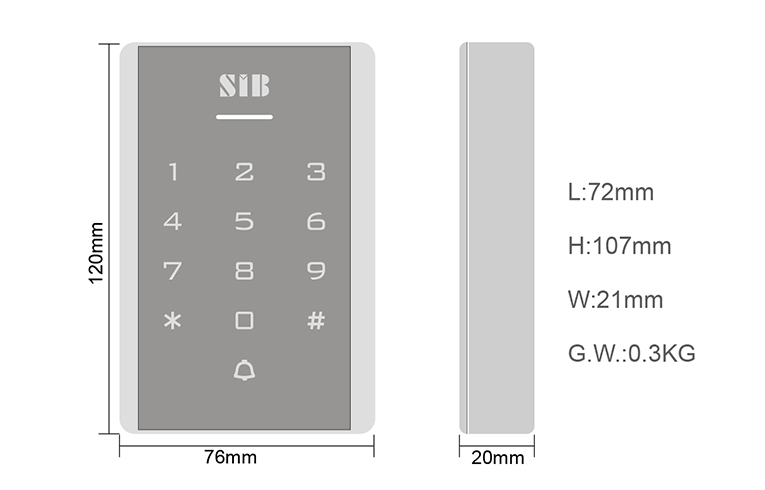

Product dimensions

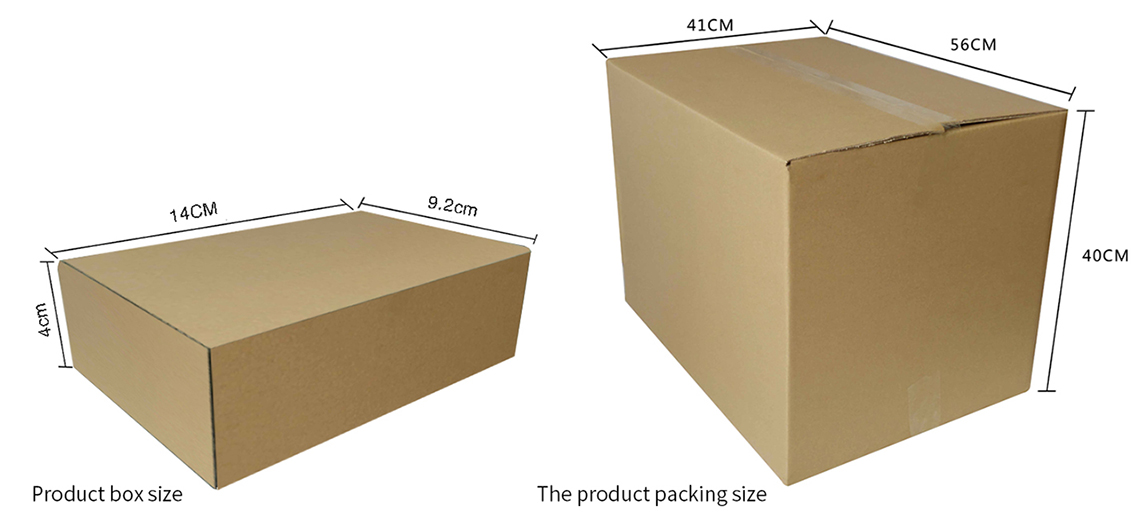

Package size

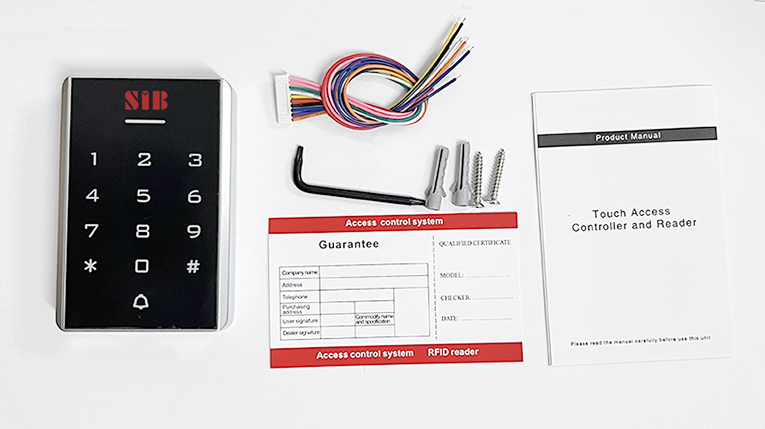

Packing list

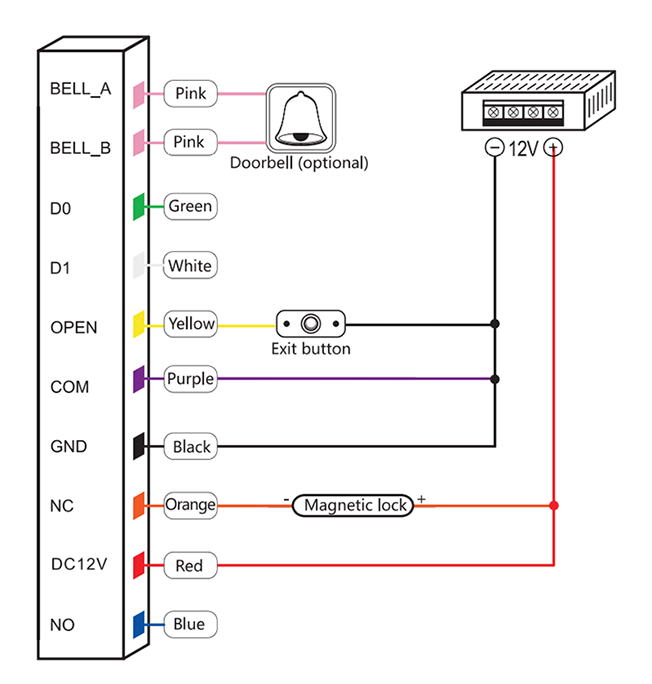

Common power supply diagram

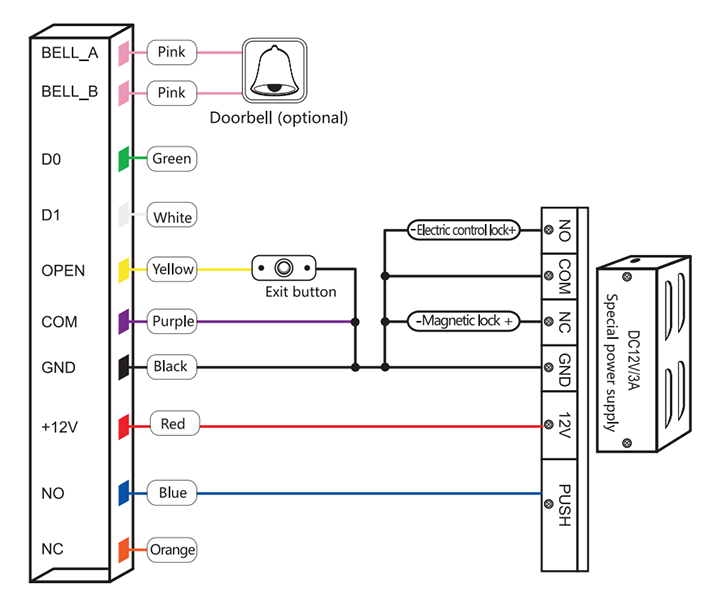

Special power supply diagram

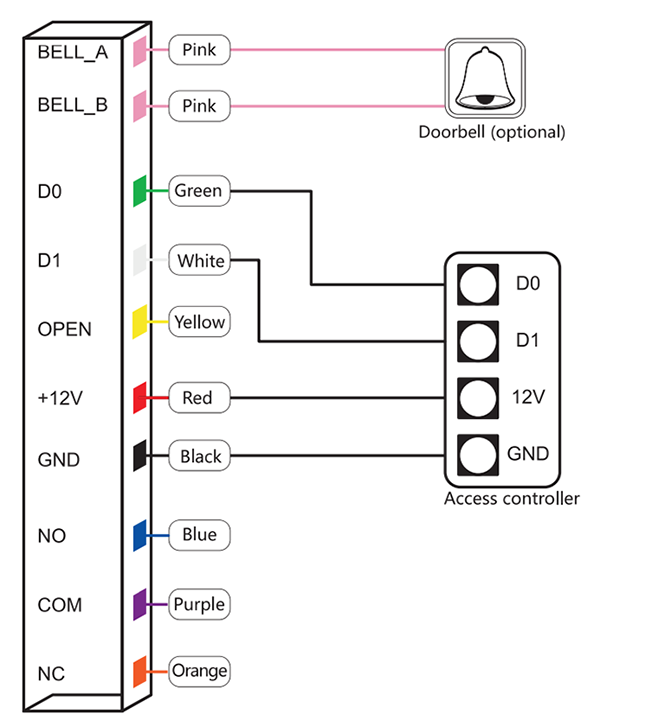

Reader mode
