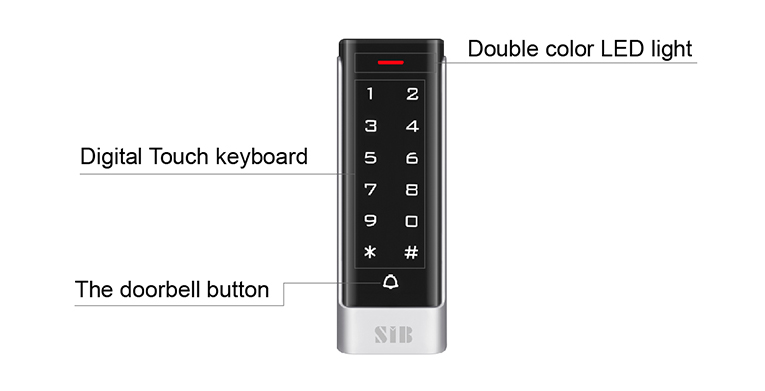

Product presentation
Access ways:card,code,card+code
|
Brand |
Model |
Card Type |
Waterproof Degree |
Product Name |
|
SIB |
T1101EM |
EM Card 125Khz |
Indoor |
Proximiy Card Metal Touch Keypad Access Controller |
|
SIB |
T1101MF |
MF Card 13.56Mhz |
Indoor |
Rfid Mifare Tags/cards Metal Keyboard Door Entrance |
|
SIB |
T1101EM-W | EM Card 125Khz |
IP68 |
Waterproof IP68 Metal Touch Screen Gate Entry Systems |
|
SIB |
T1101MF-W | MF Card 13.56Mhz |
IP68 |
Outdoor Zinc Alloy Touch Panel Door Access Control |
Technical parameters
Card Type:EM/MF
Alarm Output Load:≤20A
Working Voltage:DC12V
Idle Current:≤30mA
ReadingRange:2—5cm
Operating Temperature:-45~60℃
Operating Humidity:10%—90%
Lock Output Load:≤3A
Door Opening Time:0~99s(Adjustable)
Short-circuit Protect:≤100um

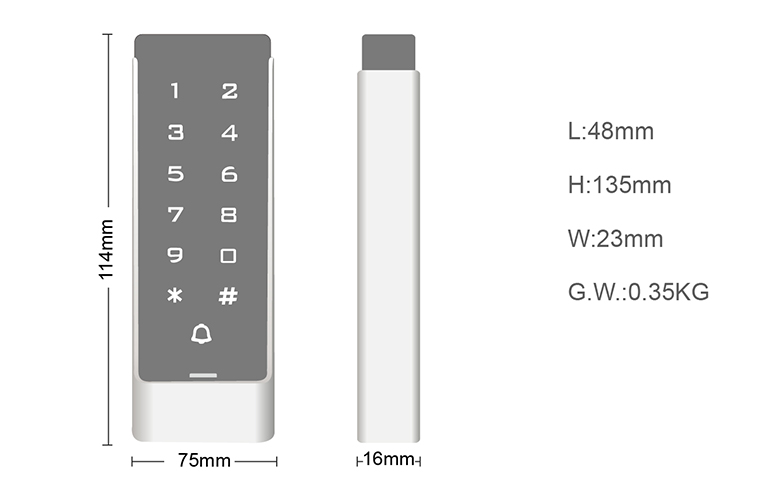

Product dimensions
Package size

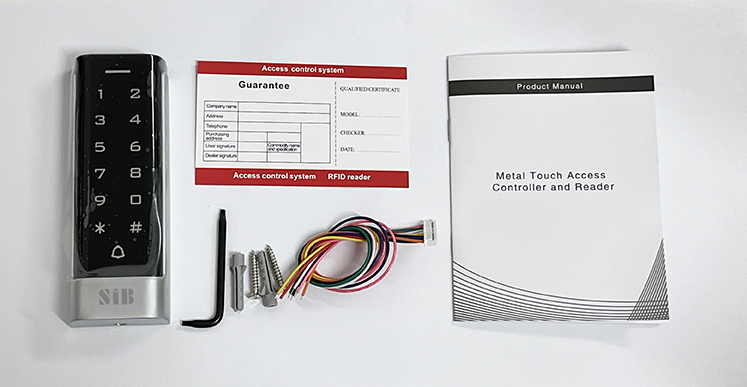

Packing list
Common power supply diagram
Special power supply diagram
Reader mode
