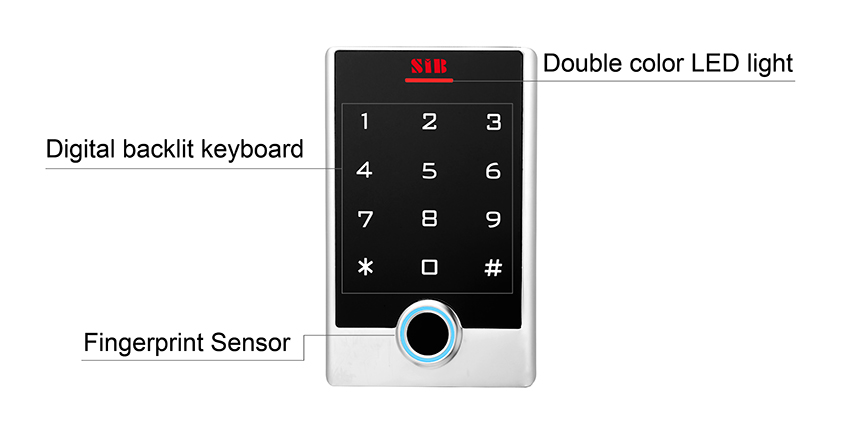

Product presentation
Remote unlock by mobile phoneAccess ways: Fingerprint/Card/Pin/Mobile app(Tuya)
Product Version
Brand |
Model |
Card Type |
Waterproof Degree |
Product Name |
SIB |
TF501EM(Wifi) |
EM Card 125Khz |
Indoor |
Biometric RFID Card Pin Access Controller with Tuya App Unlocking |
SIB |
TF501MF(Wifi) |
MF Card 13.56Mhz |
Indoor |
Fingerprint Sensor Pincode RFID Access Control with Wifi matching |
SIB |
TF501EF(Wifi) |
EM+MF Card 125Khz+13.56Mhz |
Indoor | Dule Frequency Biometric Sensor PIN Card Access Control with Tuya App |
SIB |
TF501EM-W(Wifi) |
EM Card 125Khz |
IP68 |
Waterproof Biometric Password and Card Access Controller with Wifi Unlocking |
SIB |
TF501MF-W (Wifi) |
MF Card 13.56Mhz |
IP68 |
Waterproof Fingerpint Touch Screen Mifare Access Control with Tuya App |
SIB |
TF501EF-W (Wifi) |
EM+MF Card 125Khz+13.56Mhz |
IP68 |
Waterproof Fingerprint Sensor Card and PIN Access Control by Mobilephone Unlocking |
Technical parameters
Card type:EM/MF/HID/CPU
Capacity: 10000cards/codes&300fingerprints
Environment Humidity:10%~90%
Lock output:≤1A
Working voltage:DC12V
Static electricity:≤30mA
Alarm output:≤20A
Output short circuit protection time:≤100μS
Card read distance:2~5cm
Ambient temperature:-40℃~60℃
Door Opening Time: 0~99s
Dimension:120 *76*24mm

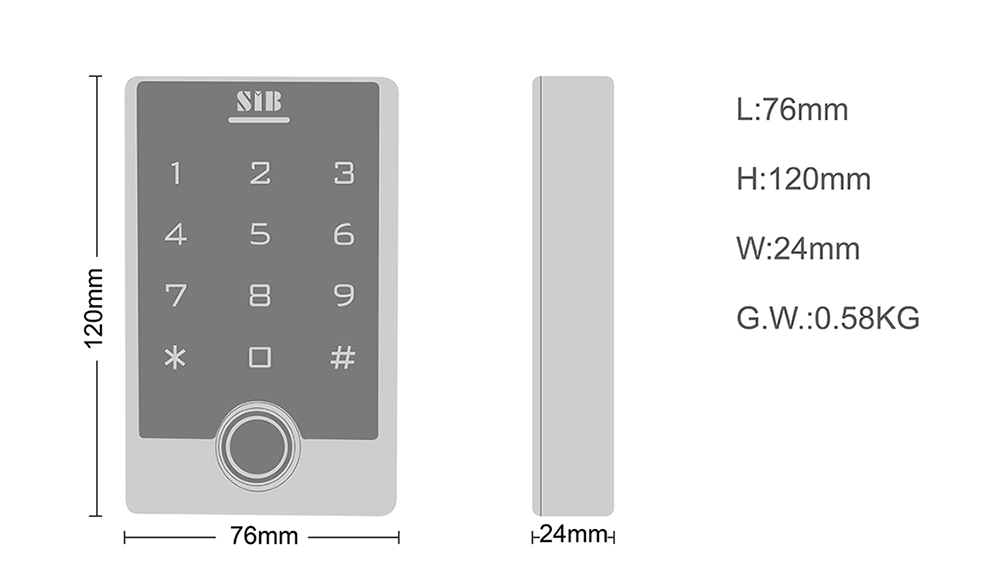

Size & Weight
Package size

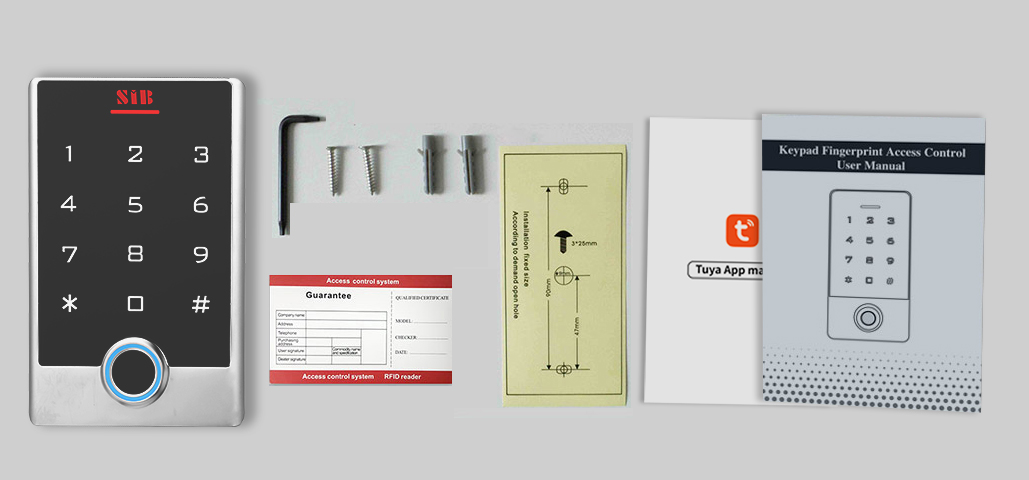

Packing list
Common power supply diagram
Special power supply diagram

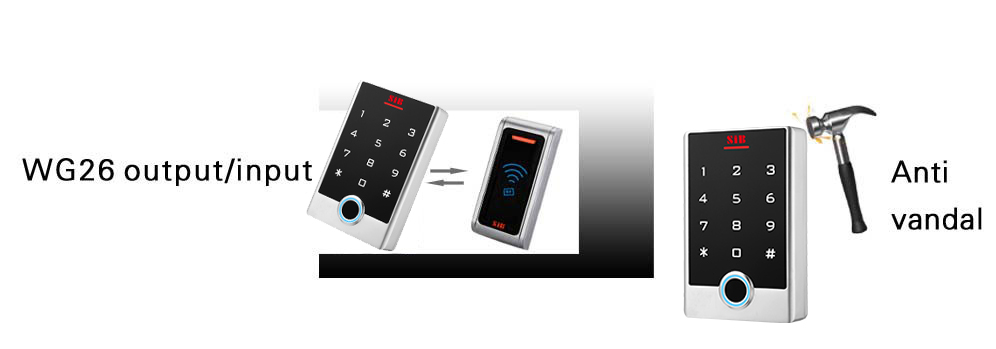

Reader mode
Click the link below to download
