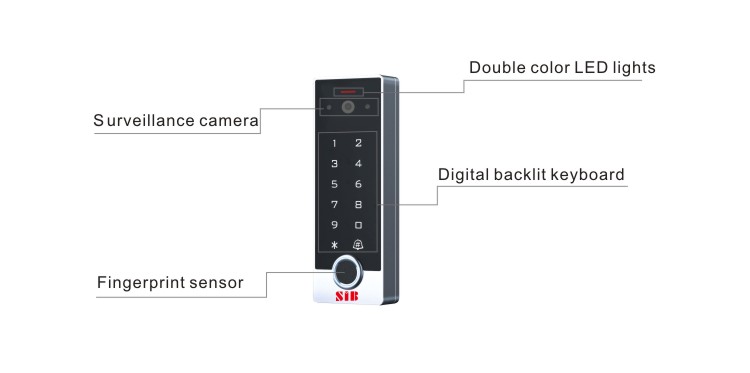

Product presentation
Capacity：1000 cards/codes,200 fingerprints
WG26-58 input/output
With data backup function
Can set admin add/delete card
Vistor can be viewed through mobie video surveillance
Access ways:fingerprint,card,code,mobie APP(optional)
tuya Wifi function (optional)
Check visitor records
set temporary code
remote unlock & manage users by mobile phone App
Product Version
|
Brand |
Model |
Card Type |
Waterproof Degree |
Product Name |
|
SIB |
VF1EM |
EM Card 125Khz |
Indoor |
EM fingerprint card password 3in1 access control |
|
SIB |
VF1MF |
MF Card 13.56Mhz |
Indoor |
MF Card 13.56Mhz Fingerprint Touch Keypad access control |
|
SIB |
VF1EF |
EM+MF Card 125Khz+13.56Mhz |
Indoor |
Dual Frequency fingerprint access control |
|
SIB |
VF1EM(WIFI) |
EM Card 125Kh |
Indoor |
Tuya Smart Video intercom access control |
|
SIB |
VF1MF(WIFI) |
MF Card 13.56Mhz |
Indoor |
Multi-functional Video intercom access control |
|
SIB |
VF1EF(WIFI) |
EM+MF Card 125Khz+13.56Mhz |
Indoor |
Video intercom access control with fingerprint |
Technical parameters
Card type：EM/MF/HID/CPU
Capacity: 1000cards/codes&200fingerprints
waterproof IP68
Environment Humidity：10%～90%
Lock output：≤1A
Working voltage：DC12V
Static electricity：≤35mA
Alarm output：≤20A
Output short circuit protection time：≤100μS
Card read distance：2～5cm
Ambient temperature：-40℃～60℃
Door Opening Time: 0～99s

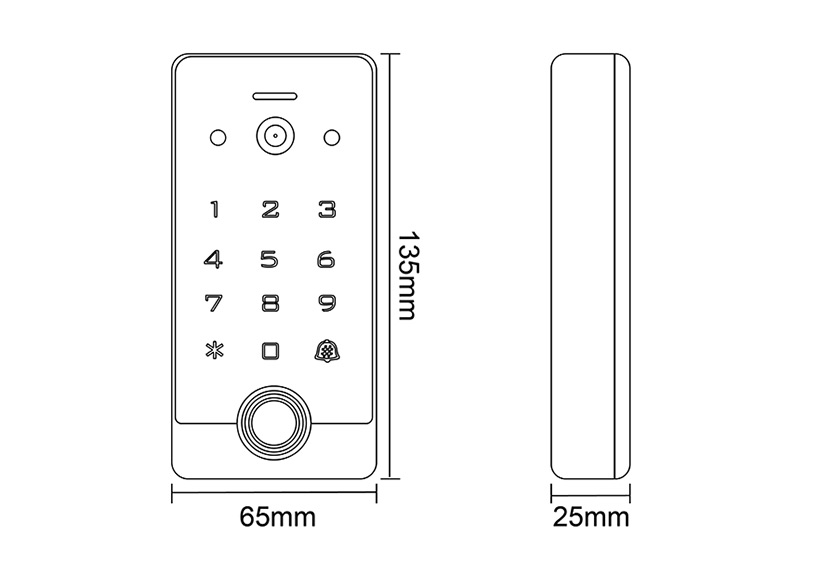

Product Dimension
Package size

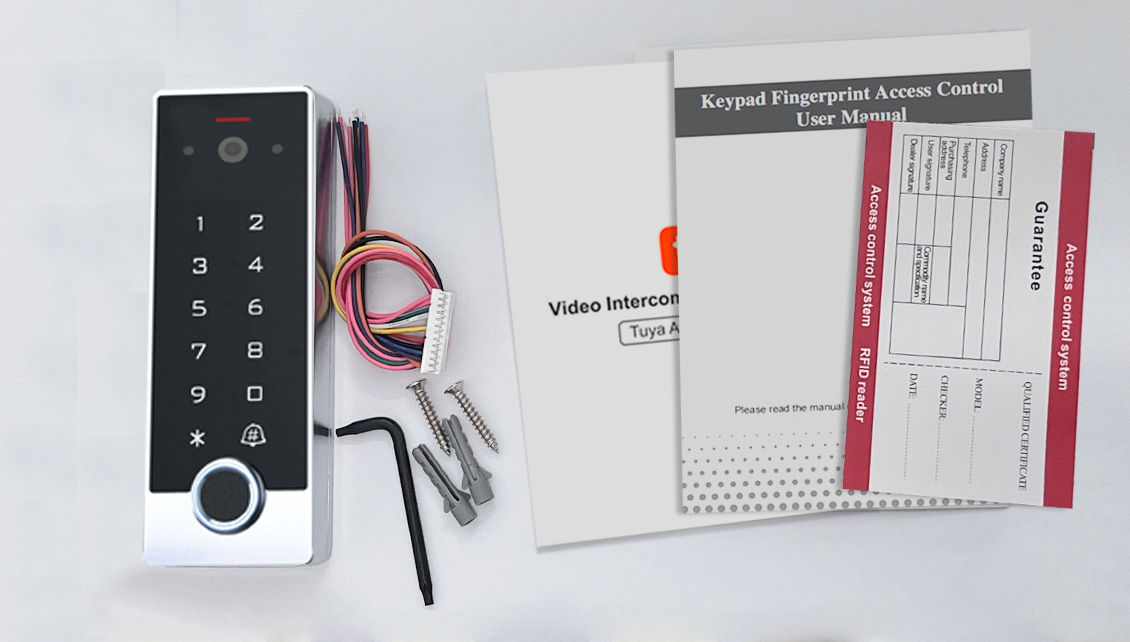

Packing list

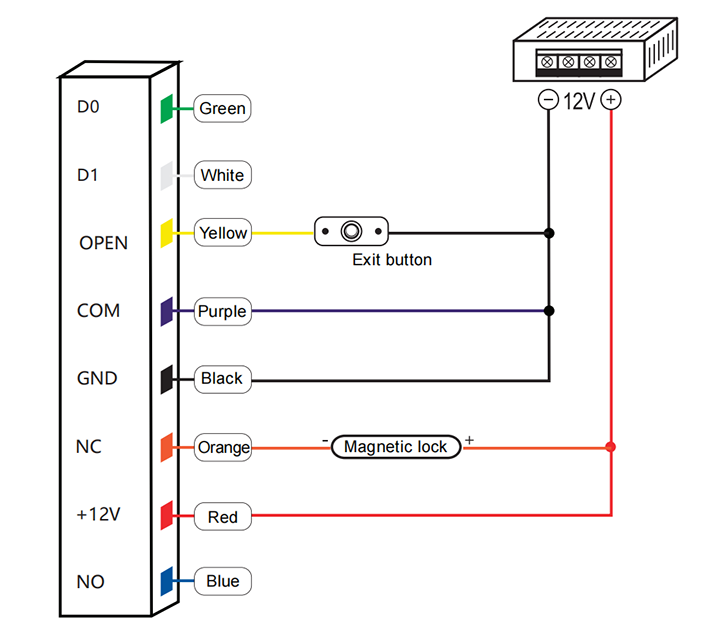

Common power supply diagram

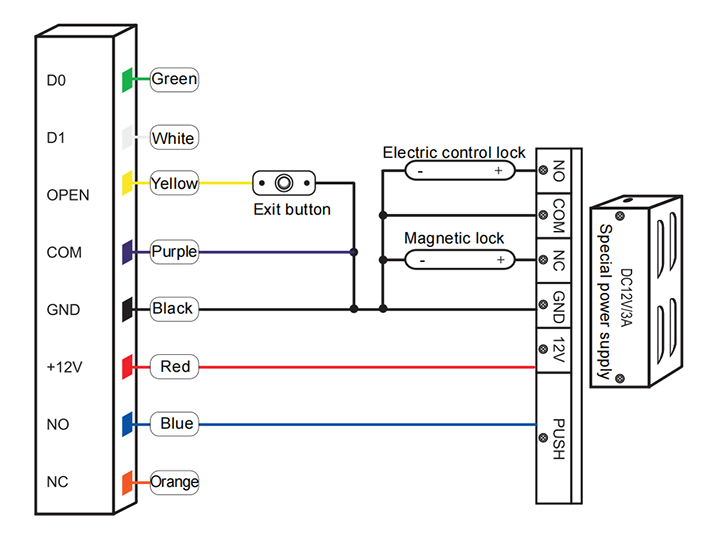

Special power supply diagram

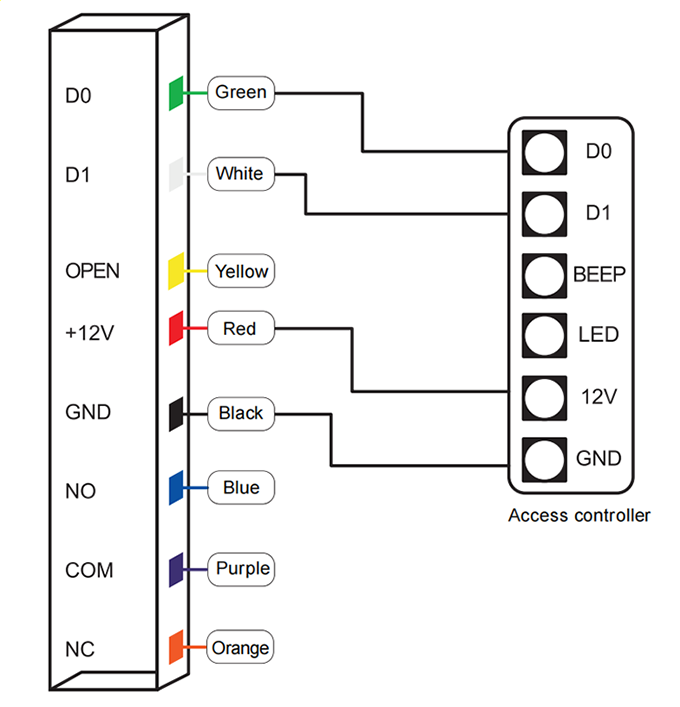

Reader mode diagram
