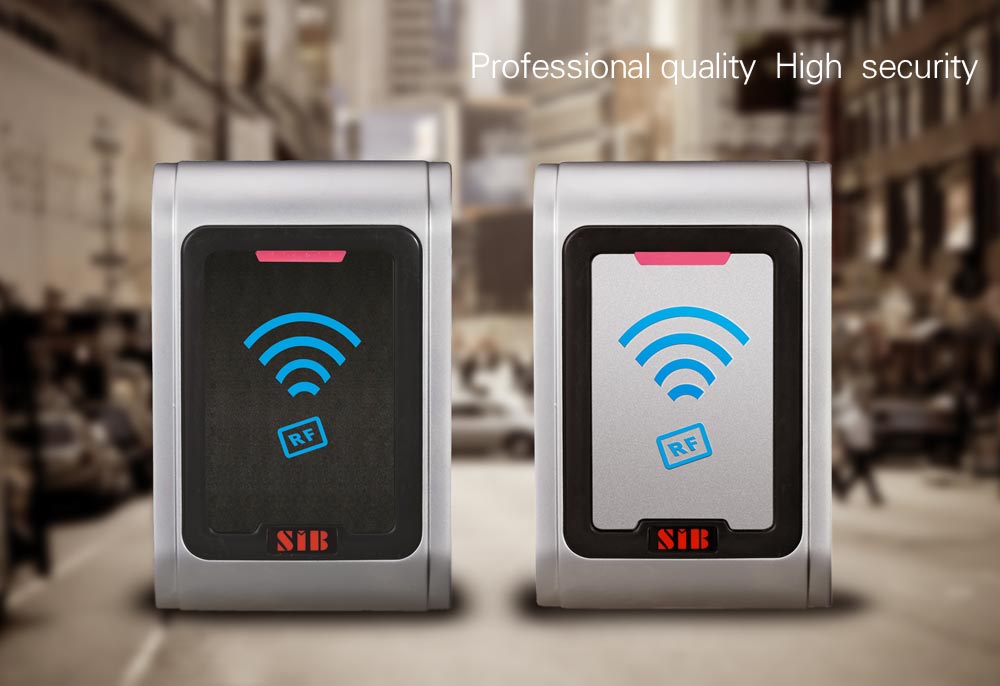

Product presentation
Material：Zinc alloy case
Low Power Consumption: Idle current≦30mA
Output Format: WG26
Product Version
Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
RF005EM
EM Card 125Khz
IP68
Keyless Metal RFID Card Reader
SIB
RF005MF
MF Card 13.56Mhz
IP68
Keyless Waterproof Mifare Readers
SIB
RF005H
HID Card 125Khz
IP68
Keyless Waterproof HID Readers
Technical parameters
Card type：MF
Waterproof degree：IP68
Environment Humidity：10%～90%
Ambient temperature：-45℃～60℃
Working voltage：DC12V
Static electricity：≤30mA
Card read distance：3～6cm
Dimension：120 *80*25mm

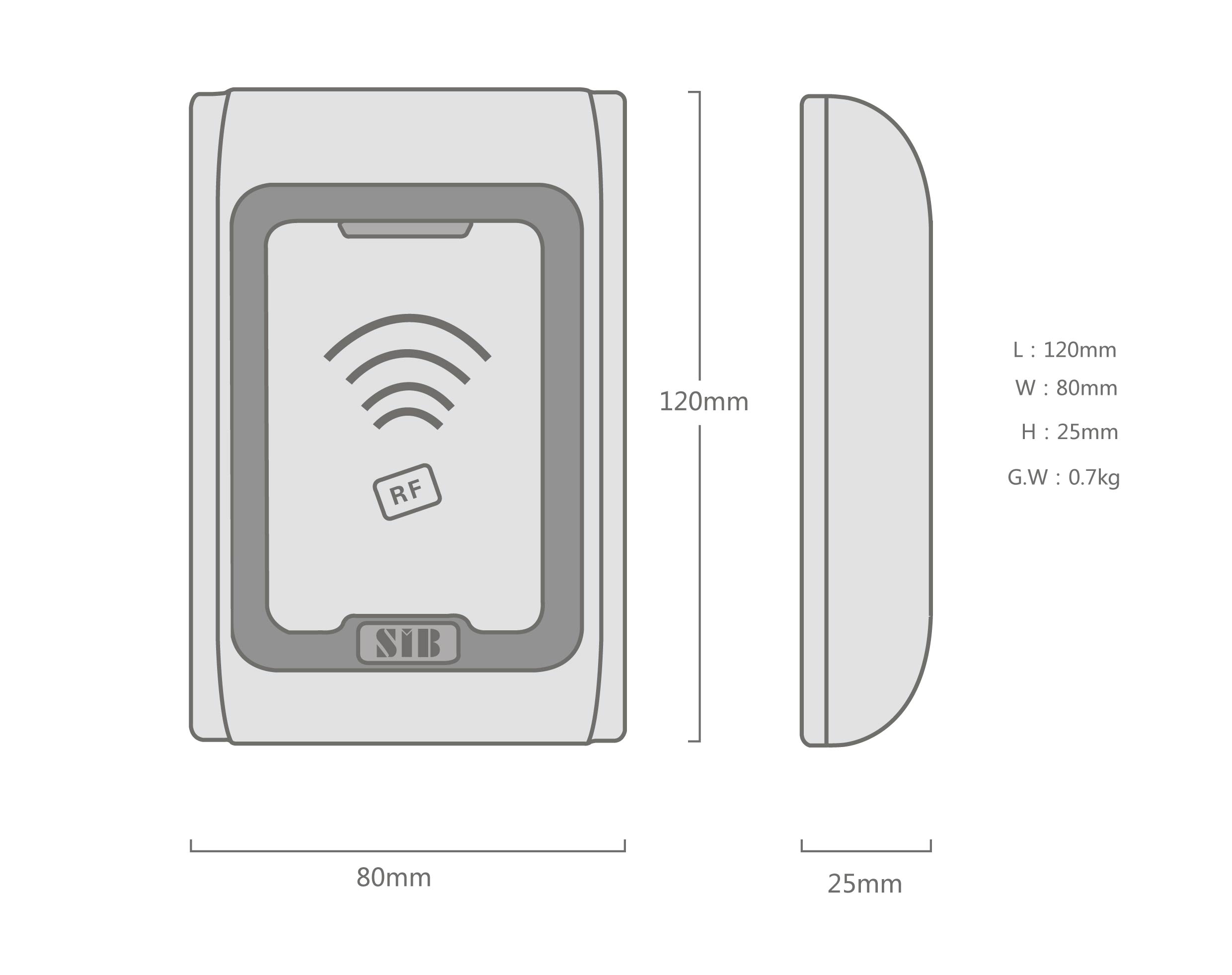

Size & Weight
Package size

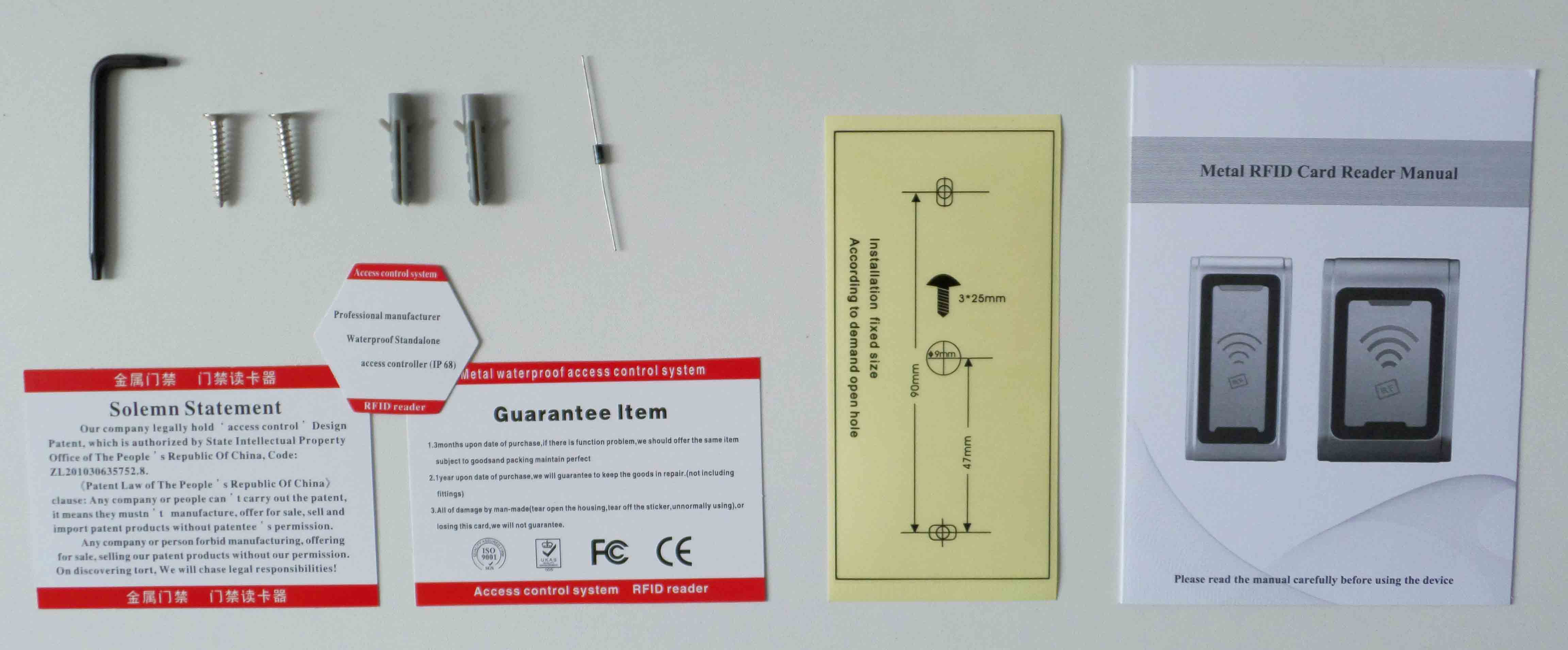

Packing list
Wiring Instruction
|
Wire No. |
Function |
Color |
Description |
| 1 |
LED |
Blue |
Connect controller LED |
| 2 |
Beeper |
Yellow |
Connect controller beeper |
| 3 |
D0 |
Green |
WG output line D0 |
| 4 |
D1 |
White |
WG output line D1 |
| 5 |
+12V |
Red |
Power supply +12V |
| 6 |
GND |
Black |
Power supply -12V |
Diagram
