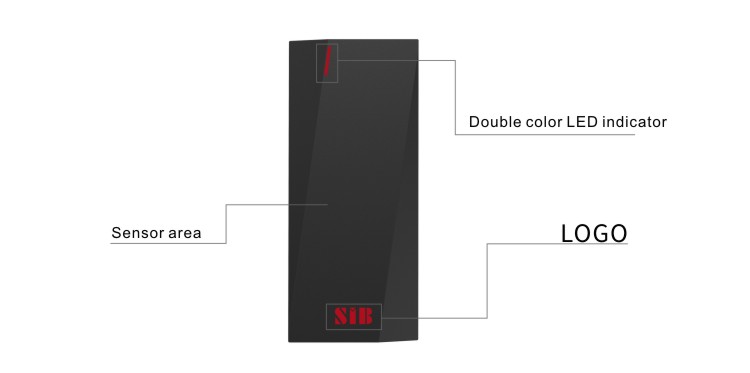

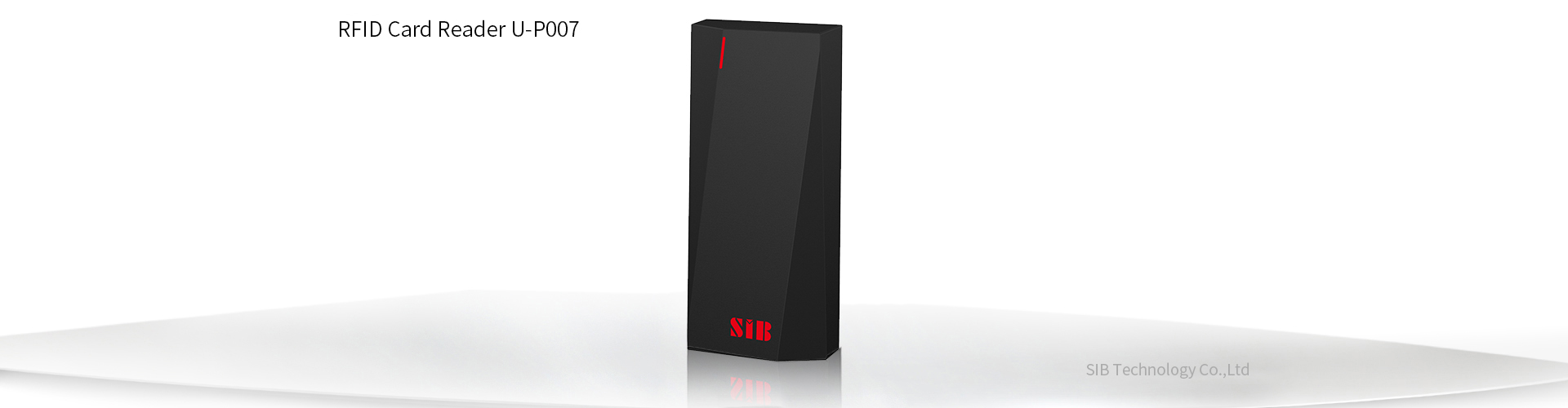

Product presentation
Material：Plastic case
Idle Current: ≤30mA
WG26 input and output
Door opening time less than 0.1S
Product Version
Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
U-P007EM
EM Card 125Khz
IP68
Outdoor Proximity Card Reader
SIB
U-P007MF
MF Card 13.56Mhz
IP68
Outdoor Mifare Readers
SIB
U-P007H
HID Card 125Khz
IP68
Waterproof HID Readers
Technical parameters
Card type：EM/MF

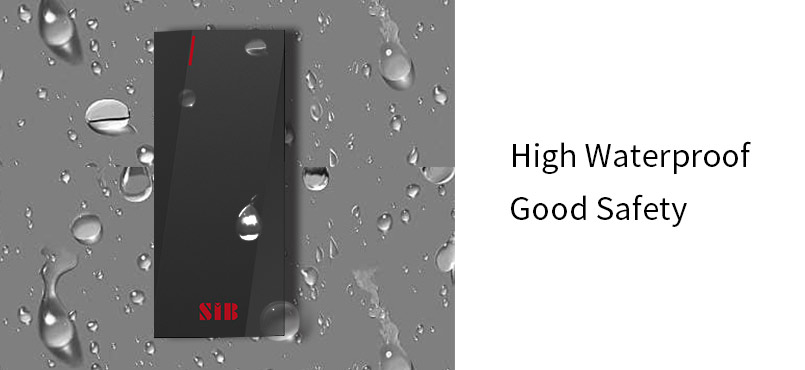

Waterproof degree：IP68
Environment Humidity：10%～90%
Ambient temperature：-40℃～60℃
Working voltage：DC12V
Static electricity：≤30mA

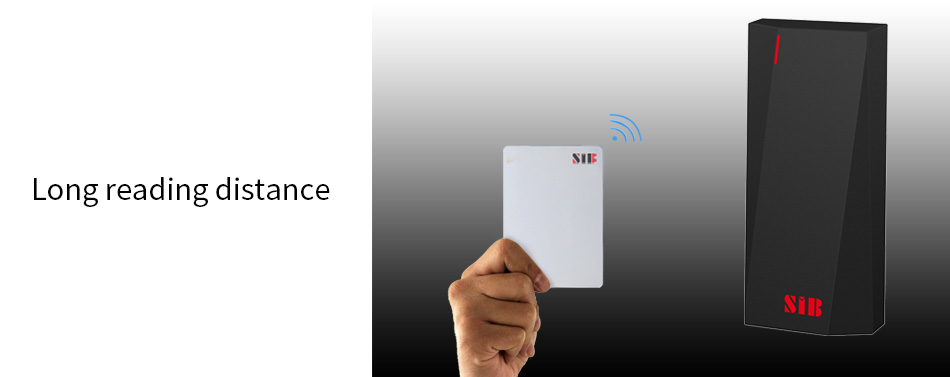

Card read distance：2～5cm
Dimension：109 *47*20mm
Package size

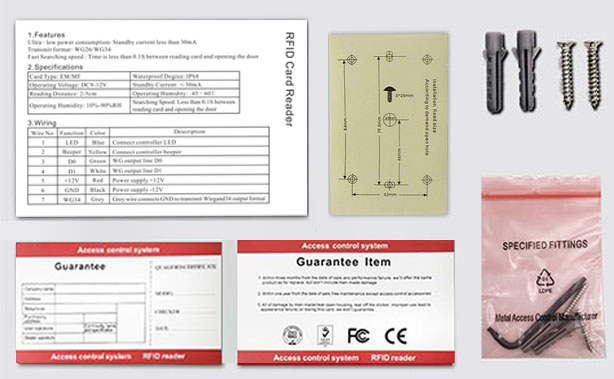

Packing list
Wiring Instruction
|
Wire No. |
Function |
Color |
Description |
| 1 |
LED |
Blue |
Connect controller LED |
| 2 |
Beeper |
Yellow |
Connect controller beeper |
| 3 |
D0 |
Green |
WG output line D0 |
| 4 |
D1 |
White |
WG output line D1 |
| 5 |
+12V |
Red |
Power supply +12V |
| 6 |
GND |
Black |
Power supply -12V |
Diagram
