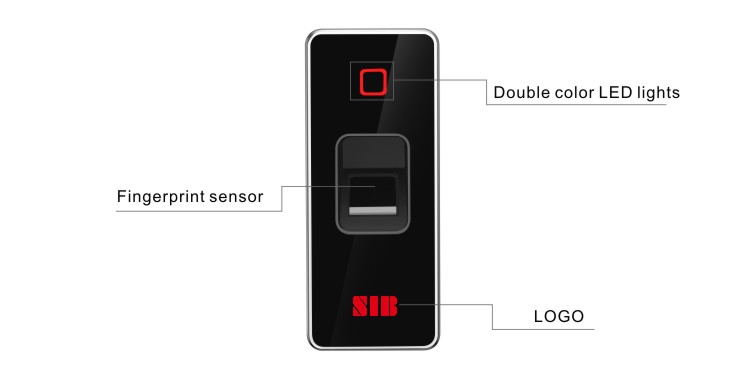

Product presentation
Plactic case
Fingerprint access controller and reader, WG26 Input / output
Capacity: 200 fingerprints and 500 cards
Two accesses: card, fingerprint
Product Version
|
Brand |
Model |
Card Type |
Waterproof Degree |
Product Name |
|
SIB |
F7EM |
EM Card 125Khz/Fingerprint |
Indoor |
Plastic Biometric Readers & Card Access Control |
|
SIB |
F7EM-W |
EM Card 125Khz/Fingerprint |
IP68 |
Plastic Fingerprint Readers & RFID Access Controler |
Technical parameters
Card type：ID
Plastic case
Environment Humidity：10%～90%
Lock output：≤1A
Working voltage：DC12V
Static electricity：≤30mA
Alarm output：≤20A
Output short circuit protection time：≤100μS
Card read distance：2～5cm
Ambient temperature：-40℃～60℃
Door Opening Time: 0～99s
Dimension：110 *46*28mm

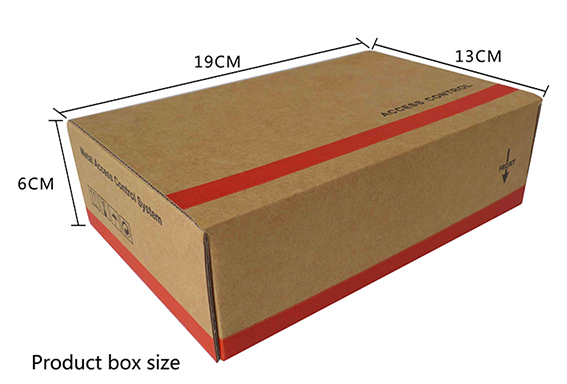

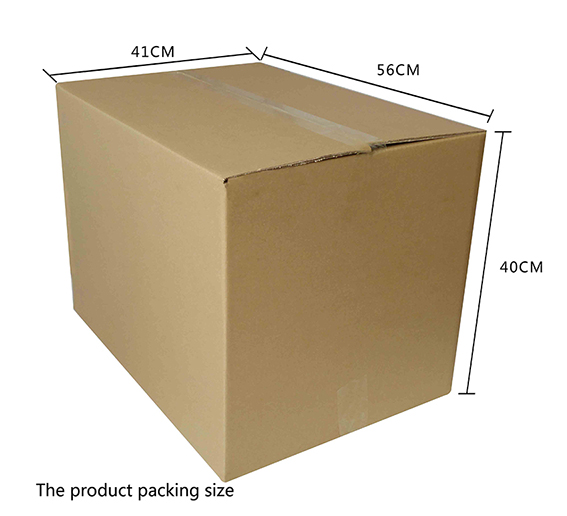

Package size

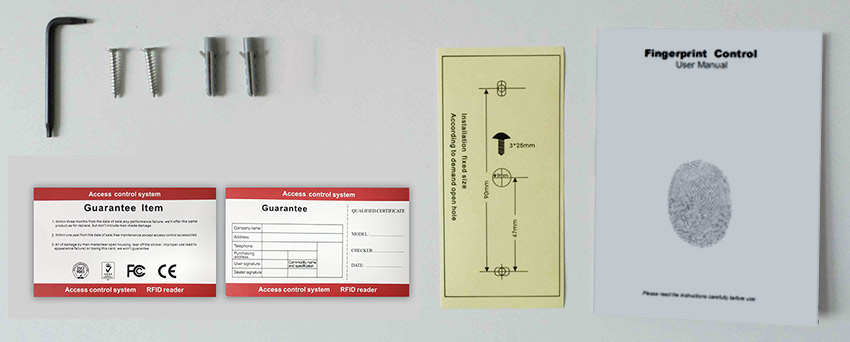

Packing List
