Product presentation
Metal case, anti-vandal

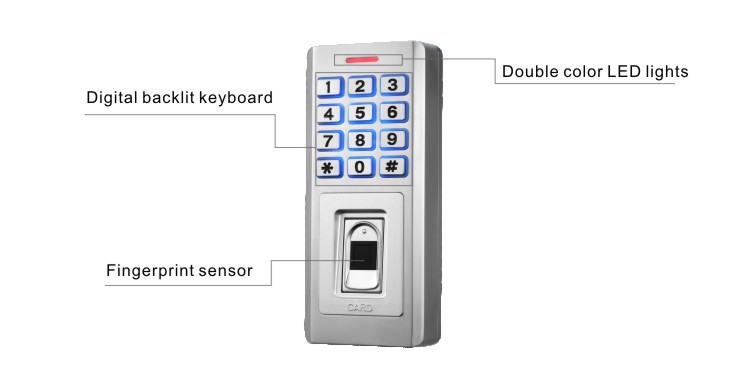

Digital backlit touch keypad
Multi-function standalone access controller and reader,

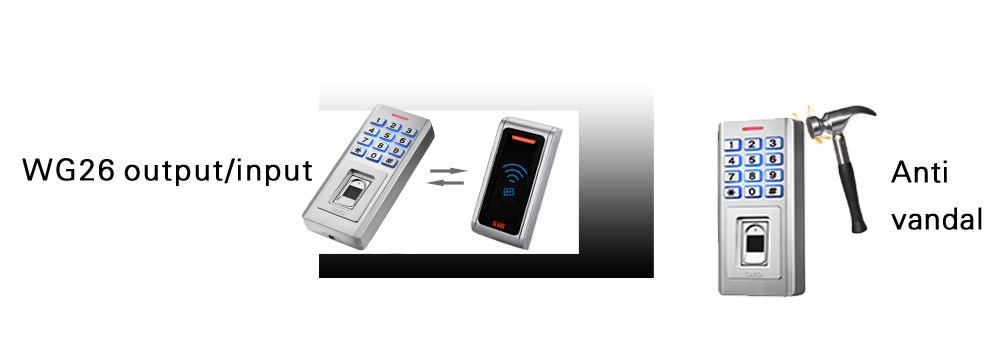

WG26 output/Input
Capacity: 10,000 cards/ codes&300fingerprints
Three way to open the door:card, code，fingerprint
Product Version
|
Brand |
Model |
Card Type |
Waterproof Degree |
Product Name |
|
SIB |
KF5EM |
EM Card 125Khz |
Indoor |
Metal Keypad RFID Access Fingerprint Access Control |
|
SIB |
KF5MF |
MF Card 13.56Mhz |
Indoor |
Metal Keypad Mifare Readeres & Fingerprint Access Control |
|
SIB |
KF5EM-W |
EM Card 125Khz |
IP68 |
Waterproof EM Tag Fingerprint Readers & Keypad Access Control |
|
SIB |
KF5MF-W |
MF Card 13.56Mhz |
IP68 |
Waterproof Mifare Card Biometric Readers & Code Access Control |
Technical parameters
Card type：EM/MF/HID/CPU
Capacity: 10000cards/codes&300fingerprints
Environment Humidity：10%～90%
Lock output：≤1A
Working voltage：DC12V
Static electricity：≤30mA
Alarm output：≤20A
Output short circuit protection time：≤100μS
Card read distance：2～5cm
Ambient temperature：-40℃～60℃
Door Opening Time: 0～99s
Dimension：129 *56*22mm

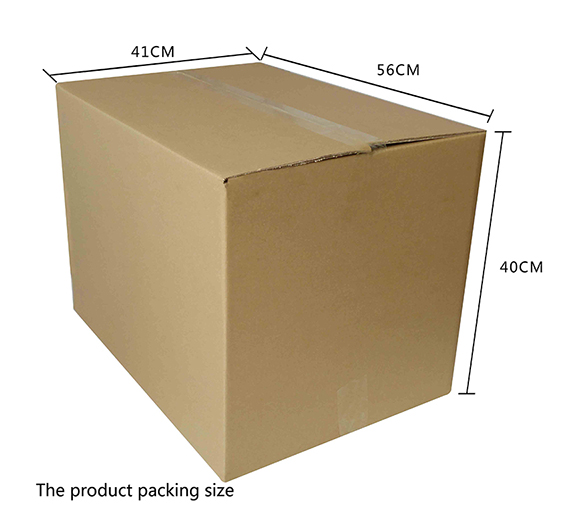

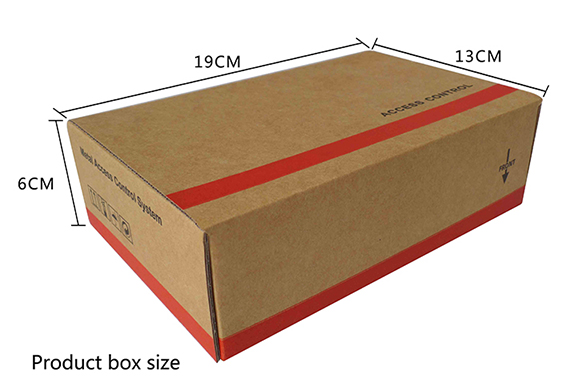

Package Size

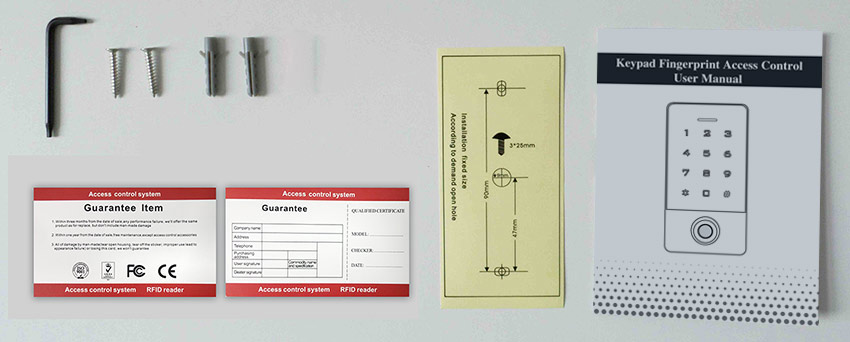

Packing List
