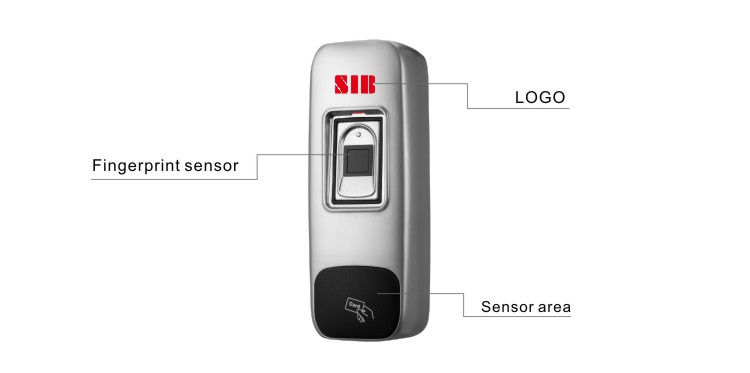

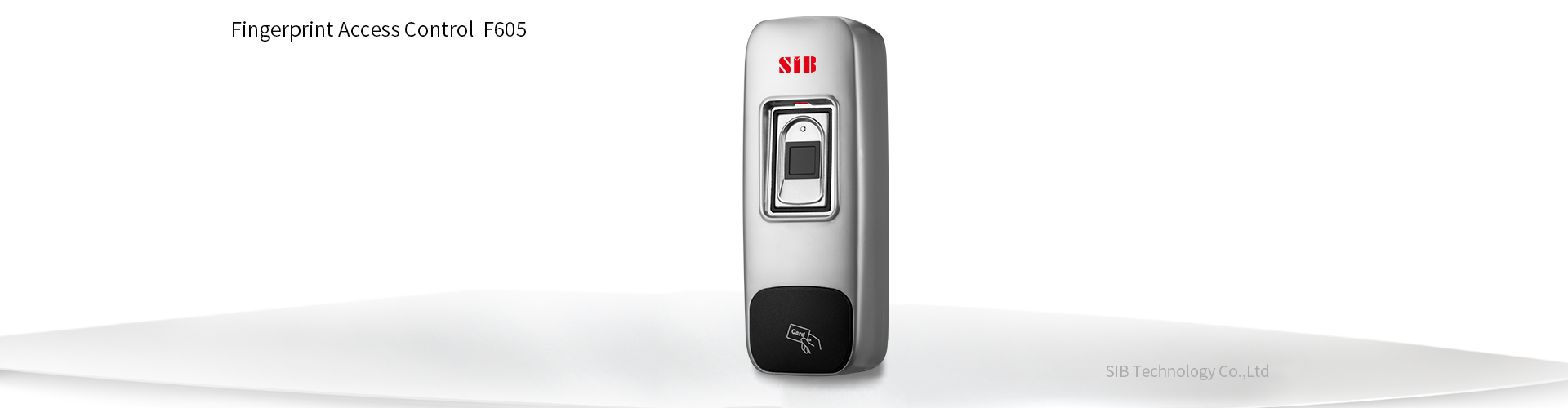

Product presentation
Semiconduct fingerprint reader

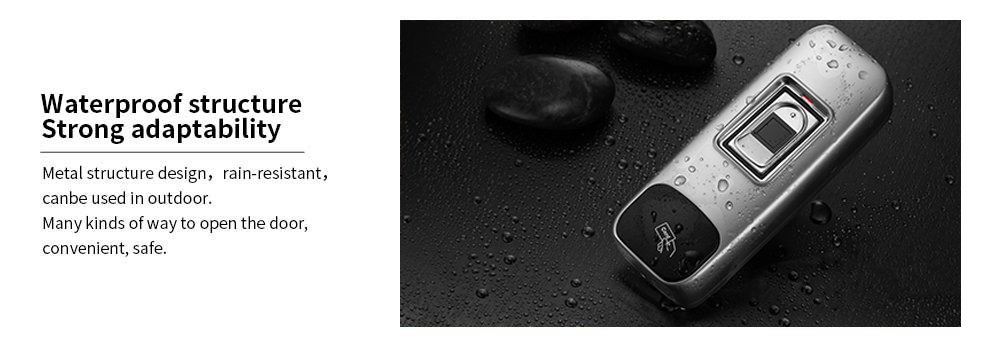

Metal case, anti-vandal
Waterproof degree:IP68

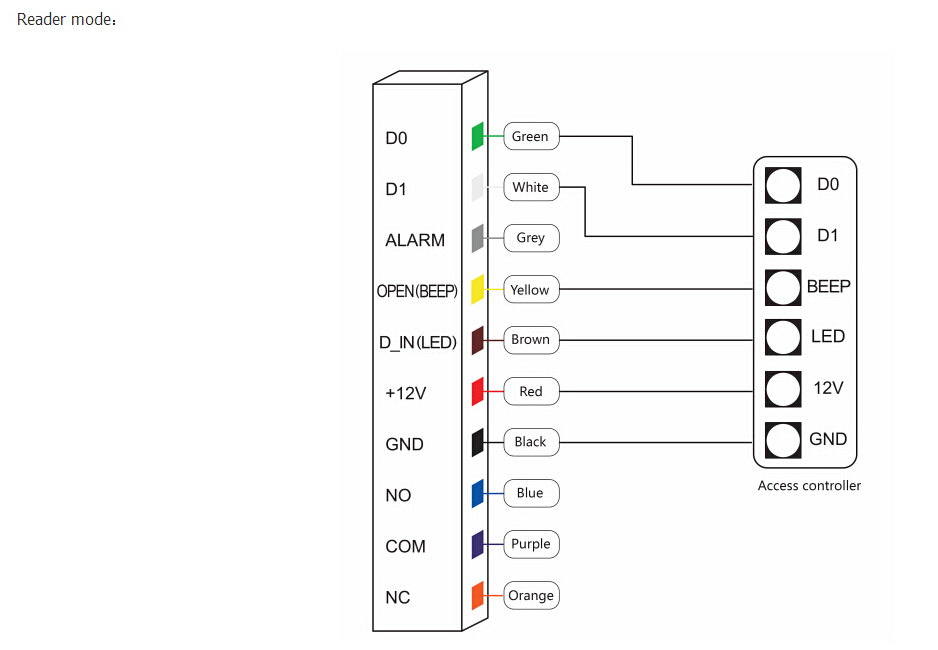

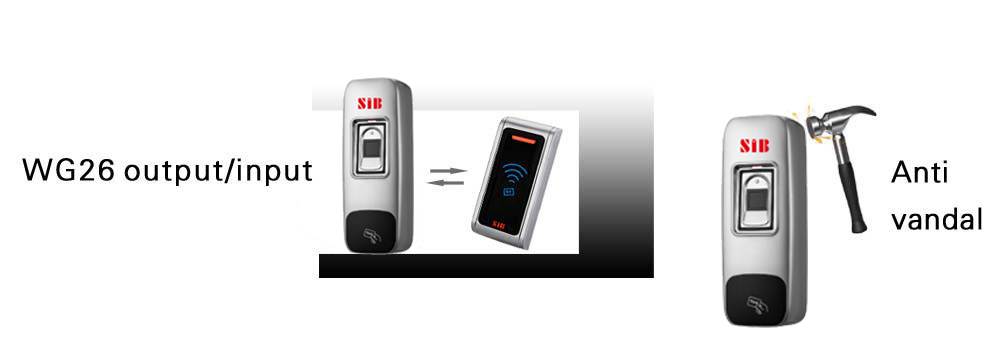

Fingerprint access controller and reader, WG26 Input / output
Capacity: 300 fingerprints and10,000 cards
Accesses ways: fingerprint ,card
Product Version
Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
F605EM
EM Card 125Khz/Fingerprint
Indoor
Semiconductor RFID Biometric Readers & Door Entrance
SIB
F605EM-W
EM Card 125Khz/Fingerprint
IP68
Outdoor Metal Access Control & Fingerprint Readers
Technical parameters
Card type：ID
Alarm Output Time：0~3min
Environment Humidity：10%～90%
Lock output：≤1A
Working voltage：DC12V
Static electricity：≤30mA
Alarm output：≤20A
Output short circuit protection time：≤100μS
Card read distance：2～5cm
Ambient temperature：-40℃～60℃
Door Opening Time: 0～99s
Dimension：118 *46*26mm

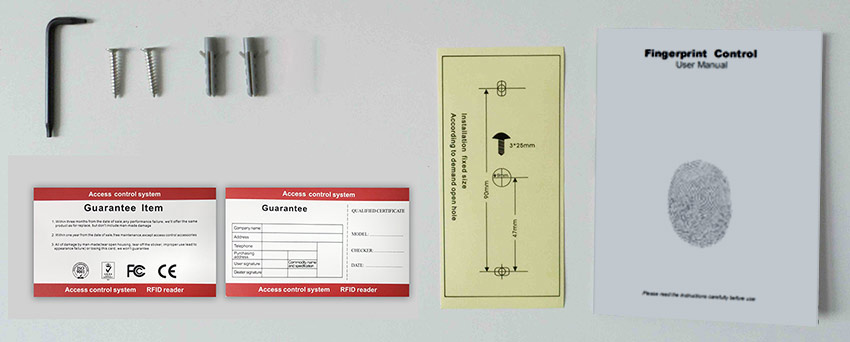

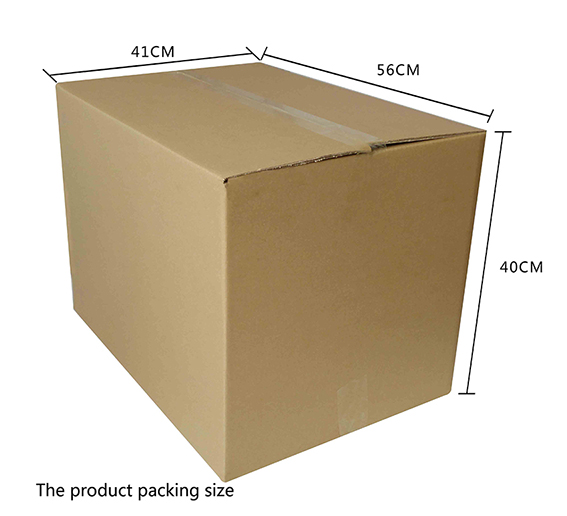

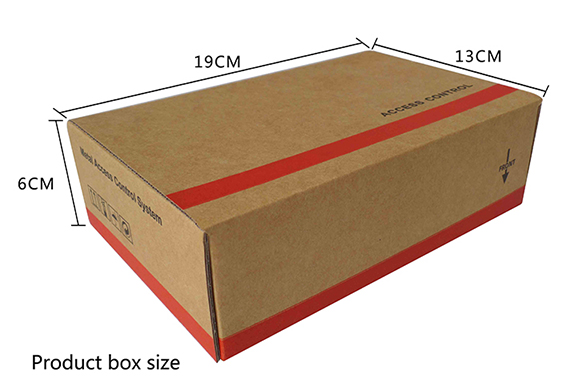

Packing List
