Product presentation
Waterproof Degree: IP68
Metal structure design, anti-vandal
Digital backlit keyboard
All-in-one, WG26 output/input
User capacity: 2000 card user card, 2000 user password
Three way to open the door, card, password, card + password
The doorbell button and interface: buttons and isolation circuit, connect to any external bell
Product Version
Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
S600EM
EM Card 125Khz
Indoor
EM Card Reader & Access Controller
SIB
S600MF
MF Card 13.56Mhz
Indoor
Mifare Keyfobs & Code Access Control
SIB
S600EM-W
EM Card 125Khz
IP68
Outdoor Proximity Card & Keypad Access Control
SIB
S600MF-W
MF Card 13.56Mhz
IP68
Outdoor Mifare Tag & Keypad Gate Entry
Technical parameters
Card type：EM/MF
Waterproof degree：IP68
Environment Humidity：10%～90%
Lock output：≤3A
Working voltage：DC12V
Static electricity：≤30mA
Alarm output：≤20A
Output short circuit protection time：≤100μS
Card read distance：2～5cm
Ambient temperature：-40℃～60℃
Door Opening Time: 0～99s
Dimension：120 *56*20mm

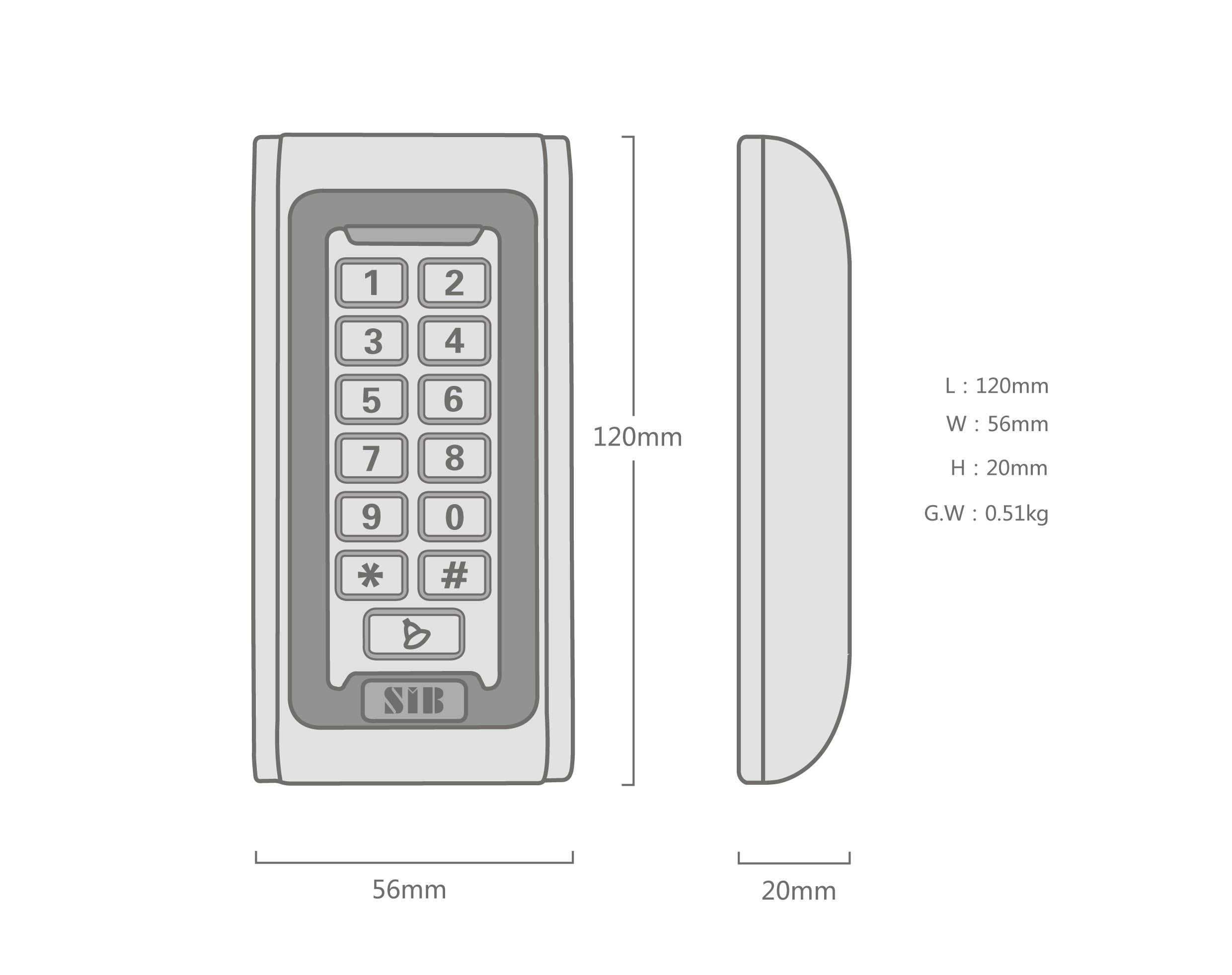

Size & Weight
Package size

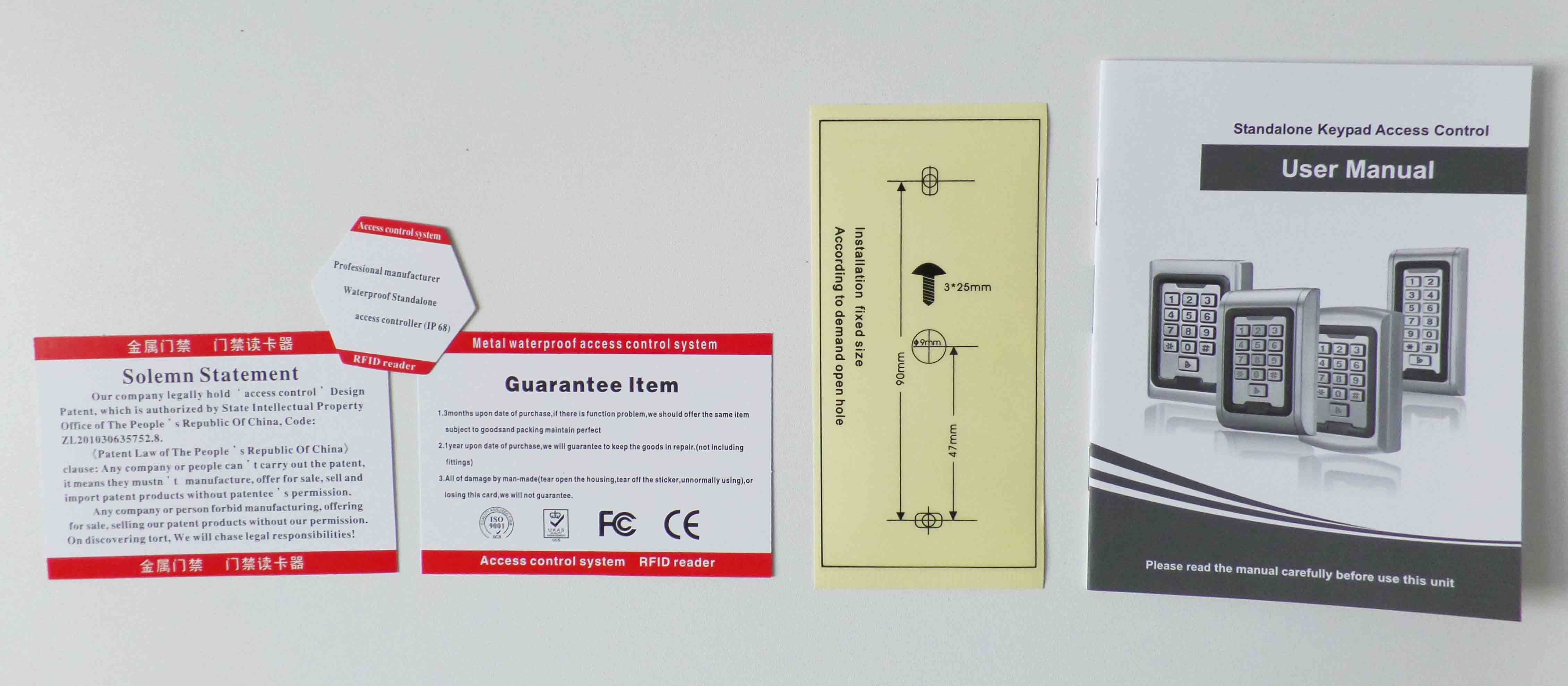

Packing list

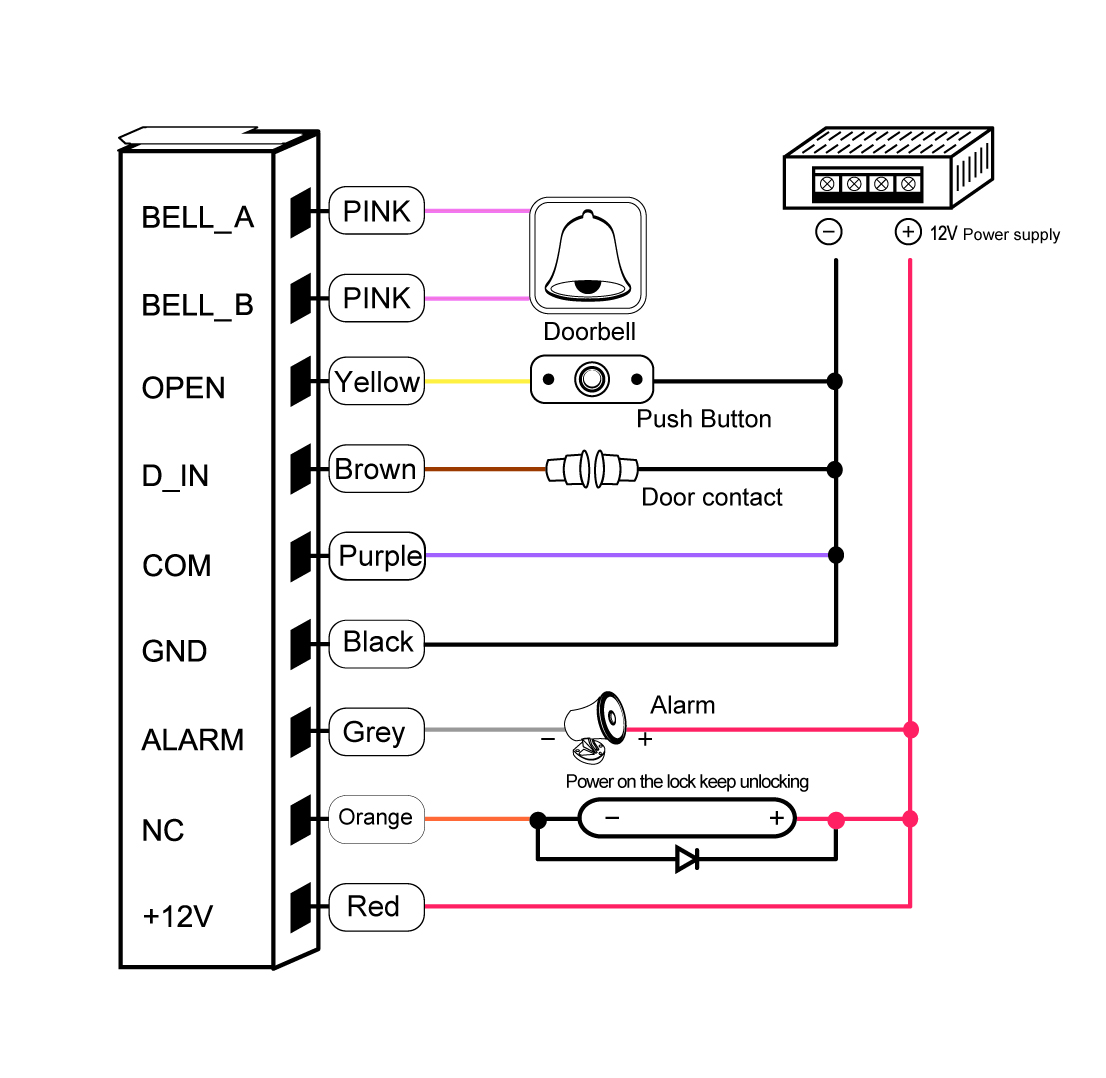

Common power supply diagram

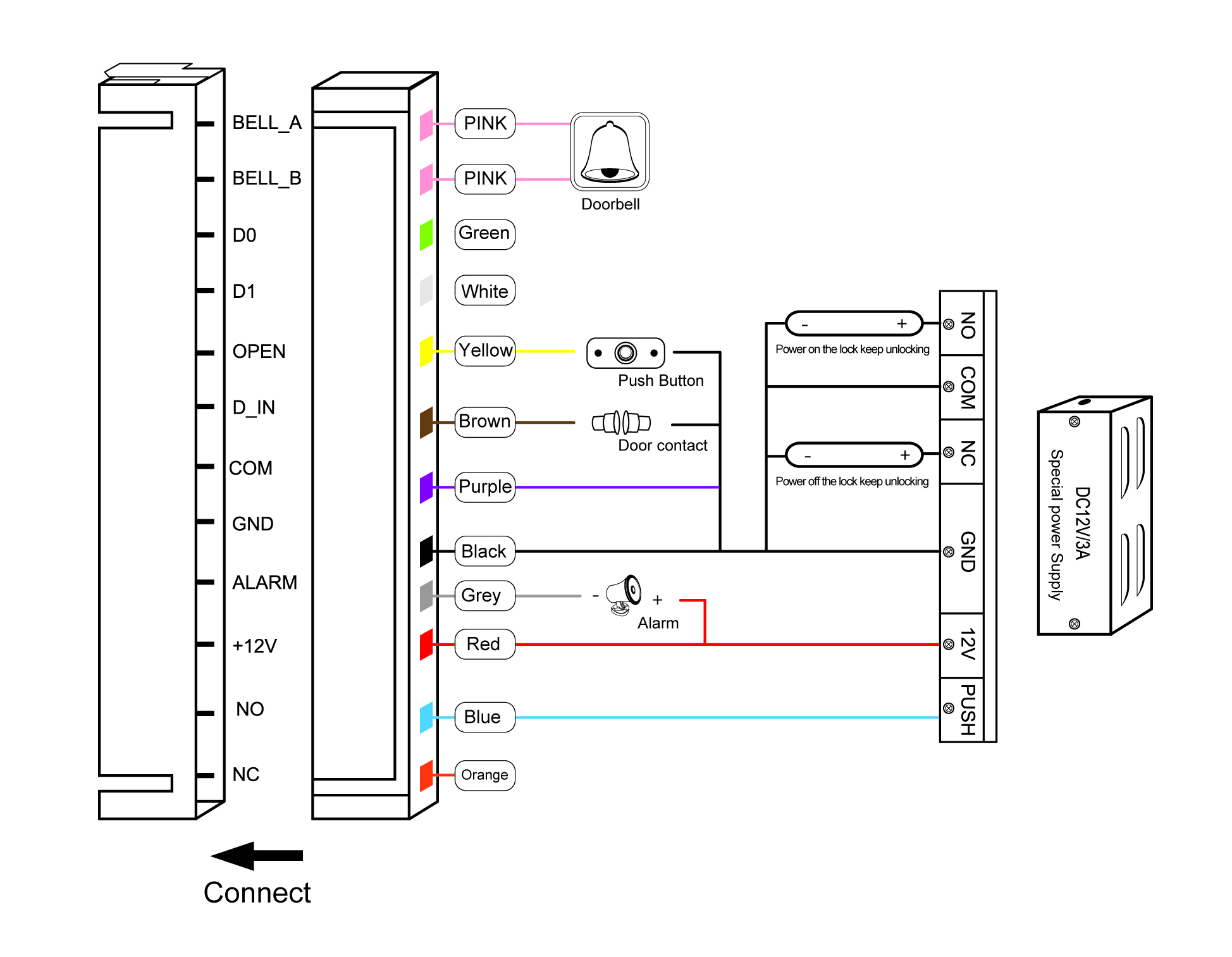

Special power supply diagram
