Brand |
Model |
Card Type |
Waterproof Degree |
Product Name |
| SIB |
R1EM |
EM Card 125Khz |
IP68 |
Wiegand26/34 Waterproof Mini Reader |
|
SIB |
R1MF |
MF Card 13.56Mhz |
IP68 |
Wiegand26/34 Outdoor Door card Reader |
|
SIB |
R1H |
HID Card 125Khz |
IP68 |
Wiegand26/34 Outdoor Access Card Reader |
Technical parameters
Card type：EM
Waterproof degree：IP68
Environment Humidity：10%～90%
Ambient temperature：-45℃～60℃
Working voltage：DC12V
Static electricity：≤30mA

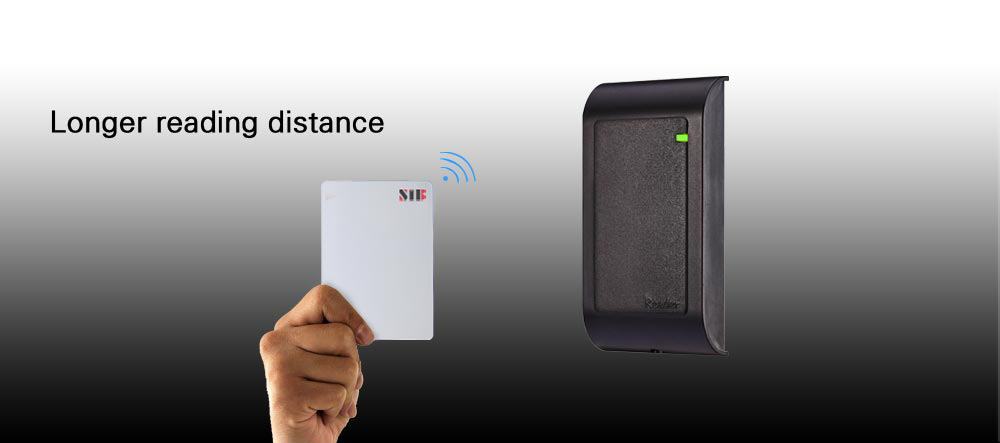

Card read distance：3～6cm

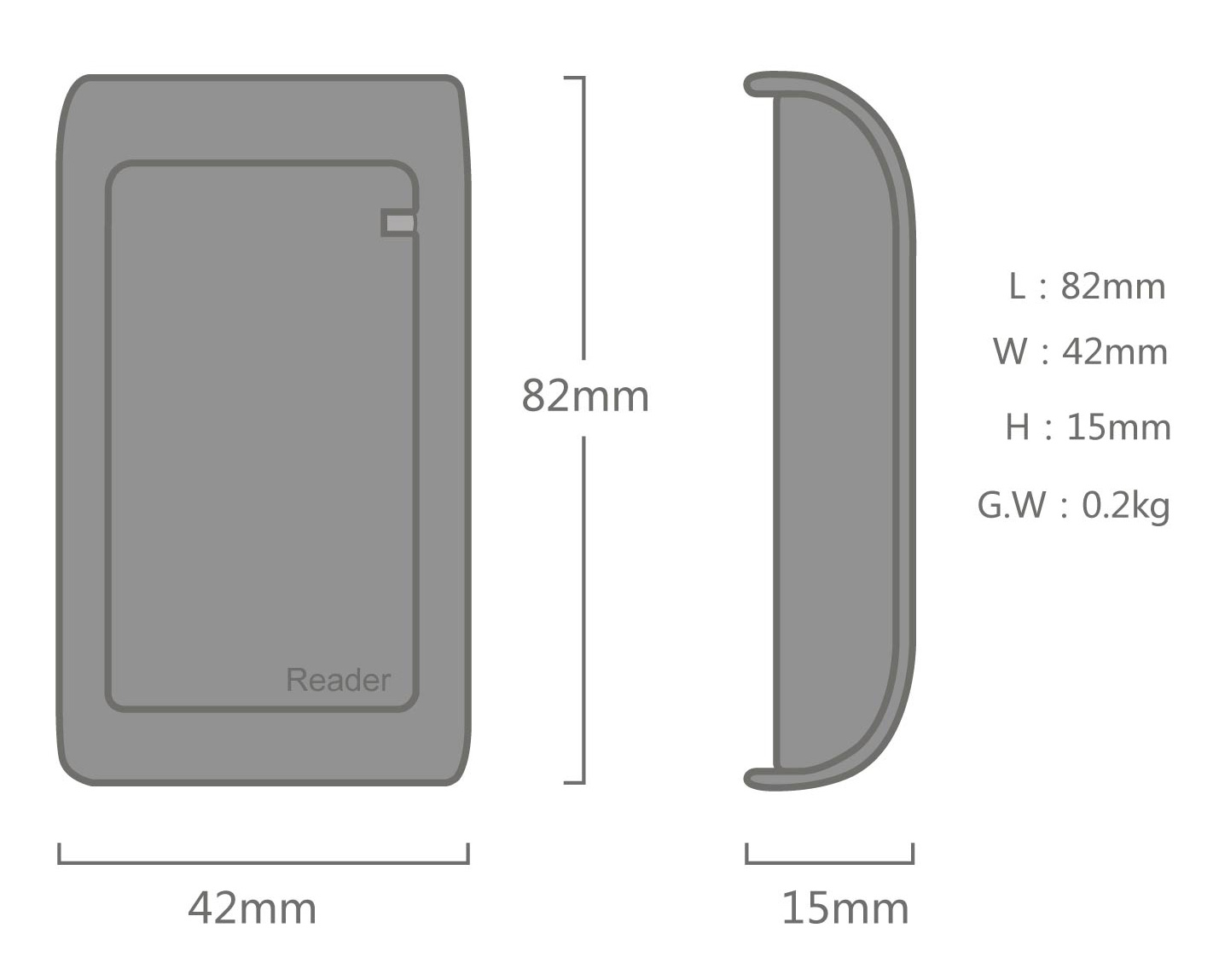

Dimension：82 *42*15mm
Size & Weight

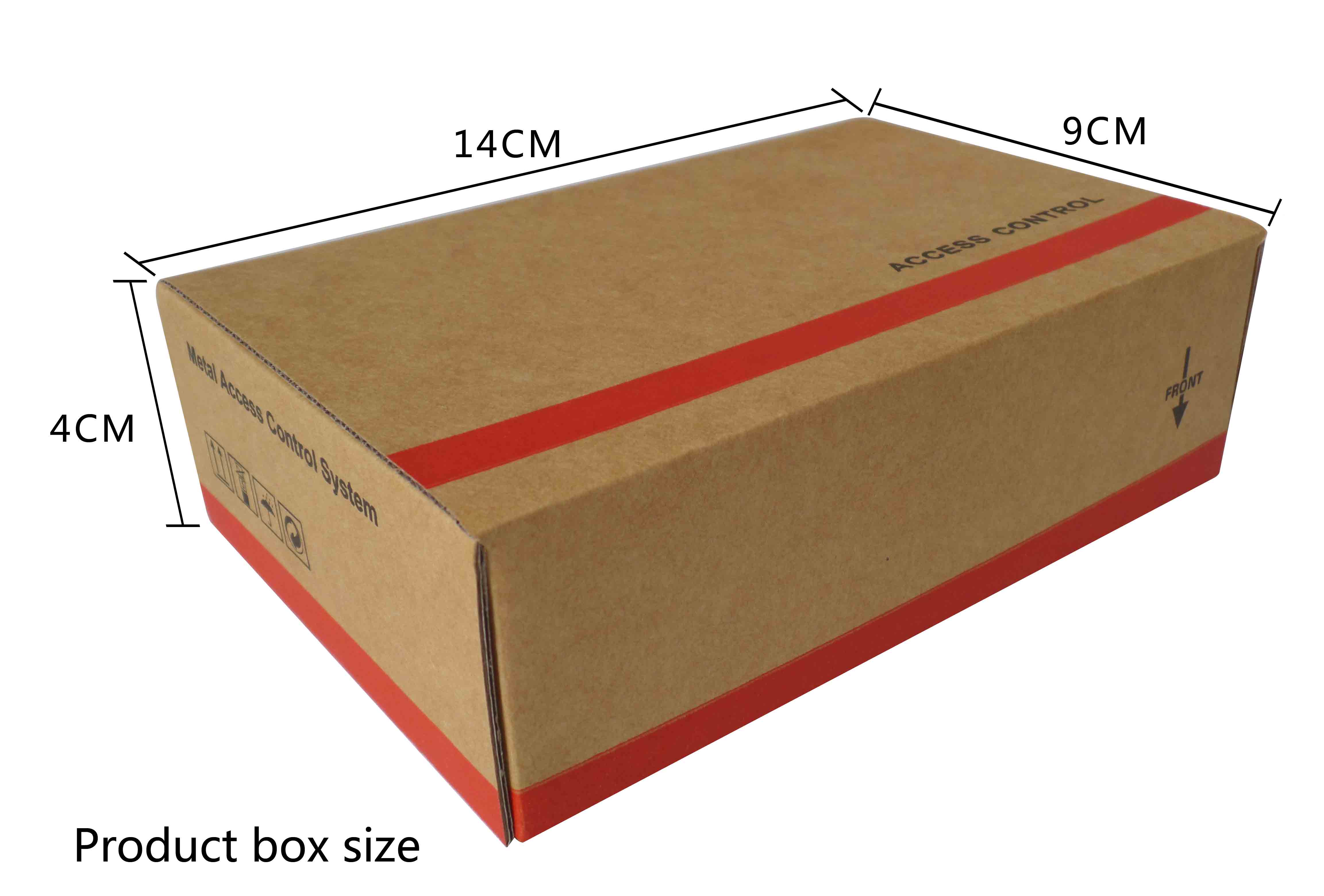

Package size

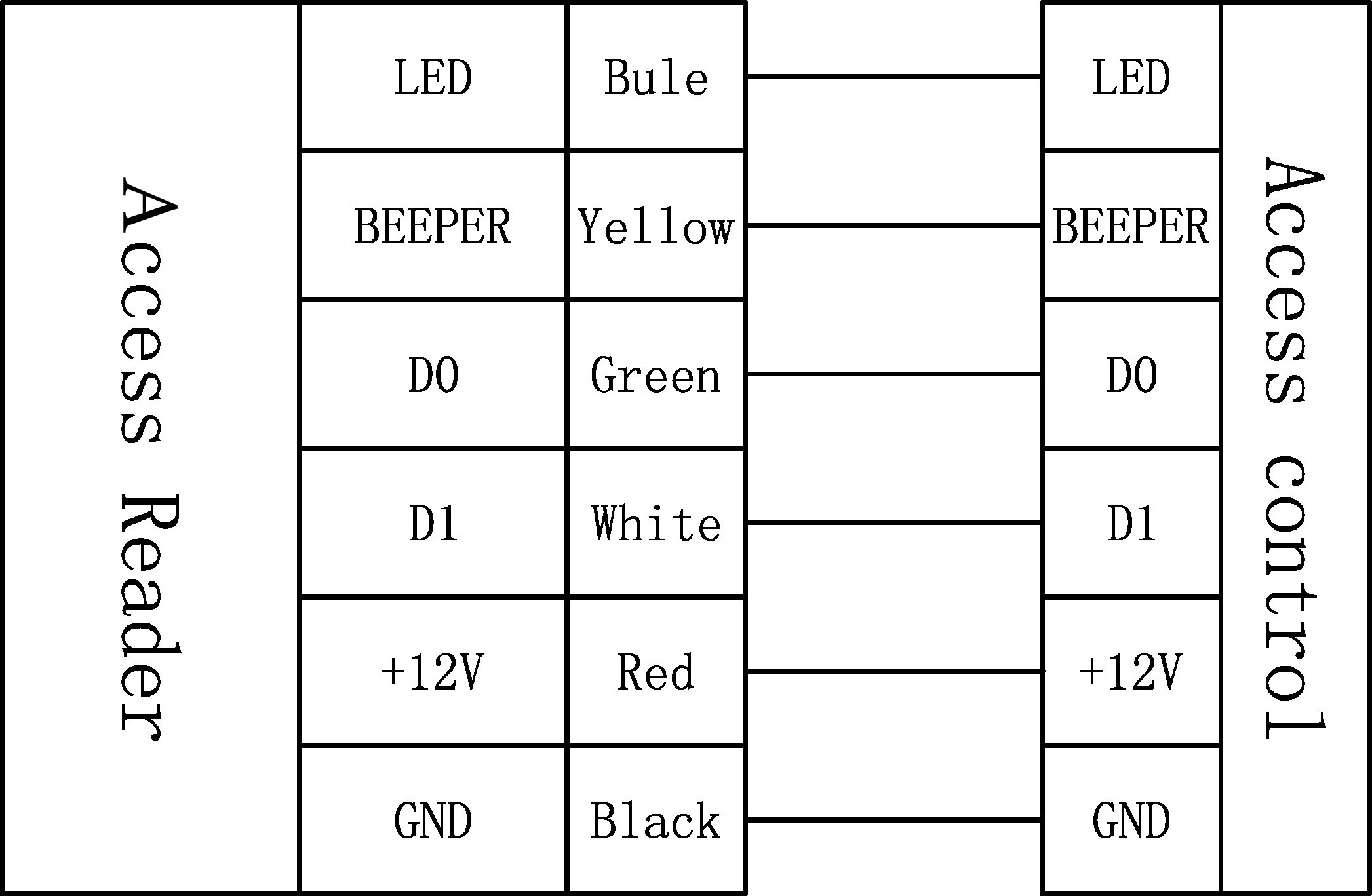

Wiring Instruction
|
Wire No. |
Function |
Color |
Description |
| 1 |
LED |
Blue |
Connect controller LED |
| 2 |
Beeper |
Yellow |
Connect controller beeper |
| 3 |
D0 |
Green |
WG output line D0 |
| 4 |
D1 |
White |
WG output line D1 |
| 5 |
+12V |
Red |
Power supply +12V |
| 6 |
GND |
Black |
Power supply -12V |

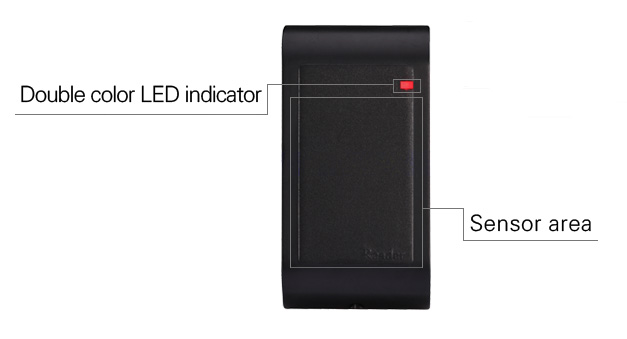

Diagram
