Product presentation
Plastic case, anti-vandal

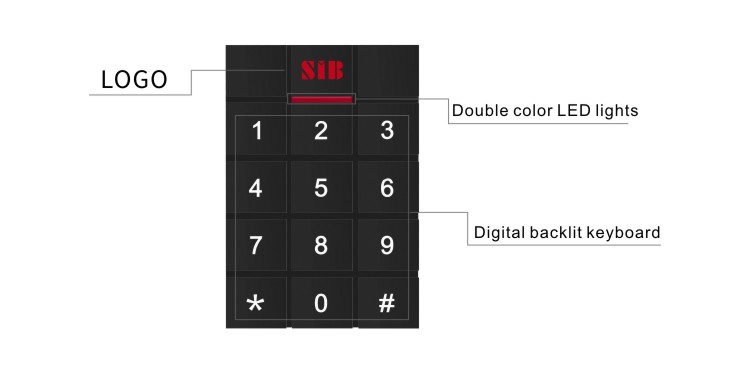

Digital backlit touch keypad
Multi-function standalone access
controller and reader,

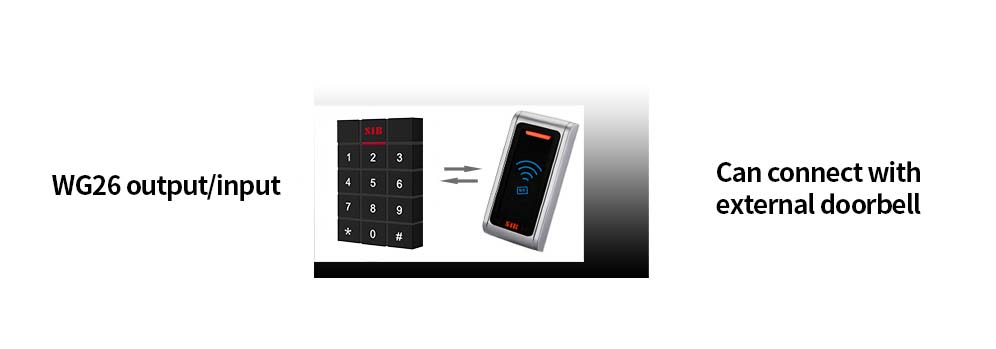

WG26 output/Input
Capacity: 2000 cards/ codes
Three way to open the door:
card, password, card + password
Product Version
Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
T11EM
EM Card 125Khz
Indoor
Card Access & Keypad Access Control
SIB
T11EM-W
EM Card 125Khz
IP68
RFID Card & PIN Access Control
Technical parameters
Card type：EM/MF
Capacity: 2,000
Environment Humidity：10%～90%
Lock output：≤1A
Working voltage：DC12V-24V
Static electricity：≤30mA Alarm output：≤20A
Output short circuit protection time：≤100μS
Card read distance：2～5cm
Ambient temperature：-45℃～60℃
Door Opening Time: 0～99s

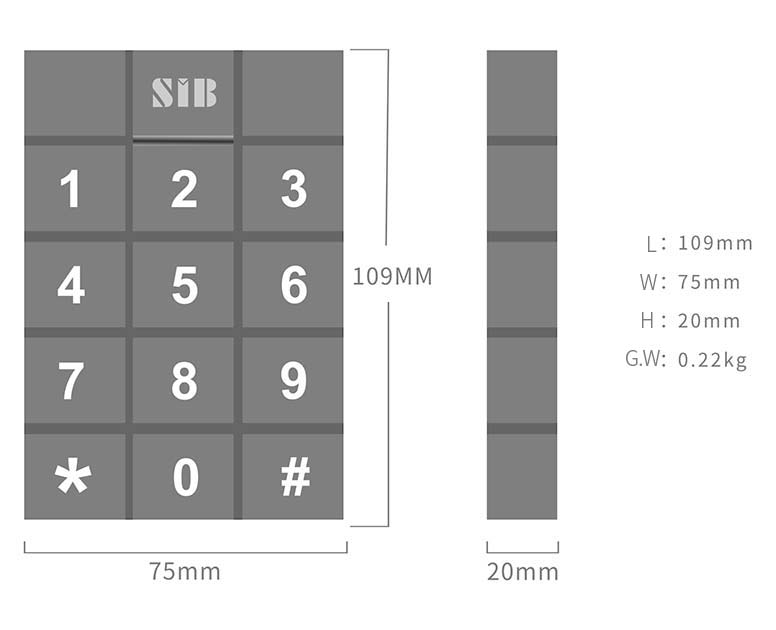

Dimension：109*75*20mm
Size & Weight
Package size

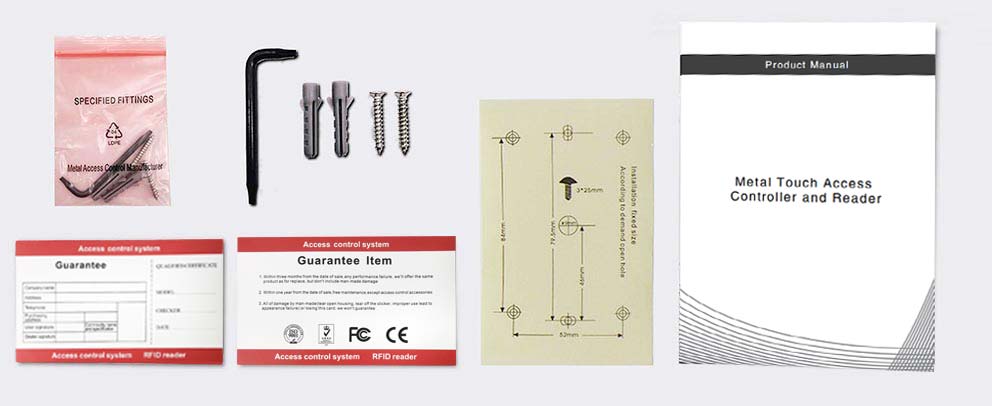

Packing list
Common power supply diagram
Special power supply diagram
